| BASIC INFORMATION | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, |
|
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
|
| BIOS | 1 x 256 Mbit flash |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Basic Information | ||
| Type | DDR5 | |
| Memory | ||
| Slots | 4 | |
| Supported Memory | <p>Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules<br />Dual channel memory architecture<br />Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br />Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br />Support for Extreme Memory Profile (XMP) memory modules</p> |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Supported Storage | CPU: |
|

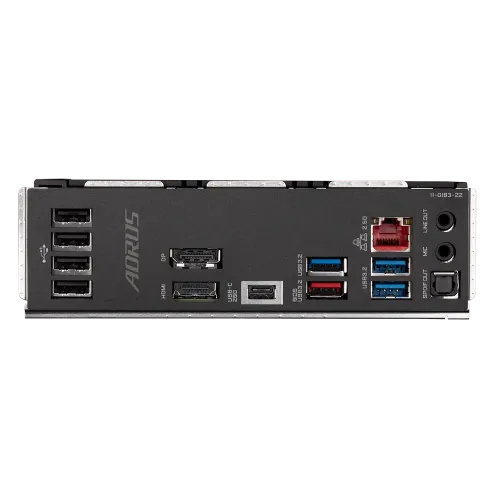

| Internal I/O Ports | 1 x 24-pin ATX main power connector |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

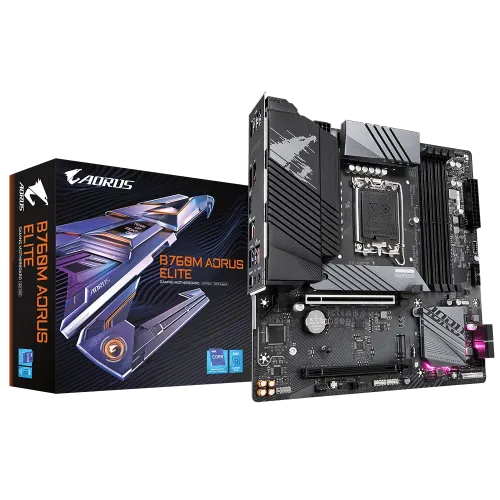

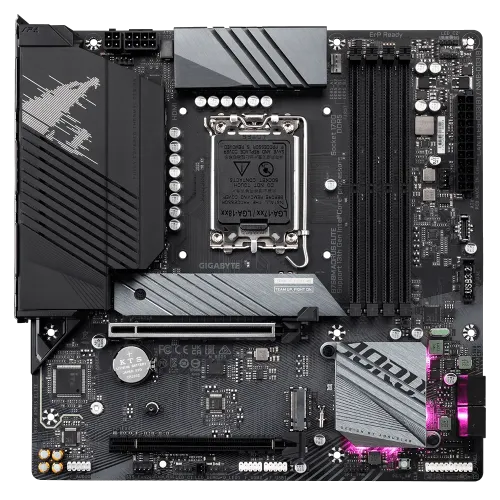

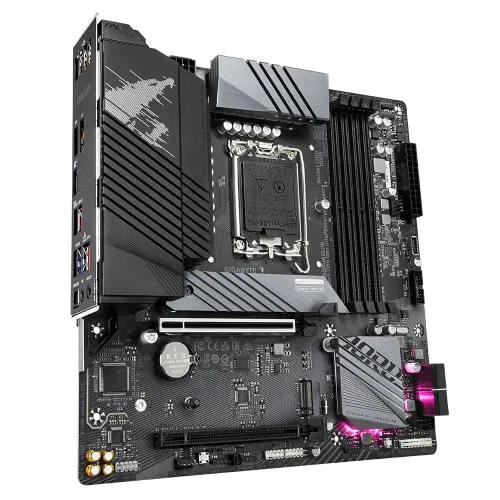

The GIGABYTE B760M AORUS ELITE Motherboard is a performance and feature powerhouse intended for Intel Socket LGA 1700 processors, with support for 14th, 13th, and 12th generation Intel Core CPUs. The Twin 12*+1+1 Phases Digital VRM Solution on this motherboard is its highlight feature, providing steady and efficient power supply for better performance and overclocking capabilities. It also features 4*SMD DIMM slots with XMP 3.0 Memory Module compatibility for enhanced multitasking and gaming performance. The Motherboard includes two PCIe 4.0 x4 M.2 ports, allowing for high-speed NVMe SSDs for fast data access and startup times. An M.2 Thermal Guard is included in the advanced thermal design to enable appropriate cooling for VRM components and M.2 SSDs, reducing thermal throttling. The EZ-Latch Plus M.2 Connectors have a quick-release and screwless design that allows for simple SSD installation and changing. It has a 2.5GbE LAN connector for lightning-fast network access, as well as a variety of connectivity choices such as front USB-C 10Gb/s and rear USB-C 20Gb/s ports, as well as DP and HDMI display capabilities. The Smart Fan 6 system has numerous temperature sensors and hybrid fan headers, as well as a FAN STOP feature, to optimize cooling and reduce noise. Finally, the Q-Flash Plus function enables BIOS upgrades without the need to install the CPU, RAM, or graphics card, greatly simplifying the update procedure. In conclusion, the GIGABYTE B760M AORUS ELITE Motherboard has an excellent set of features as well as top-tier performance, appealing to gamers, content makers, and power users alike.
