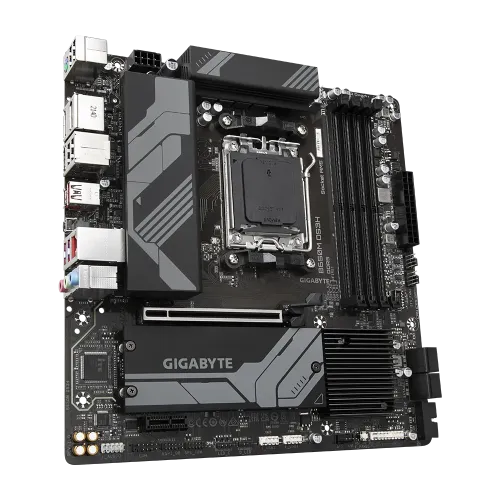

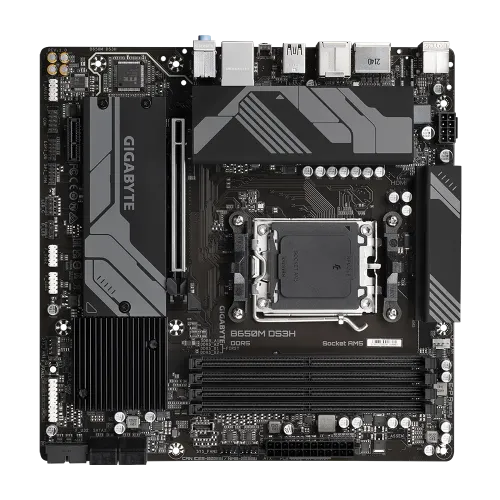

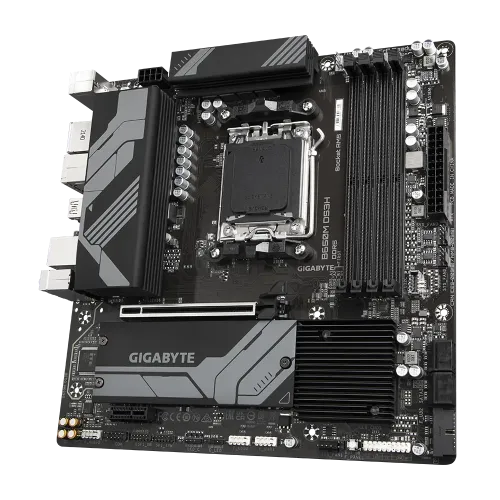

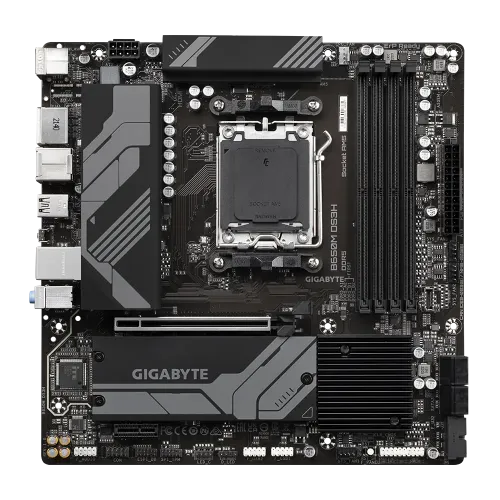

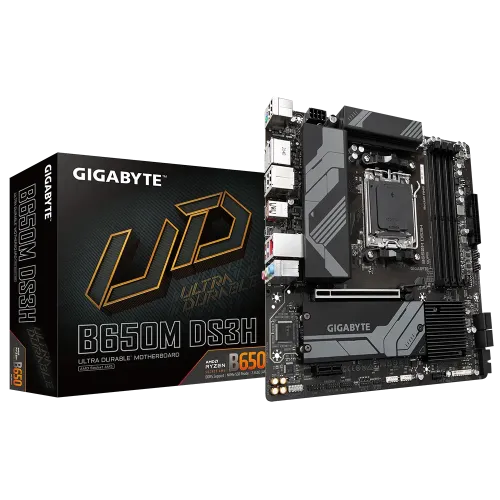

The GIGABYTE B650M DS3H is a value-oriented Micro-ATX motherboard designed for the AMD AM5 socket. It serves as an entry point for users looking to build a modern system using Ryzen 7000, 8000, or 9000 series processors without the premium price tag of X670 or high-end B650 boards.
Socket & Chipset: AMD AM5 / B650 Chipset.
Memory: 4x DDR5 DIMM slots, supporting up to 256GB (with 64GB modules) and overclocked speeds exceeding 8000 MT/s.
Expansion: 1x PCIe 4.0 x16 slot (featuring EZ-Latch for easy GPU removal) and 1x PCIe 3.0 x1 slot.
Storage: 2x M.2 PCIe 4.0 x4 connectors (one with an enlarged Thermal Guard) and 4x SATA 6Gb/s ports.
Despite its budget positioning, the board features a robust 6+2+1 phase digital VRM solution with 60A Smart Power Stages. This allows it to handle mid-to-high-range Ryzen CPUs effectively. Cooling is managed via dedicated VRM heatsinks and Smart Fan 6 technology, which includes multiple temperature sensors and hybrid fan headers.
Networking: 2.5GbE LAN for high-speed wired internet (note: this model typically lacks built-in Wi-Fi).

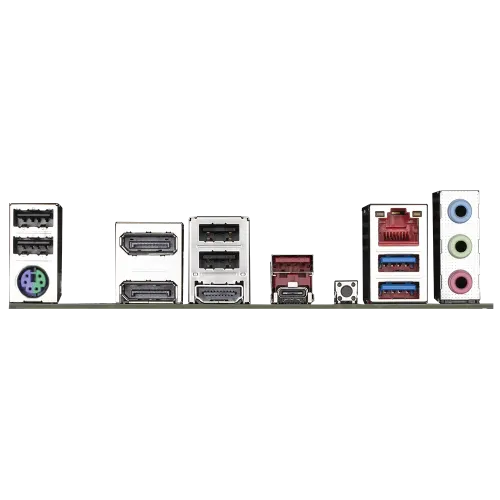

Rear I/O: Includes 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, 2x DisplayPort, and 1x HDMI 2.1 (supporting 4K/60Hz).
Q-Flash Plus: Allows for BIOS updates using only a USB drive and power supply—no CPU or RAM required.
The B650M DS3H is ideal for budget-conscious builders focusing on productivity or gaming. While it lacks PCIe 5.0 and integrated Wi-Fi, its solid VRM performance and DDR5 support make it a future-proof foundation for the AM5 platform.
