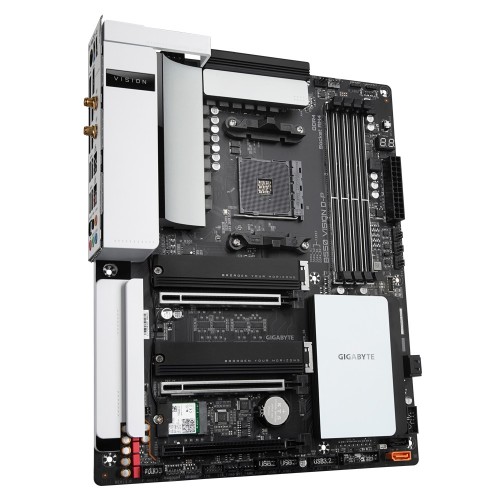

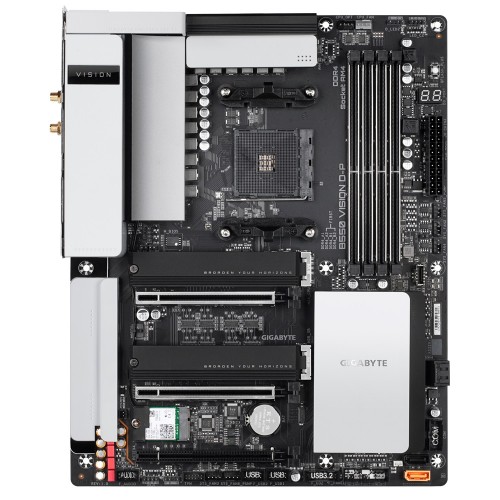

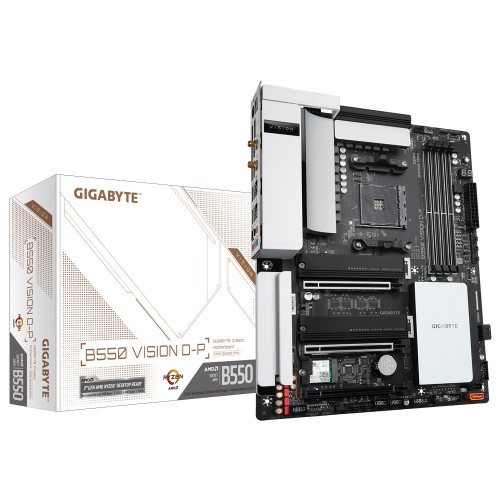

Gigabyte B550 VISION D-P AM4 ATX Motherboard

Gigabyte B550 VISION D-P AM4 ATX Motherboard
Gigabyte B550 VISION D-P AM4 ATX Motherboard
Gigabyte B550 VISION D-P AM4 ATX Motherboard
Gigabyte B550 VISION D-P AM4 ATX Motherboard
Gigabyte B550 VISION D-P AM4 ATX Motherboard
Gigabyte B550 VISION D-P AM4 ATX Motherboard
Gigabyte B550 VISION D-P AM4 ATX Motherboard
Gigabyte B550 VISION D-P AM4 ATX Motherboard
ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash - 01973167989 / Nagad - 01912167988) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন। প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন । প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদের কে কল করুন (01973167985 / 01673991833) অথবা আমাদের ফেইসবুক পেজে মেসেজ করুন।
Gigabyte B550 VISION D-P AM4 ATX Motherboard
Product code
4565
Brand
Gigabyte
Product model Gigabyte B550 VISION D-P AM4 ATX Motherboard
Warranty 03 years
Total Reviews

Upcomming

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset AMD B550
Audio Realtek ALC1220-VB codec
Support for DTS:X Ultra
High Definition Audio
2/ 4/ 5.1/ 7.1-channel
Support for S/PDIF Out
CPU AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors/ 3rd Generation
AMD Ryzen with Radeon Graphics processors
BASIC INFORMATION
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory
Memory Type: DDR4
Slots: 4 x DIMM slots
Supported Memory:
AMD Ryzen 5000 series processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) /
4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz
memory modules
3rd Gen AMD Ryzen Processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) /
4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz
memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) /
4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/
2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory:
Up to 128GB (32 GB single DIMM capacity)
Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key,
type 2242/ 2260/ 2280/ 22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and
PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M
key, type 2242/ 2260/ 2280/ 22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Graphics
Graphics Graphics:
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors +
Intel Thunderbolt 3 Controller:
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort
and Thunderbolt video outputs and a maximum resolution of 5120 x 2880
@60 Hz with 24 bpp
* Because of the limited I/O resources of the PC architecture, the number of
Thunderbolt devices that can be used is dependent on the number of the
PCI Express devices being installed. (Refer to Chapter 1-6, "Back Panel
Connectors," for more information.)
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory:
16 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
LAN Intel 2.5GbE LAN chip (2.5 Gbit/ 1000 Mbit/ 100 Mbit) (LAN1)
Realtek 2.5GbE LAN chip (2.5 Gbit/ 1000 Mbit/ 100 Mbit) (LAN2)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x SATA DOM power connector
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button

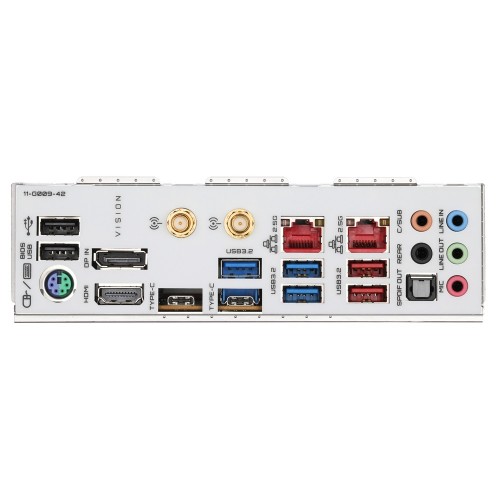

USB Port 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort
and Thunderbolt video outputs and a maximum resolution of 5120 x 2880
@60 Hz with 24 bpp
Integrated in the CPU:
3 x USB 3.2 Gen 1 ports on the back panel
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset + Intel Thunderbolt 3 Controller:
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal
USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
1 x USB 2.0/1.1 port on the back panel
Chipset + 2 USB 2.0 Hubs:
5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the
internal USB headers)
WARRANTY INFORMATION
Manufacturing Warranty 03 Years

Gigabyte B550 VISION D-P AM4 ATX Motherboard

GIGABYTE VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It’s the perfect fit for DIY creators to build their own ideal machine.

Reliability

Error Correction Code (ECC) memory corrects errors in your data as it passes in and out of memory to ensure reliability for critical applications. Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution. NVIDIA QUADRO 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

Powerful I/O

GIGABYTE Thunderbolt™ motherboards allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 40Gbps data pipeline that includes both PCIe and DisplayPort traffic. It redefines desktop PC connectivity to make it far easier to connect multiple high-speed storage devices and HD displays to your PC than ever before.

Flawless Connectivity

With both LAN ports designed, you’ll benefit from increased bandwidth for speed, automated load balancing for smoother data flow, and instant failover if anything goes wrong. Adoption of dual 2.5G Ethernet provides an immediate boost to overall network performance, and greatly improves the bandwidth required at large file transfers, video editing, and professional workloads. Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections, and speeds up to 2.4Gbps. Wi-Fi 6 is designed to improve speed, increase efficiency, and reduce congestion in heavy bandwidth usage scenarios. The back panel of B550 VISION D-P features with USB 3.2 Gen2 ports design, which is twice the bandwidth compared to its previous. Be enjoying ultimate connection flexibility and brilliant transfer speeds of up to 10Gbps. Front-panel header with USB 3.2 Gen1 connectivity is ready for compatible devices.

Stay Cool

Effective cooling solution is essential for a heavy design workload to get away with slow down, crashes, and unexpected shutdown. Unconventional Heatsinks is designed for better thermal dissipation but also aesthetically appealing to creators. Iconic curved heatsink covers the hottest VRM area to ensure efficient power delivery for stable performance. Creators transfer larger file with un-throttled storage performance by efficient M.2 heatsinks. Eight hybrid fan headers and numerous temperature sensors are planted on the motherboard to monitor in real time and configure fan mode to fit different workloads via Smart Fan 5. Creators are allowed to set the trigger point to activate the fan and its corresponding speed. The fan completely stops when performing light tasks to avoid noise.

Future Bandwidth

For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 hardware design. From PCB, several new IC to device connectors, everything that the PCIe 4.0 signal goes is a completely new generation, to make sure your content creation PC is future proof. Content creators workflows constantly involve huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD.

Ultra Storage

M.2 Drives keep the load times away. Breaking the barriers of SATA limitations. M.2 PCIe SSD gives you X7 faster data transferring experience compared to 2.5″ SATA solid state drives. M.2, the latest storage technology. GIGABYTE M.2 solution offers considerably faster storage performance and provides an ideal storage with RAID modes. To feature PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors for offering the best compatibility in terms of NVMe storage for creators who demand high capacity and seek the best performance. With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. This unique M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

Amazing Sound

DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting new level.
