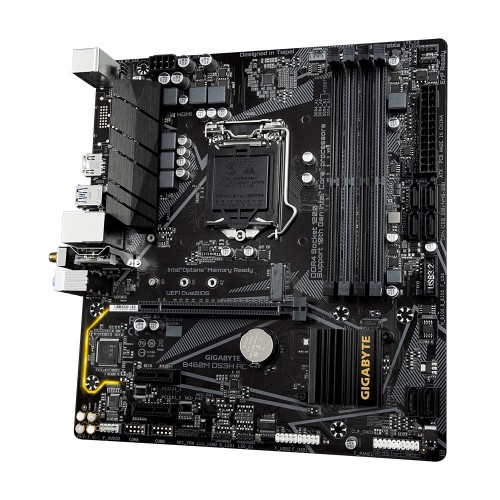

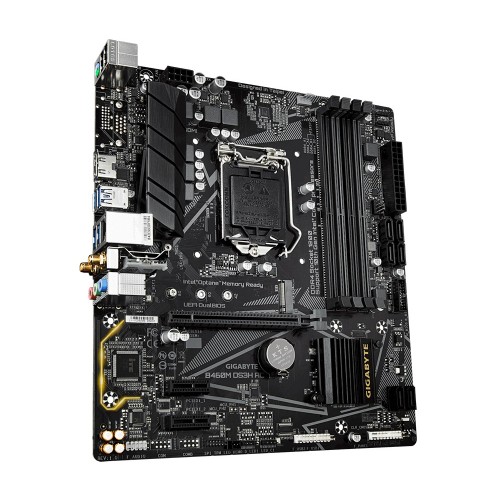

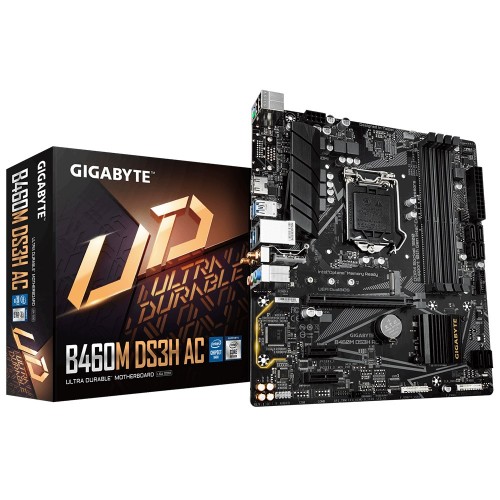

Gigabyte B460M DS3H AC 10th Gen WiFi Micro ATX Motherboard
  • Gigabyte B460M DS3H AC 10th Gen WiFi Micro ATX Motherboard
  • Gigabyte B460M DS3H AC 10th Gen WiFi Micro ATX Motherboard
  • Gigabyte B460M DS3H AC 10th Gen WiFi Micro ATX Motherboard

Gigabyte B460M DS3H AC 10th Gen WiFi Micro ATX Motherboard

Price: Up Coming
Status: Up Coming
Product Code: 2867
Brand: Gigabyte
Key Features
  • Model: B460M DS3H AC
  • Intel Socket LGA1200 for 10th Gen Processors
  • Chipset: Intel B460 Express
  • 4 x DIMM, Max. 128GB DDR4
  • Intel Dual Band 802.11ac WIFI
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
BIOS 2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Basic Information
Chipset Intel B460 Express Chipset
Audio Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel
CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel
Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel
Celeron processors in the LGA1200 package

L3 cache varies with CPU
Memory
Memory Type:

Dual-channel architecture

Slots:

4 x DDR4 DIMM

Supported Memory:

Intel Core i9/ i7 processors:

Support for DDR4 2933/ 2666/ 2400/ 2133 MHz

Intel Core i5/ i3/ Pentium /Celeron processors:

Support for DDR4 2666/ 2400/ 2133 MHz

Maximum Memory:

128 GB
Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

6 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Intel Optane Memory Ready
Graphics
Graphics Graphics:

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Max Shared Memory:

512MB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)Wireless Communication module

Intel Wi-Fi 3168

Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2

Support for 11ac wireless standard and up to 433 Mbps data rate
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

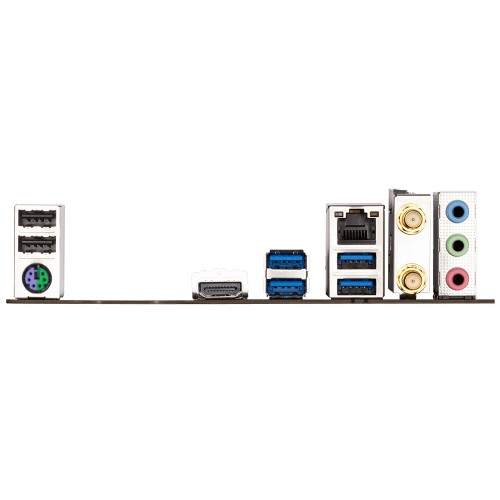

USB Port 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the
internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers
WARRANTY INFORMATION
Manufacturing Warranty 03 Years

Description :

Gigabyte B460M DS3H AC 10th Gen WiFi Micro ATX Motherboard

  • Supports 10th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • Intel® Dual Band 802.11ac WIFI & BT 4.2
  • RGB FUSION supports RGB LED Strips in 7 Colors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • GIGABYTE UEFI DualBIOS™
  • Intel® Optane™ Memory Ready
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which is beneficial for both end-users and the environment without impacting system performance. The onboard 802.11ac WIFI module from Intel supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n, and also support BLUETOOTH 4.2. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function.
