| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
|
| BASIC INFORMATION | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor: 24.4cm x 20.5cm | |
| Memory | ||
| Memory | Type: Dual channel memory architecture Slots: 2 x DDR4 DIMM Supported Memory: Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: 32 GB |
|
| Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Graphics | ||
| Graphics | Graphics: Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Max Shared Memory: 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| LAN | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|

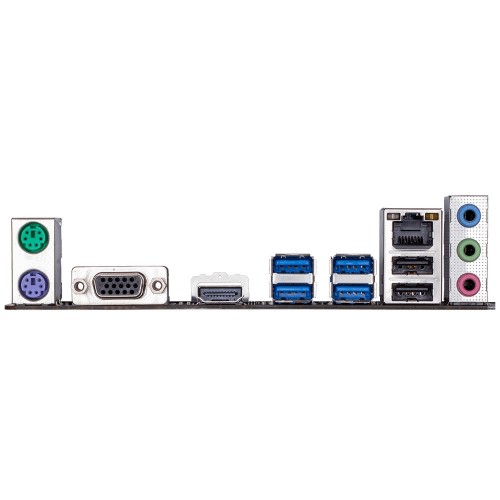

| USB Port | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

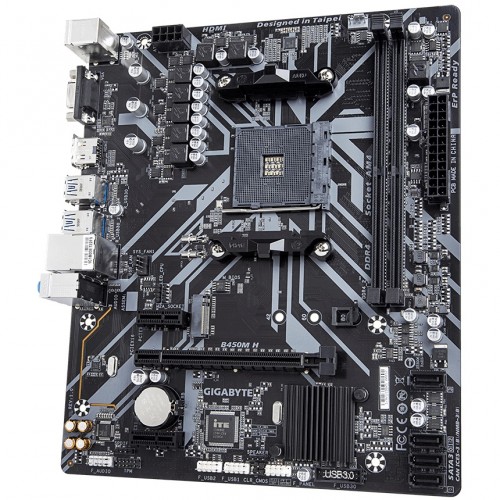

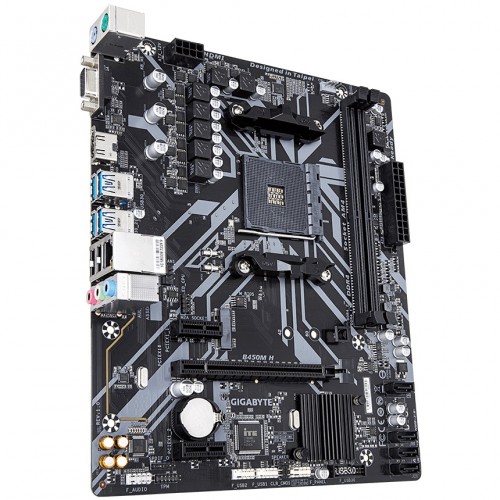

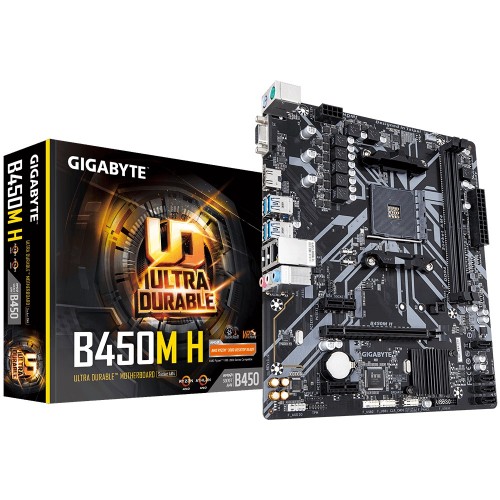

Power Up Your Gaming Experience With First-, Second-, And Third-Generation AMD Ryzen Processors With The AM4 Socket Using The B450M H AM4 Micro-ATX Motherboard From Gigabyte. Designed For Small Form Factor Systems, This Micro-ATX Motherboard Takes Advantage Of The B450 Chipset To Run Demanding Games And Applications. Up To 32GB Of Dual-Channel DDR4 RAM At 3600 MHz When Overlocking Can Be Installed Across Four Memory Slots For Efficient Multitasking And To Run High-End Games. The Durable Motherboard Also Features An M.2 SSD Slot And Supports Up To Four SATA III Storage Drives, Which Can Be Put Into RAID 0, 1, Or 10 Configuration. Peripherals Such As Keyboards And Mice Can Be Plugged Into The Rear Panel's USB 2.0 Type-A Ports While The USB 3.1 Ports Support Speeds Up To 5 Gb/S With Compatible Storage Drive
