| Basic Information | ||
| Type | Dual channel memory architecture | |
| BASIC INFORMATION | ||
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Audio | Realtek Audio CODEC |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) |
|
| Memory | ||
| Slots | 4 x DDR4 DIMM sockets | |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
|
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon | |
| Connector & Ports | ||
| Wireless Communication module | Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| USB (s) | CPU: |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
|
| Special Features | Support for APP Center |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

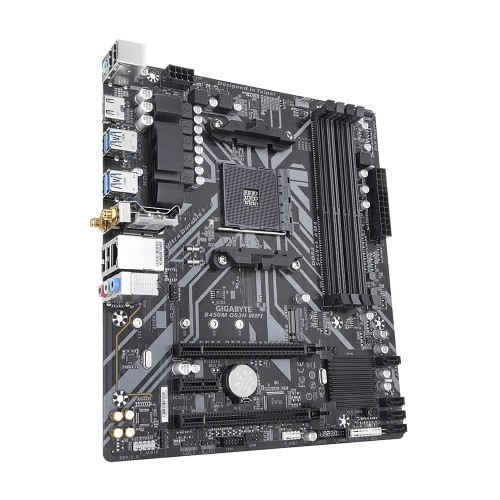

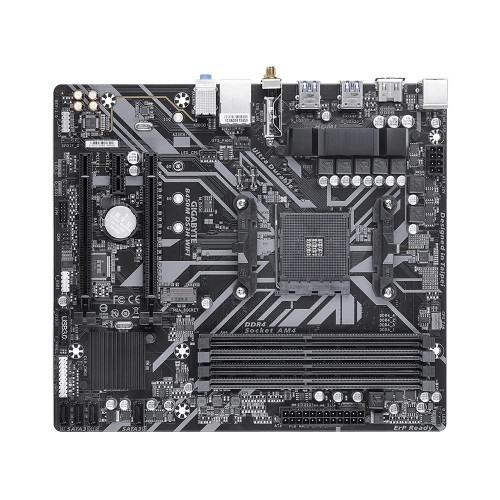

GIGABYTE B450M DS3H WIFI Supports with AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. This motherboard featured with Intel Dual Band 802.11ac WIFI & BT 4.2. The onboard 802.11ac WIFI module from Intel supports Dual Band and up to 433 Mbps, 3x faster WIFI speed which is faster than 802.11n and also support BLUETOOTH 4.2. The GIGABYTE B450M DS3H WIFI comes with Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support, High Quality Audio Capacitors and Audio Noise Guard Design, RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support, Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP, APP Center Including EasyTune and Cloud Station Utilities and also has CEC 2019 Ready, Save Power with a Simple Click. Here, GIGABYTE M.2 solution offers considerably faster storage performance and also support for PCIe and SATA interfaces for M.2 SSD devices. With the Smart Fan 5, Gamers can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different space on the motherboard. By equipping resistors with an Anti-Sulfur Design GIGABYTE B450M DS3H WIFI gives Ultra Durable Motherboards a whole new meaning. This latest GIGABYTE B450M DS3H WIFI offeres 03 years warranty.
