| Video Memory Specifications | ||
| Card Size | 278.81 x 126.78 x 41.91mm | |
| Memory Size | 8GB | |
| Memory Type | GDDR5 | |
| Resolution | Support 8K | |
| Core Clock | OC Mode: Up to 1435 MHz / 8032 MHz Default Mode: Up to 1380 MHz / 8000 MHz Silent Mode: Up to 1324 MHz / 7968 MHz |
|
| Memory Bus (Bit) | 256-bit | |
| INTERFACE | PCI Express x16 Gen3 | |
| Memory Clock | 8000 MHz | |
| Stream Processors | 2304 | |
| Memory Bandwidth (GB/sec) | Up to 256 GB/s | |
| Power Specifications | ||
| Power Connector (Pin) | 1 x 8-pin | |
| Recommended Power Supply | 500 W | |
| Display Option | ||

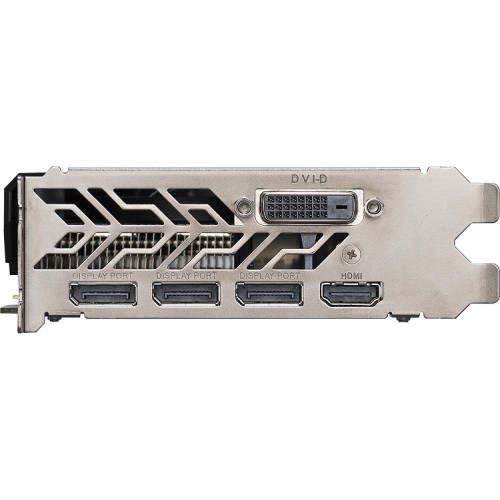

| Multi Display | Multi-view 5 | |
| General | ||
| Engine Clock | 1380 MHz | |

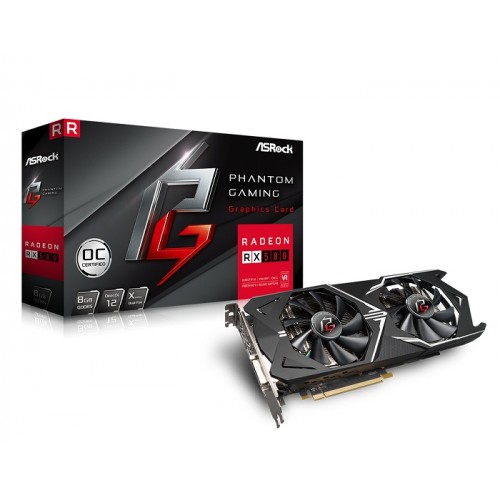

| Graphics Chipset | AMD Radeon RX 580 | |
| OS SUPPORT | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition Windows 7 - 32-Bit Edition Windows 7 - 64-Bit Edition Ubuntu x86 64-Bit Linux x86_64 |
|
| Application Programming Interfaces | ||
| OpenGL | 4.5 | |
| DirectX | 12 | |
| WARRANTY INFORMATION | ||
| Warranty | 2 years | |
Phantom Gaming OC Certified mark represents excellent overclocking capabilities and high level performance. It’s the beast with undefeatable hardware and practical software for limit pushing overclockers to break world records.
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Reduce friction, allow fan to run smoother and with a lifespan up to 50,000-100,000 hours. Compared to traditional design with oil leakage problem, it improves lifespan by 30 ~ 40% and with an enhanced cooling efficiency significantly.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Improve GPU and VGA cooler performance significantly. Keep thermal performance and operation safe.
