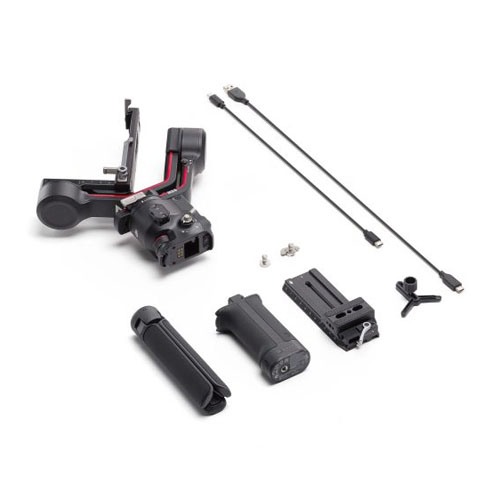

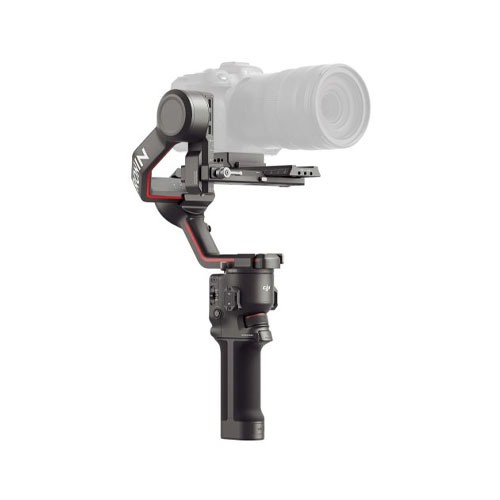

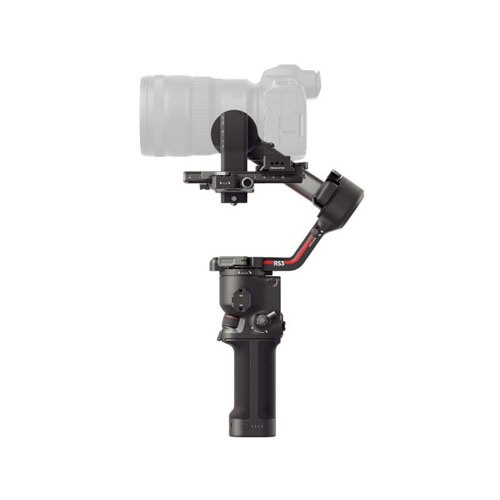

DJI RS 3 Camera Gimbal – Standard Pack

DJI RS 3 Camera Gimbal - Standard Pack

The DJI RS 3 Camera Gimbal – Standard Pack is a professional-grade camera stabilization system designed to provide smooth and stable footage for filmmakers, content creators, and photographers. It features a range of advanced features and capabilities that make it ideal for a wide range of shooting scenarios. One of the key features of the DJI RS 3 is its peripheral accessory port, which allows users to connect a variety of accessories, including focus motors, video transmission systems, and camera control ports. This makes it easy to customize the gimbal to suit specific shooting needs. The gimbal is powered by a high-capacity 2S battery with a capacity of 3000 mAh, providing up to 12 hours of runtime on a single charge. The battery can be quickly charged using an 18W quick charger, with a charging time of approximately 2.5 hours. The DJI RS 3 is compatible with the DJI Ronin app, which allows users to control the gimbal, adjust settings, and access advanced features. The app is available for both iOS and Android devices. The gimbal has a tested payload capacity of 3 kg (6.6 lbs), making it suitable for use with a wide range of cameras and lenses. It also features a maximum controlled rotation speed of 360°/s for pan, tilt, and roll movements. The gimbal operates on the 2.400-2.484 GHz frequency range and has a Bluetooth transmitter power of <8 dBm. It has an operating temperature range of -20° to 45° C (-4° to 113° F) and weighs approximately 990 g (2.18 lbs). In addition to the gimbal itself, the Standard Pack also includes a DJI Ronin Image Transmitter, which allows users to wirelessly transmit video from their camera to a monitor or other device. The transmitter has a range of 200 m (SRRC/FCC) or 100 m (CE) and a latency of 60 ms. It is powered by a 2970 mAh battery and has a charging time of approximately 2.5 hours.

DJI RS 3 Camera Gimbal Features

• Peripheral Accessory Port: The gimbal features a variety of ports and mounting holes, including NATO ports, a 1/4"-20 mounting hole, a cold shoe, and multiple USB-C ports for video transmission, focus motor control, and RSS camera control.
• High-Capacity Battery: The gimbal is powered by a 2S battery with a capacity of 3000 mAh, providing up to 12 hours of runtime on a single charge. The battery can be quickly charged using an 18W quick charger (supports PD protocol), with a charging time of approximately 2.5 hours.
• Bluetooth 5.0 Connectivity: The gimbal features Bluetooth 5.0 connectivity, allowing for wireless control and communication with compatible devices.
• Ronin App Compatibility: The gimbal is compatible with the DJI Ronin app, which allows users to control the gimbal, adjust settings, and access advanced features. The app is available for both iOS and Android devices.
• Tested Payload Capacity: The gimbal has a tested payload capacity of 3 kg (6.6 lbs), making it suitable for use with a wide range of cameras and lenses.
• Maximum Controlled Rotation Speed: The gimbal features a maximum controlled rotation speed of 360°/s for pan, tilt, and roll movements, ensuring smooth and precise camera movements.
• Mechanical Range: The gimbal has a mechanical range of 360° continuous rotation for the pan axis, -95° to +240° for the roll axis, and -112° to +214° for the tilt axis, providing a wide range of motion for capturing different types of shots.
• Operating Frequency: The gimbal operates on the 2.400-2.484 GHz frequency range, ensuring reliable wireless communication and control.
• Compact and Lightweight Design: The gimbal weighs approximately 990 g (2.18 lbs) and has dimensions of 254×230×68 mm (L×W×H) when folded, making it compact and easy to transport.
• DJI Ronin Image Transmitter: The Standard Pack also includes a DJI Ronin Image Transmitter, which allows users to wirelessly transmit video from their camera to a monitor or other device. The transmitter has a range of 200 m (SRRC/FCC) or 100 m (CE) and a latency of 60 ms.
