| Key Feature | ||
| Certification | 80 PLUS Gold Certified | |
| CPU | CPU8Pin x 1 CPU8(4+4)Pin x 1 | |
| Efficiency (Approx.) | ≥90% Under Typical Load(50% Loading) | |
| Fan Size | 120mm | |
| Modular Type | Full Modular | |
| Molex | 4pin Peripheral x 4 | |
| Connectors | ||
| PCI-E | PCI-E(6+2)Pin x 1 | |
| Main Power | Main Power Connector 24(20+4)Pin × 1 | |
| SATA | SATA x 4 | |
| Input | ||
| Current | 12.0A | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 10 years warranty | |

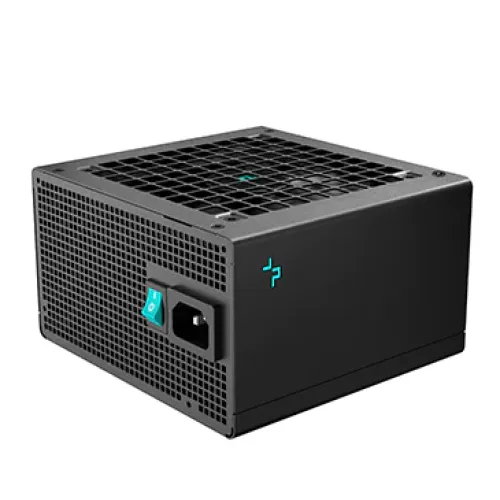

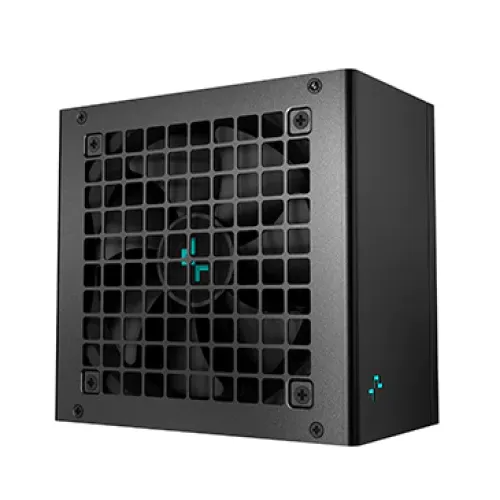

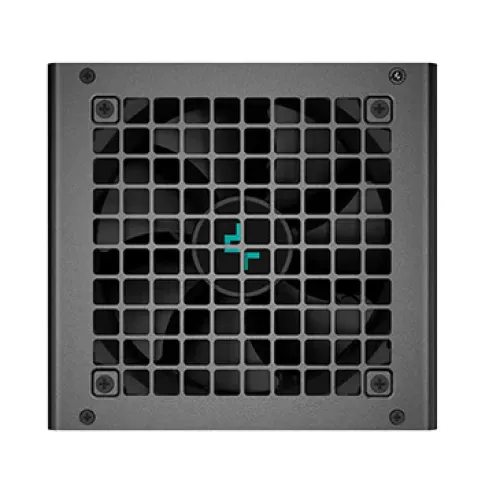

DeepCool DQ1000M-V3L 850W is a Full Modular Power Supply with 80 Plus Gold certification. This new DeepCool power supply is made entirely of Japanese capacitors and employs high-quality switch MOSFETs. The DQ1000M-V3L is designed to provide stable output capacity with high conversion efficiency, improving the reliability of your PC system. The DeepCool Full Modular Power Supply is 80 PLUS Gold Certified, so you'll get all the power you need while saving up to 91.2% on energy consumption and waste heat. The DQ1000M-V3L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs. It has active Power Factor Correction (PFC), a full bridge LLC resonant converter, and synchronous rectification DC-DC design. The 120mm silent fan in this PSU has a temperature control feature to maintain low noise. tight fan curve, quiet operation, and quiet operation. The Circuit Shield in this Power Supply shields your PSU from issues with irregular voltage and current, such as shorting, over-powering, and overheating.
