| Key Features | ||
| Data Rate | 5 GHz Wi-Fi Speed: 1201 Mbps 2.4 GHz Wi-Fi Speed: 300 Mbps |
|
| Antenna | Wi-Fi Antennas: 2× Internal 5 GHz Antenna Gain Max: 5.56dBi 2.4 GHz Antenna Gain Max: 4.41dBi |
|
| Button | WPS Button, Reset Button | |
| Frequency | 5 GHz, 2.4 GHz | |
| Network Standard | QoS: Per-User Rate Limiting DHCP: - Address Reservation - DHCP Client List - Server IP Versions: IPv4/IPv6 IPv6 Protocols: - Relay - Dynamic (SLAAC/DHCPv6) - Static (Fixed IP) - Passthrough - 464XLAT - MAP-E - DS-Lite IPTV/VLAN: - Bridge - Tag VLAN - VoIP VLAN - IPTV VLAN IGMP: - IGMP Proxy - IGMP Snooping Forwarding: - Port Forwarding - UPnP - DMZ Firewall: - SPI Firewall - Block PING |
|
| Ports | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports |
|
| Interface | Gigabit RJ45 Ports: 3 Ethernet Notes: 1× WAN port, the rest are LAN ports Uplink Ethernet Ports: 1-Pack: 57×56×26 cm 22.44×22.05×10.24 inches LED: System Physical Buttons: - WPS Button - Reset Button Power Input: DC Jack |
|
| Wireless | Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: Beamforming Max Capacity: 128 Recommended Client Upper Limit: 60 Max Wi-Fi Channel Width: 80 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True |
|
| Others | Coverage Up to 1600 Sq ft Processor: 1 GHz Single-Core CPU Memory/Storage Flash/ROM: 16 MB (128 Mbit) NOR DDR/RAM: 128 MB (1 Gbit) DDR3 System: LED Control: True Local Control Method: - Config Web Page - App Control Remote Control Method: - Config Page via HTTPS - App Control - TR069/TR098/TR111/TR143/TR181 Firmware Upgrade: - Local Update - App (Over the Air) - Online Update Reliability: - Timed Reboot - Backup and Restore Diagnostic Tools: - Diagnosis - Ping - Traceroute - NSLookup - System Log Languages: - English - Portuguese - Russian - Spanish - Ukrainian - French - Simplified Chinese Utilities: VPN Client: - PPTP - L2TP - Wireguard DNS Options: - Manual DNS - Rebind Protection - Override Clients' DNS Wake on LAN: True Online Detection: True Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management Cudy Mesh, VPN Client, Cudy App, Cloud Control |
|
| Power Source | ||
| Power Mode | Power Methods: DC DC Input: 12V 1A Power Adapter: - Input: 100 ~ 240 V, 50/60 Hz AC - Output: 12V 1A DC Max Power Consumption (W): 10W |
|
| Physical Dimension | ||
| Dimension | 110×154.5 mm 4.33×6.08 inches |
|
| Manufacturer warranty | ||
| warranty | 1 year | |

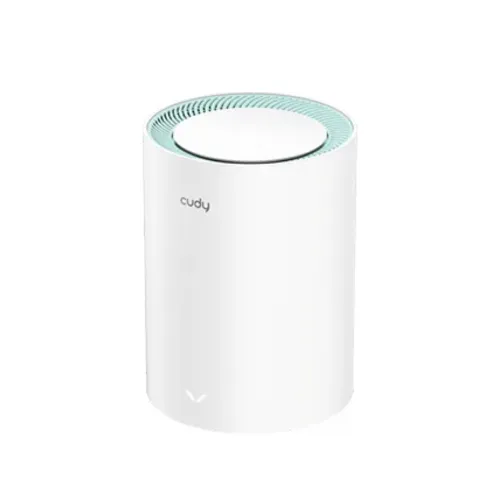

The Cudy M1500 (1-Pack) is a high-performance AX1500 Mesh router designed to function either as a standalone powerhouse or as the foundational building block of a sophisticated whole-home mesh system. By utilizing the Wi-Fi 6 (802.11ax) standard, the M1500 offers a significant leap in efficiency and capacity compared to previous generations, making it an ideal choice for modern households filled with smartphones, smart TVs, and IoT devices.
The M1500 delivers a total network speed of up to 1.5Gbps across two bands. The 5GHz band provides up to 1201Mbps for high-bandwidth activities like 4K streaming and low-latency gaming, while the 2.4GHz band offers 300Mbps for consistent coverage and smart home connectivity. With the integration of OFDMA and MU-MIMO technology, the M1500 can communicate with dozens of devices simultaneously, drastically reducing "queuing" time and ensuring that every connected unit maintains a stable high-speed link.
One of the primary advantages of the M1500 is its Cudy Whole Home Mesh capability. As a single pack, it provides expansive coverage for a medium-sized apartment or office. However, it is designed to scale; you can easily add additional M1500 units to create a unified network. This system supports Seamless Roaming, allowing your devices to transition between nodes without losing connection or experiencing drops during video calls.
Equipped with Gigabit Ethernet ports, the M1500 ensures that wired devices like gaming consoles or desktop PCs receive maximum speeds. Security is bolstered by the WPA3 protocol, providing the latest in wireless encryption. Furthermore, the router includes built-in VPN Client support and DNS over TLS, ensuring your data remains private and secure from the router level down. With its minimalist, antenna-internalized design, the M1500 fits elegantly into any interior while delivering professional-grade networking.
Get specific details about this product from customers who own it.
