| BASIC Information | ||
| Processor | support AMD AM4 socket Ryzen 2000 and 3000 series processor |
|
| Basic Information | ||
| Chipset | AMD X570 |
|
| Memory | 4 DIMM slots,Support dual channel DDR4 memory,when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory,when using Ryzen 3000 series processor,support DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory | |
| BASIC INFORMATION | ||
| Graphics | 1*PCI Express4.0X16,1*PCI Express4.0X4 slots(support 2-Way AMD CrossFire™) |
|
| Model | CVN X570M GAMING FROZEN V14 |
|
| BIOS | 256M UEFI |
|
| Audio | ALC892 8-channel audio chipset |
|
| Connector & Ports | ||
| LAN | RTL8111H 1000M LAN chipset |
|

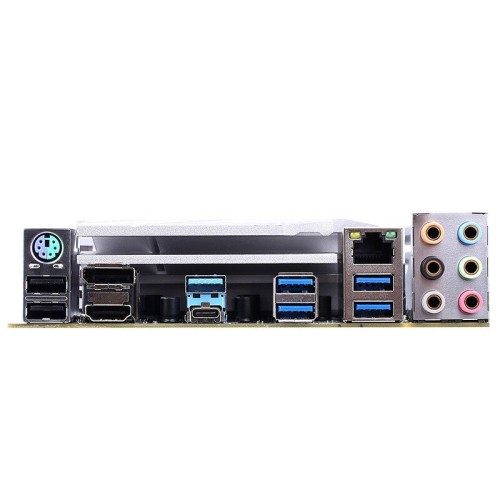

| Internal I/O Ports | IO:1*PS2,2*USB2.0,1*HDMI,1*DP,4*USB3.1 GEN1（3*TYPE-A & 1*TYPE-C）,2*USB3.1 GEN2 TYPE-A ports.1*RJ45 1000M LAN,1*6audio ports.Onboard：1*COM,2*USB2.0,1*USB3.1 GEN1 TYPE-A | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years Warranty | |
