| BASIC INFORMATION | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search |
|
| Form Factor | mATX | |
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC | |
| CPU | AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 4 Supported Memory: 3466(O.3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHzC.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz Maximum Memory: 64GB |
|
| Storage | AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 AMD Athlon with Radeon Vega Graphics Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen st Generation Processors : - 2 x SATA 6Gb/s port(s) AMD B450 chipset : - 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| LAN | Realtek RTL8111H TUF LAN Guard |
|

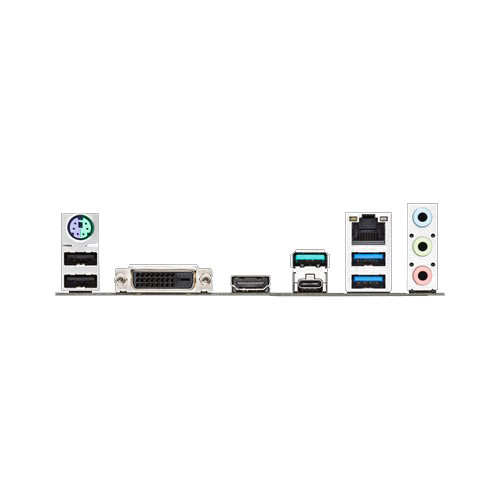

| Internal I/O Ports | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
|
| USB Port | 1 x USB3.1 Gen 1 Type-C, 1 x USB3.1 Gen 2, 4 x USB3.1 Gen 1 | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

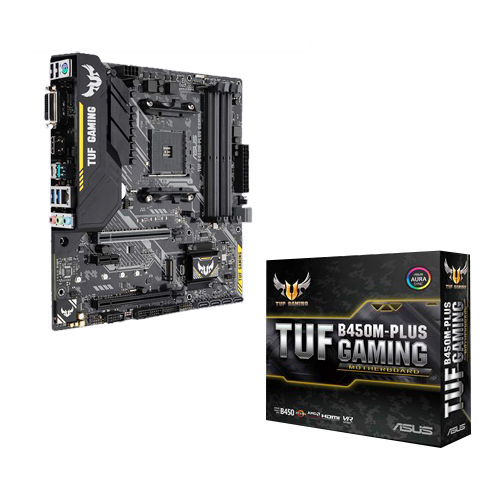

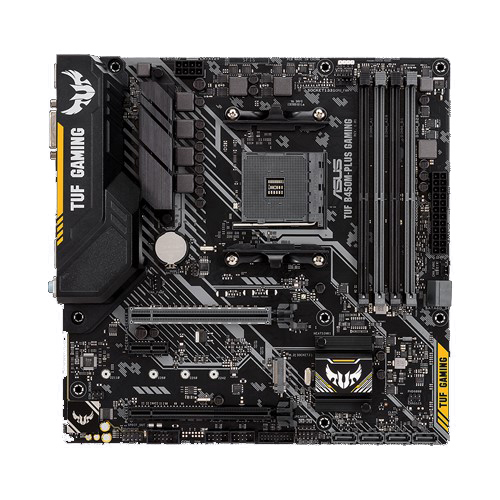

This mobo is Powered by 2nd generation AMD Ryzen AM4 processors, the ASUS TUF B450M-Plus Gaming delivers 24/7 performance. Military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability. Its TUF Capacitors offer+20% temperature tolerance and 5X-longer lifespan. Lastly, TUF MOSFETS are military-grade MOSFETs with lower RDS(on). SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. TUF B450M-PLUS GAMING features the most comprehensive fan controls ever, configurable via FAN Xpert 2+ and our award-winning UEFI BIOS. With FAN Xpert 2+ you're able to control system fans based on inputs from up to three temperature sources. With backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps. With x4 PCI Express 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.
Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF gaming alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Antec®, Apacer®, Ballistix, Cooler Master®, Corsair®, Deepcool, Enermax, G.Skill, GeIL®, In Win, Scythe, SilverStone, Team Group and XPG. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships to make the TUF Gaming Alliance ever stronger.
DDR4 SUPPORT
TUF Gaming motherboards are subjected to stringent tests to ensure they're ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig.
Gaming Audio
DTS CUSTOM FOR GAMING HEADSETS
Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
OUTSHINE THE COMPETITION
AURA SYNC
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
