| BASIC INFORMATION | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm | |
| Basic Information | ||
| Chipset | Intel® B360 Express Chipset | |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel | |
| CPU | Supported CPU Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU. |
|
| Memory | ||
| Memory | Type: 2 x DDR4 DIMM sockets supporting| Slots: Dual channel memory architecture| Supported Memory: Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un- buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non- ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules| Maximum Mamory: 32 GB |
|
| Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors |
|
| Graphics | ||
| Graphics | Integrated Graphics: Integrated Graphics Processor-Intel® HD Graphics support| Supported Graphics: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.| Max Shared Memory: 1GB |
|
| Connector & Ports | ||
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector| 1 x 8-pin ATX 12V power connector| 1 x CPU fan header| 1 x system fan header| 6 x SATA 6Gb/s connectors| 1 x M.2 Socket 3 connector| 1 x front panel header| 1 x front panel audio header| 1 x USB 3.1 Gen 1 header| 2 x USB 2.0/1.1 headers| 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)| 1 x serial port header| 1 x Clear CMOS jumper |
|
| USB Port | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)| 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

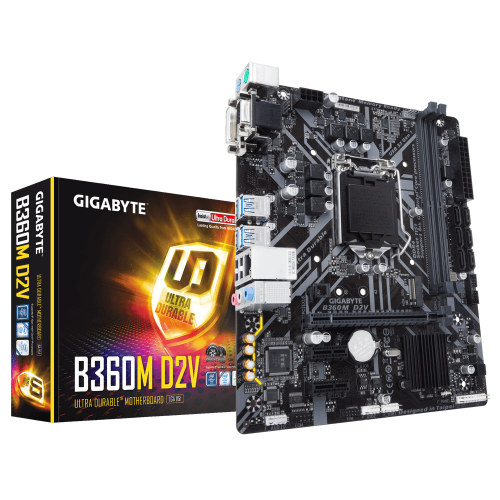

Gigabyte B360M D2V Micro ATX hybrid digital PWM design Ultra Durable motherboard has the compatibility with 8th Gen i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Regarding its graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for DVI-D & D-Sub port. This latest motherboard has the facility of GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistors, high quality audio capacitors and noise guard with LED trace path lighting and ready for Intel Optane memory. All these characteristics makes this device very gaming friendly for the user.
