| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| BASIC INFORMATION | ||
| Supported CPU | Intel Socket LGA1700 For 12th Gen Intel Core, Pentium Gold And Celeron Processors Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0 |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | MicroATX 24.4cm X 24.4cm |
|
| Memory | ||
| Slots | Intel 12th Gen Processors 1 X PCIe 5.0 X16 Slot Intel B660 Chipset 1 X PCIe 3.0 X16 Slot (Supports X4 Mode) 1 X PCIe 4.0 X1 Slot |
|
| Memory | 4 X DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/4800 Non-ECC, Un-Buffered Memory Dual Channel Memory Architecture OptiMem II |
|
| Graphics | ||
| Graphics | 1 X DisplayPort (Supports Max. 4K@60Hz As Specified In DisplayPort 1.4) 1 X HDMI Port (Supports 4K@60Hz As Specified In HDMI 2.1) |
|
| Connector & Ports | ||
| Supported Storage | Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports Total Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports* Intel 12th Gen Processors M.2_1 Slot (Key M), Type 2242/2260/2280 - Intel 12th Gen Processors Support PCIe 4.0 X4 Mode. Intel B660 Chipset** M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) 4 X SATA 6Gb/S Ports * Intel® Rapid Storage Technology Supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology Supports Intel® Optane Memory H Series On PCH Attached M.2 Slots. |
|
| Internal I/O Ports | Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin CPU OPT Fan Header 1 X 4-Pin AIO Pump Header 3 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector 1 X 4-Pin +12V Power Connector Storage Related 2 X M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 1 Connector (Supports USB Type-C) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports Miscellaneous 3 X Addressable Gen 2 Headers 1 X AURA RGB Header 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X 20-3 Pin System Panel Header With Chassis Intrude Function 1 X Thunderbolt Header |
|

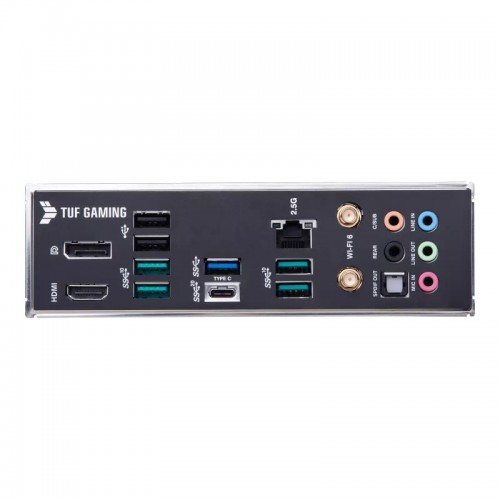

| USB Port | Rear USB (Total 9 Ports) 1 X USB 3.2 Gen 2×2 Port (1 X USB Type-C®) 1 X USB 3.2 Gen 2 Port (1 X USB Type-A) 3 X USB 3.2 Gen 1 Ports (2 X USB Type-A+1 X USB Type-C®) 4 X USB 2.0 Ports (4 X USB Type-A) Front USB (Total 6 Ports) 1 X USB 3.2 Gen 2 Connector (1 X USB Type-C®) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 1 X USB 2.0 10-1 Pin Header + 1 USB 2.0 4 Pin Header Support Additional 3 USB 2.0 Ports |
|

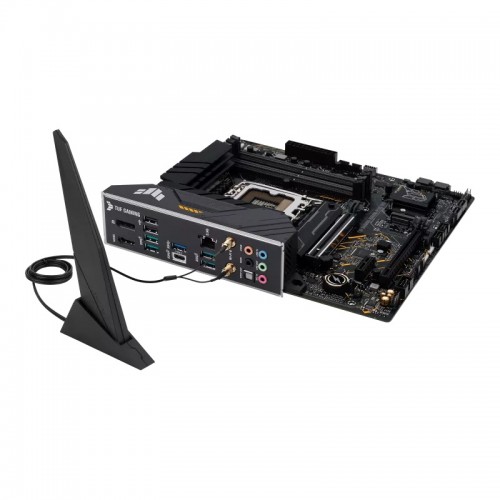

| WiFi | Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax) Supports 2.4/5GHz Frequency Band Bluetooth V5.2 |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

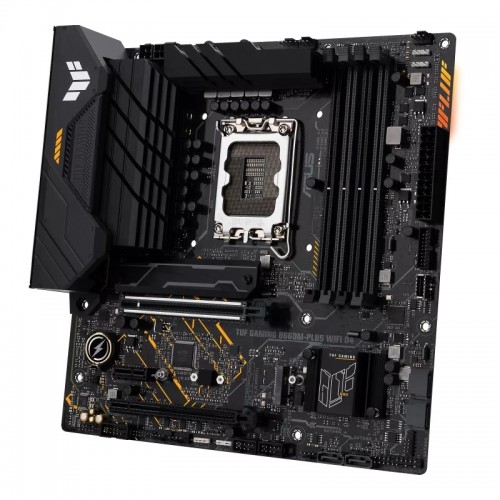

ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, ASUS TUF GAMING B660M-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series. With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core™ processors, plus support for faster memory and storage, ASUS TUF GAMING B660M-PLUS WIFI D4 series motherboards are the perfect foundation for your next high-core-count battle rig.
The onboard VRMs feature 10+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand.
ASUS TUF GAMING B660M-PLUS motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2+ and hardware information and offers full full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The ASUS TUF GAMING B660M-PLUS platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
ASUS TUF GAMING B660M-PLUS WIFI D4 series motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
