| Basic Information | ||
| Others | Processor: 1.7GHz quad-core processor Memory: 256 MB Flash and 512 MB DDR4 RAM Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth Operating Mode: Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge AiMesh • Primary AiMesh Router • AiMesh Node Parental Control "Allow you to block access to unwanted websites and apps." Safe Browsing Customized Internet Schedule • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Cilter Rule : 64 Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network." • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3 Guest Network Connection Time Limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS Security AiProtection WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 AiProtection • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS -- Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay LAN DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
|
| Key Feature | ||
| Frequency | Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz | |
| Key Features | ||
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) IPv4 IPv6 |
|
| Ports | RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x 3 |
|
| Main Spec | ||
| Power Module | AC Input : 110V~240V(50~60Hz) DC Output: 12 V with max. 3.0 A current |
|
| Router Features | ||
| Antenna | External antenna x 6 (non-detachable) | |
| Button | Power on/off switch Reset Button WPS Button |
|
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) : up to 500 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps |
|
| Features | ||
| Dimension | 243*223*155 mm | |
| Interface | USB 3.2 Gen 1 Port x 1 USB application File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
|
| Weight | 1033g | |
| Connectivity | ||
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
|
| WARRANTY INFORMATION | ||
| Warranty | 2 Year | |

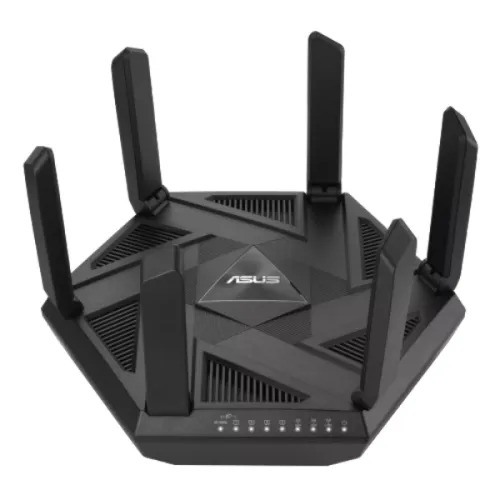

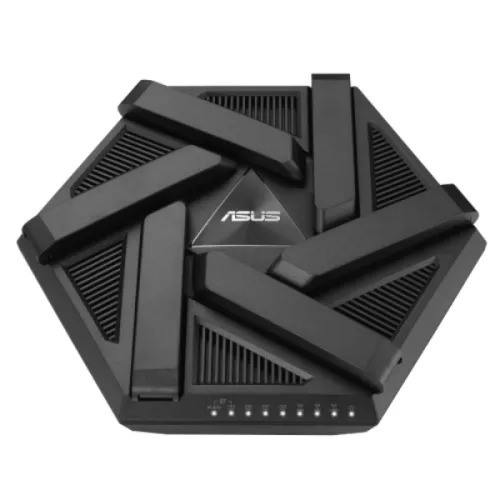

The ASUS RT-AXE7800 7800Mbps Tri-Band WiFi 6E AiMesh Gaming Router supports multiple network standards, including IEEE 802.11a/b/g/n/ac/ax, IPv4, and IPv6. This ASUS Gaming Router provides top-tier connectivity with a maximum AX performance of 574+4804+2402 Mbps across three frequencies (2.4 GHz, 5 GHz, and 6 GHz). The router's six external, non-detachable antennas provide strong signal strength and coverage. It runs on a 1.7GHz quad-core processor and has 256 MB of Flash and 512 MB of DDR4 RAM for smooth operation. The ASUS RT-AXE7800 Tri-Band WiFi 6E Gaming Router improves speed and reliability by utilizing advanced technologies such as OFDMA, beamforming, 1024-QAM high data rate, and 20/40/80/160 MHz bandwidth. The gaming router has multiple modes of operation, including AiMesh router, AiMesh node, access point, repeater, and media bridge, allowing for flexible network management. It provides high-speed wired connections thanks to its extensive I/O ports, which include RJ45 for 2.5 Gigabit BaseT, gigabit BaseT, and USB 3.2 Gen 1. The ASUS RT-AXE7800 7800Mbps Tri-Band WiFi 6E AiMesh Gaming Router has excellent security features, including AiProtection, WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support, Let's Encrypt, DNS-over-TLS, and SSH. Parental controls enable you to block unwanted websites and apps, create internet schedules, and manage up to 64 profiles. The guest network function supports multiple rules across different bands, ensuring that visitors have secure and isolated access. The ASUS RT-AXE7800 Tri-Band Gaming Router also supports a number of VPN configurations, such as Instant Guard, VPN Client (L2TP, Open VPN, PPTP, WireGuard), and VPN Server (IPSec, Open VPN, PPTP, WireGuard). Traffic control is improved with adaptive QoS, bandwidth monitors, limiters, and traditional QoS rules, ensuring optimal performance for all devices. The ASUS RT-AXE7800 7800Mbps Tri-Band WiFi 6E AiMesh Gaming Router is well-equipped to handle a wide range of networking requirements, thanks to features such as AiCloud, Download Master, AiDisk, media server and Time Machine.
