| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z890 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (supports x4 mode) |
|
| M.2 Socket | 4 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Maximum Memory | 256GB | |
| Slots | 4x DIMM slots | |
| Supported Memory | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
|
| Type | DDR5 | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| USB (s) | Rear USB (Total 10 ports) 2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps (1 x USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
|
| LAN Port (s) | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |
| Audio | 2 x Gold-plated audio jacks | |
| Internal I/O Ports | Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
|
| Display Port (s) | 1 x DisplayPort 1.4 | |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Rear USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0 |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - ASUS AI Advisor - ASUS Driver Hub - ASUS GlideX - USB Wattage Watcher - TurboV Core - Adobe Creative Cloud (Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|
| Warranty Information | ||
| Warranty | 3 Year | |

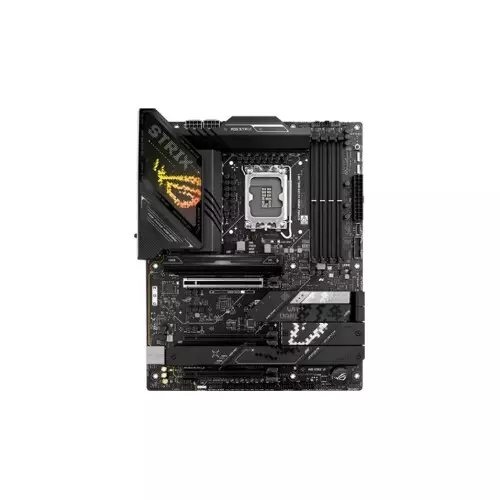

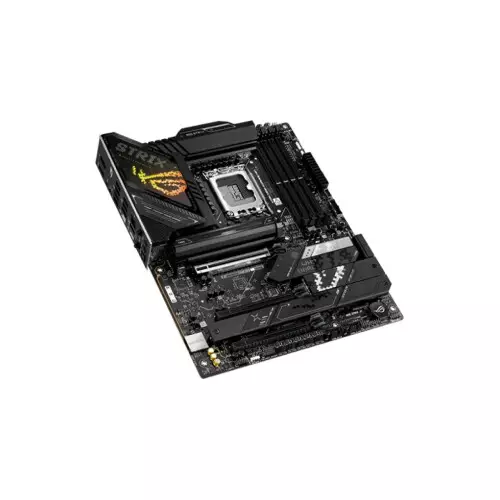

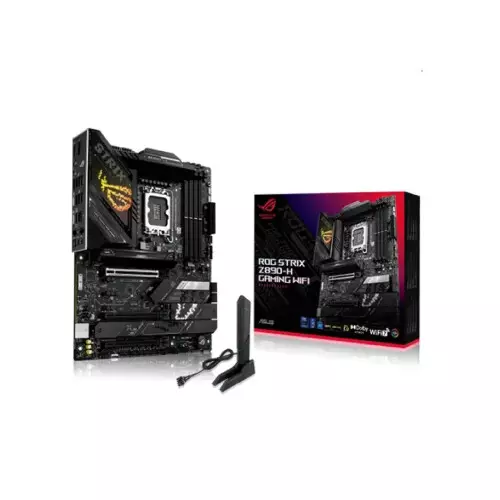

The ASUS ROG STRIX Z890-H GAMING WIFI is a premium, high-performance ATX motherboard built for the LGA1851 socket. Specifically engineered to unleash the full potential of Intel Core Ultra Processors (Series 2), this board combines a striking black-and-red ROG aesthetic with advanced AI-driven features, making it an elite foundation for next-generation gaming setups and content creation rigs.
Robust VRM Architecture: Features a powerful 16+1+2+2 power stage design rated at 80A per stage. Backed by dual ProCool II power connectors and an 8-layer PCB, it provides incredibly stable voltage delivery for heavy processor overclocking.
Thermal Management: The board is armored with an expansive VRM heatsink array, an integrated M.2 backplate, and dedicated heatsinks covering every storage slot to eliminate thermal throttling under heavy workloads.
Blistering DDR5 Speeds: Across 4 DIMM slots, it supports up to 256GB of DDR5 memory, utilizing ASUS NitroPath DRAM technology to push enthusiast kits to 9066+ MT/s (OC).
PCIe 5.0 Readiness: Equipped with a reinforced PCIe 5.0 x16 SafeSlot to accommodate massive next-gen graphics cards. For storage, it features 4 onboard M.2 slots, including a blazing-fast top slot wired for PCIe 5.0 x4 speeds.

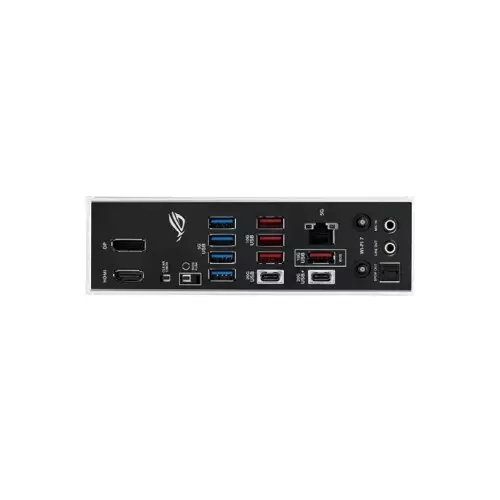

This motherboard offers bleeding-edge wireless Wi-Fi 7 with an ultra-convenient Q-Antenna, alongside a low-latency Realtek 5Gb Ethernet port. The rear I/O is loaded with dual USB 20Gbps Type-C ports (one supporting 30W Power Delivery fast charging), high-fidelity ROG SupremeFX 7.1 audio, and standard DIY-friendly tools like the PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack, and Clear CMOS buttons for hassle-free building.
