| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** **support depends on the CPU types |
|
| Chipset | INTEL B860 | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini-ITX | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot |
|
| M.2 Socket | 2 x M.2 | |
| Memory | ||
| Maximum Memory | 128GB | |
| Slots | 2 | |
| Supported Memory | Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) |
|
| Type | DDR5 | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. ***** VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | Rear USB (Total 8 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|
| RAID | SATA RAID 0/1/5/10. | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers * Due to limitations in HDA bandwidth |
|

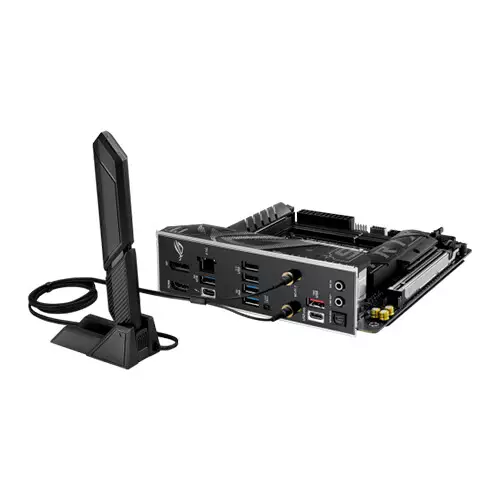

| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Back Panel I/O Ports 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x Clear CMOS button |
|
| Display Port (s) | 1x DisplayPort 1.4a | |
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - M.2 Q-Latch - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
|
| Warranty Information | ||
| Warranty | 3 Year | |

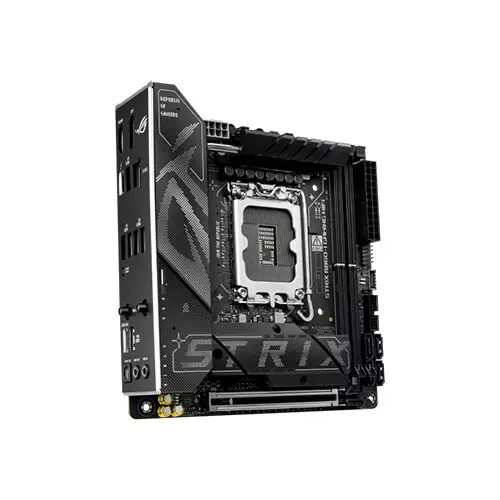

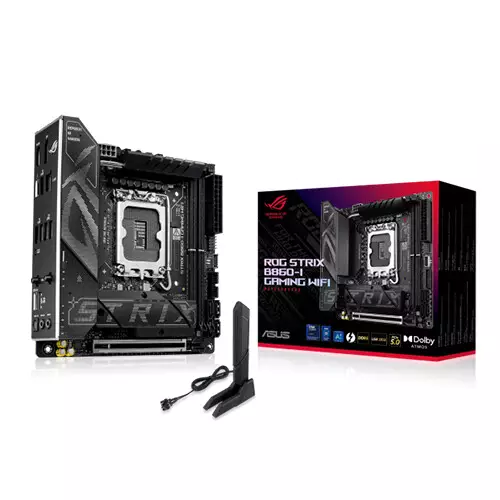

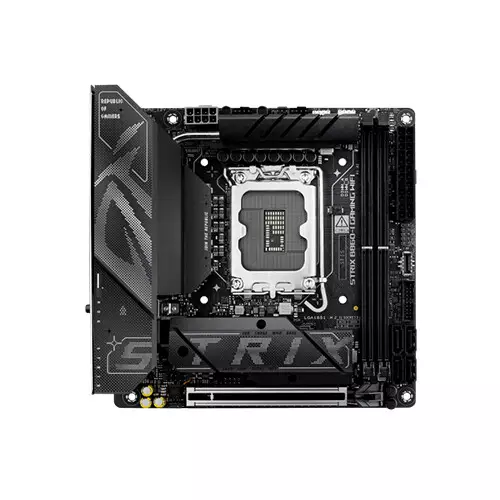

The ASUS ROG STRIX B860-I GAMING WIFI is a premium, compact powerhouse engineered for small-form-factor (SFF) enthusiasts who refuse to compromise on performance. Built on the Intel B860 chipset with the cutting-edge LGA1851 socket, this mini-ITX motherboard delivers full-throttle support for the latest Intel Core Ultra processors (Series 2), making it the ultimate foundation for a portable gaming rig or a high-performance desktop. Compact Design, Uncompromised PowerRobust Power Delivery: Despite its diminutive size, it features a heavy-duty 8+1+1 power stage VRM layout with high-quality alloy chokes and durable capacitors, ensuring stable power delivery for sustained, high-load gaming sessions. Blistering DDR5 Speeds: Equipped with two DIMM slots supporting dual-channel DDR5 memory, utilizing advanced trace routing to unlock extreme overclocking frequencies well beyond standard speeds. Next-Gen Expansion & Storage: Features a reinforced PCIe 5.0 x16 slot ready for the most demanding modern graphics cards. For storage, it crams twin M.2 slots onto its compact PCB—including a high-speed PCIe 5.0 channel—shattering loading screens. Thermal Mastery & ConnectivityPremium Cooling: Built with an integrated I/O shield, substantial VRM heatsinks, and a dedicated M.2 heatsink assembly to keep thermals under tight control inside cramped mini-ITX chassis. Pro-Grade Networking: Onboard Wi-Fi 6E or Wi-Fi 7 capabilities (depending on regional deployment) combined with Intel 2.5Gb Ethernet guarantee ultra-smooth, low-latency online gaming and seamless streaming. Rich Audio and I/O: Packed with ultra-fast USB 3.2 Gen 2x2 Type-C ports and powered by ROG SupremeFX audio, it delivers immersive, high-fidelity sound without needing a dedicated sound card.
