| Key Feature | ||
| Certification | 80Plus Gold | |
| Efficiency (Approx.) | 80Plus Gold | |
| Fan Size | 135 Mm | |
| Modular Type | 80Plus Gold | |
| Maximum Load | 20A 20A 70A 0.3A 3A | |
| Output | ||
| Output | 850W | |
| Voltage | +3.3V +5V +12V -12V +5Vsb | |
| Connectors | ||

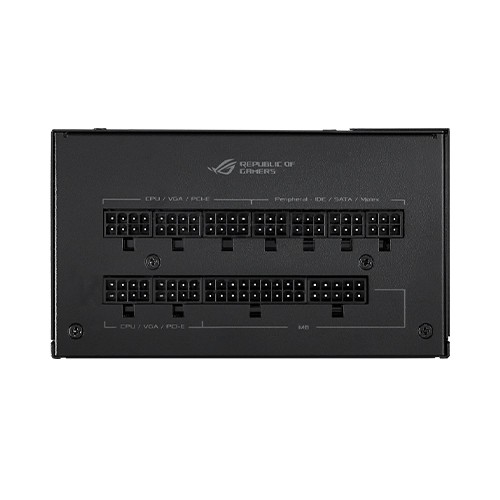

| Connector | MB 24/20-Pin X 1 CPU 4+4-Pin X 2 PCI-E 6+2-Pin X 6 SATA X 8 PERIPHERAL X 6 | |
| Input | ||
| Input | 100-240Vac | |
| Others | ||
| Others | Power Cord X 1 Motherboard Power Cable X 1 (610mm) CPU Cable 1000mm X 2 (1000mm) PCI-E Cable X 3 (675mm) SATA Cable X 2 (810mm/860mm) Peripheral X 2 (450mm) Join The ROG Badge X 2 ROG Logo Magnet X 1 ROG Label X 3 | |
| Physical Specification | ||
| Dimension (L X B X H) | 16 X 15 X 8.6 Centimeter | |
| Weight | Single Card (KG) 1.825 Product Weight (With Packing) (KG) 3.48 | |
| WARRANTY INFORMATION | ||
| Warranty | 10 Years | |

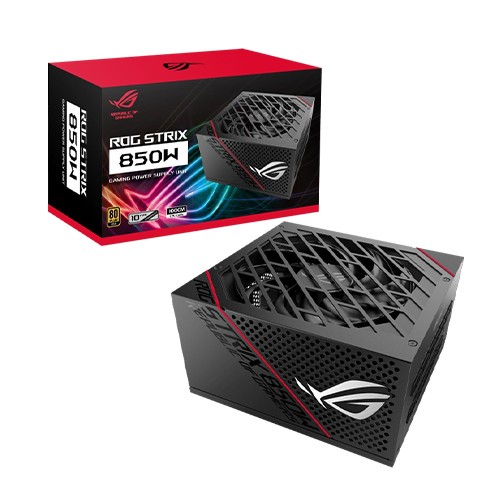

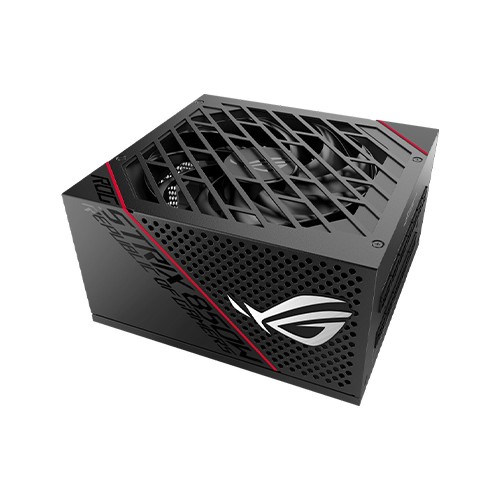

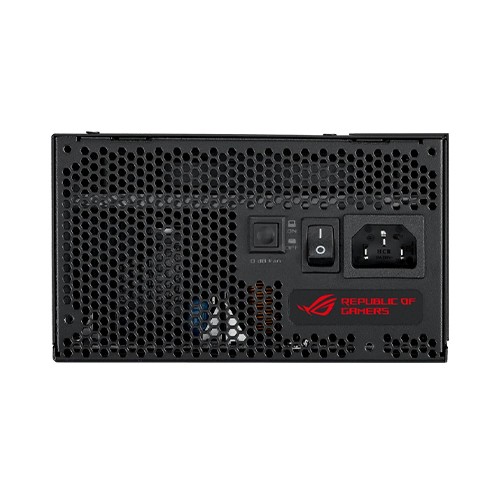

Keep Components Powered With The Quiet Republic Of Gamers Strix 850G 850W 80 PLUS Gold Modular Power Supply In Black From ASUS. Featuring A Single +12V Rail, This 850W ATX Power Supply Provides One Motherboard, Two CPU, Six PCIe, Eight SATA, And Six 4-Pin Peripheral Connectors. Certified 80 PLUS Gold, The ROG Strix 850G Is Also Capable Of 0dB Operation At Below 40% TDP. All Cables Are Fully Modular, And The Motherboard, CPU, And PCIe Cables All Feature Embedded Capacitors To Reduce Voltage Ripple. In Addition To A Motherboard, Two CPU, Three PCIe, Two SATA And Two 4-Pin Cables, And A Power Cable, This PSU Also Comes With Two ROG Badges, A Logo Magnet, And Three ROG Labels For Customizing Its Look.
ROG Heatsinks
The Integrated ROG Heatsinks Are Designed To Provide Lower Temperatures Inside The PSU, While Also Expandiog The Lifespan Of Components And Allowing For Higher-Range 0dB Operation.
Axial-Tech Fan Design
Axial-Tech Fan Design Features A Smaller Fan Hub, Longer Blades, And A Barrier Ring That Increases Downward Air Pressure. This Allows The 135mm Fan To Keep Things Cool At Low RPMs While Producing Less Noise.
Dual Ball Fan Bearings
This PSU Uses A Dual Ball Bearing Setup, Intended To Last Up To Twice As Long As A Sleeve Bearing Design.
0dB Technology
An Onboard Controller Brings The 135mm Fan To A Standstill When Thermal Design Power, Or TDP, Is Below 40%, Facilitating Light Gaming In Relative Silence. Above 40% TDP, The Fans Automatically Start Up Again.

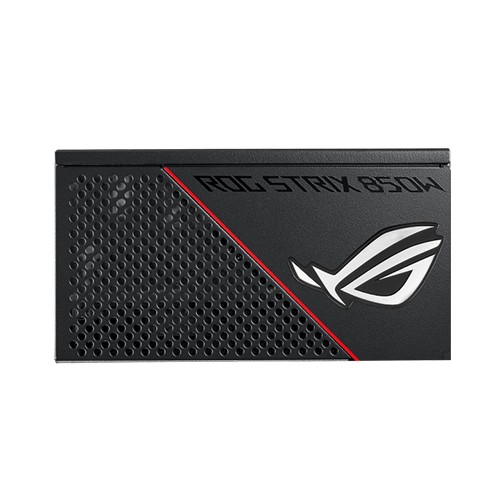

Cosmetic Customization
Getting Everything Looking Right Can Be A Challenging Aspect Of Any Setup. The ROG Strix Series PSUs Aim To Make Your Life A Little Easier With A Convenient Magnetic Logo And Stickers That Help You Reskin The Visible Side To Your Liking.
