| BASIC INFORMATION | ||
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
|
| Basic Information | ||
| Chipset | Intel Z790 Chipset | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port | 1 x DisplayPort | |

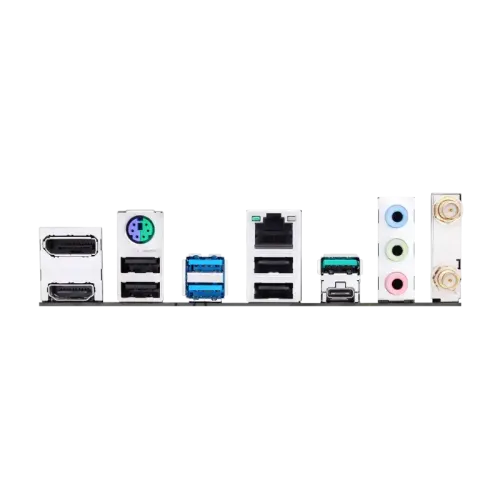

| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN | 1 x Realtek 2.5Gb Ethernet | |
| Wireless | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 | |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

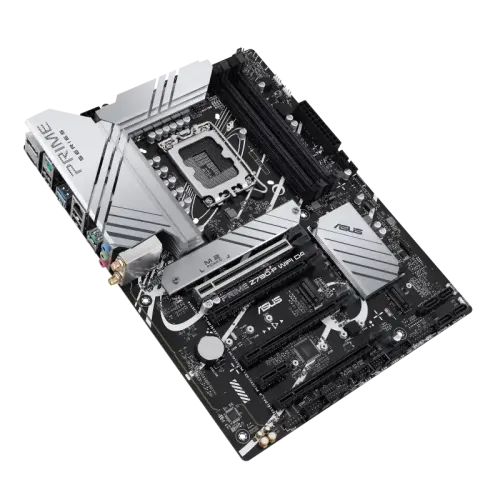

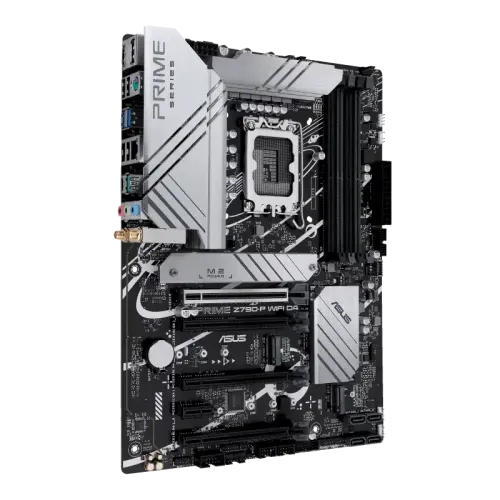

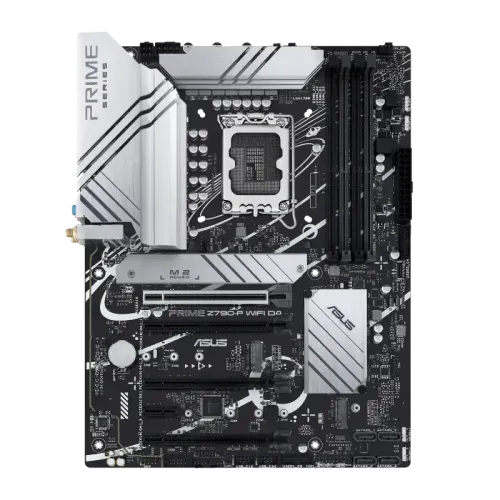

ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard
ASUS PRIME Z790-P WIFI D4-CSM Motherboard comes with LGA 1700 socket and Z790 chipset. It supports 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The motherboard has 4x DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. ASUS PRIME Z790-P WIFI D4-CSM also supports 3 x M.2 slots and 4 x SATA 6Gb/s ports so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot supports resource-intensive graphics cards, while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slots offer a wide range of utility cards. A variety of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 back panel ports and internal headers serve a wide range of peripherals, from low-powered devices like mouse, keyboards, and controllers to resource-intensive devices like external drives and storage arrays. The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard's embedded Bluetooth 5.2 technology can also be used to provide a cable-free experience for wireless devices. Connect to your wireless network using Wi-Fi 6 (802.11ax), or utilize the included 2.5 Gigabit Ethernet port if a cable connection is preferred.
Enhanced Power Solution
The ASUS PRIME Z790-P WIFI D4-CSM delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 14+1 DrMOS, ProCool sockets, alloy chokes, and robust capacitors.
Comprehensive Cooling
The PRIME Z790-P WIFI D4-CSM motherboard has a large VRM heatsink for capacitors and chokes, as well as integrated M.2 heatsinks and backplates for greater thermal performance and throttling prevention. Fan Xpert 4 software and hybrid fan headers control fans and liquid cooling elements for increased cooling that may be customized.
Robust Connectivity
The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard provides reliable connectivity for your peripherals via the backplate and internal headers. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports support data transfer rates of up to 5 and 10 Gb/s, respectively, making them appropriate for webcams, microphones, and external storage devices. The USB-C 3.2 Gen 2x2 connector supports data transfer rates of up to 20 Gb/s for resource-intensive devices such as storage arrays and audio interfaces. With an inbuilt Thunderbolt 4 header, you may increase your connectivity and use high-speed networking that supports rapid transfer speeds and Power Delivery technologies.
