| BASIC INFORMATION | ||
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 21.1cm |
|
| Basic Information | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. 3 x Audio jacks |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port 1 x HDMI port (Support 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port | 1 x D-Sub port | |

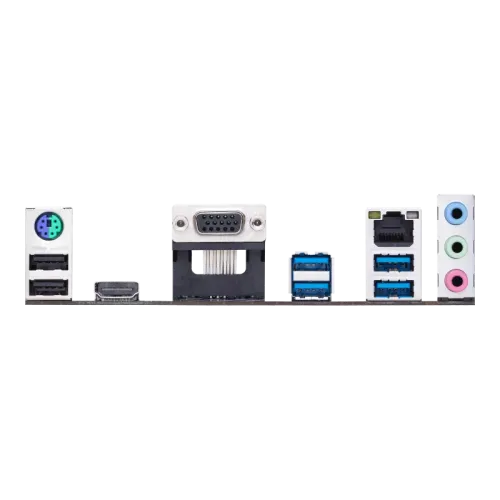

| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN | 1 x Realtek 1Gb Ethernet | |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design ASUS Lighting Control -RGB header |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

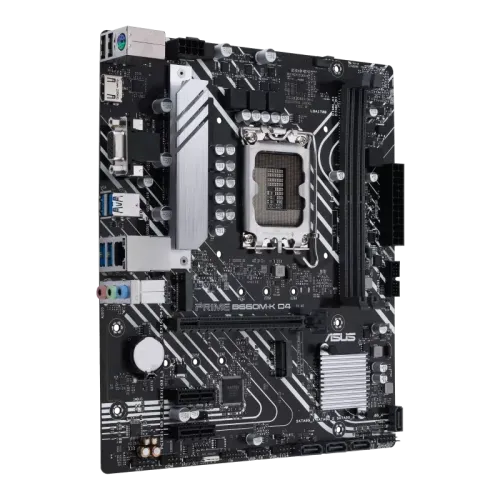

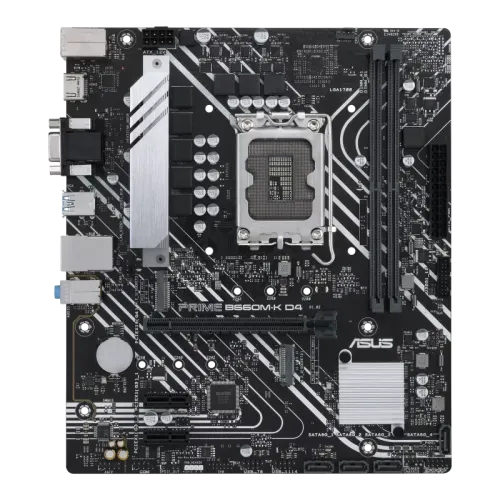

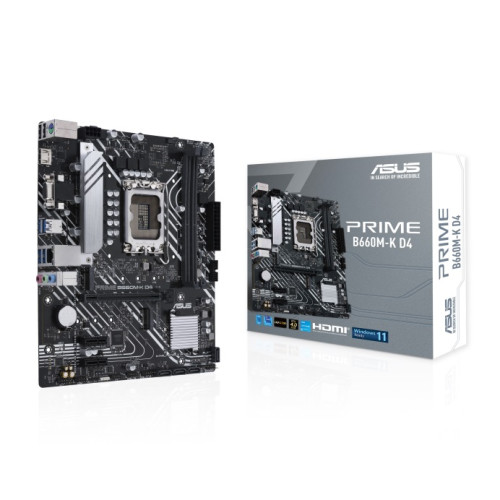

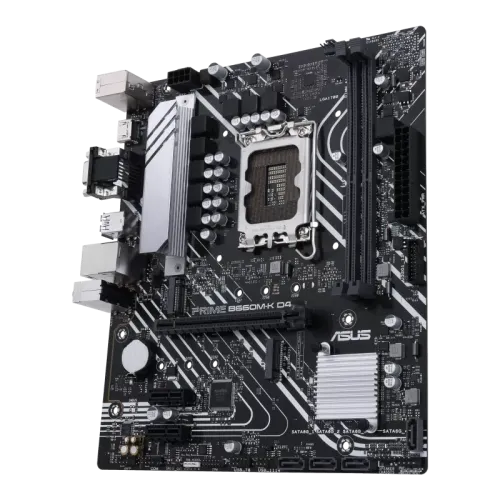

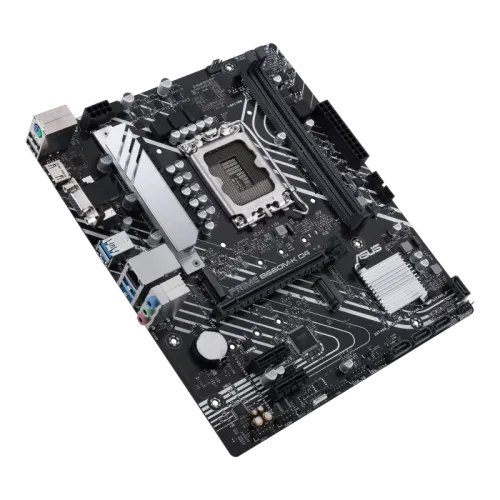

The ASUS PRIME B660M-K D4 is a microATX motherboard designed for 12th generation Intel Core processors, Pentium Gold, and Celeron processors. It offers a compact form factor without compromising on features and performance.The motherboard features a Realtek 7.1 Surround Sound High Definition Audio CODEC, providing high-quality audio output. It supports jack-detection, multi-streaming, and front panel jack-retasking. Please note that for 7.1 surround sound audio output, a chassis with an HD audio module in the front panel is required. The motherboard includes three audio jacks for convenient audio connectivity.With a 128Mb Flash ROM and UEFI AMI BIOS, the motherboard provides a reliable and user-friendly BIOS interface. It also comes bundled with ASUS exclusive software, including Armoury Crate for system optimization, AI Suite 3 for performance and power management, and TurboV EVO, EPU, and DIGI+ VRM for enhanced control over system parameters. Other bundled software includes ASUS CPU-Z, Norton Anti-virus software (free trial version), and WinRAR.Equipped with a D-Sub port and an HDMI port, the motherboard supports flexible display options. The HDMI port supports 4K@60Hz resolution as specified in HDMI 2.1, delivering crisp and vibrant visuals.Internal I/O ports include fan and cooling headers for efficient temperature management, power connectors, storage connectors, USB headers, and various other headers for easy connectivity. The motherboard also features a SPI TPM header for trusted platform module integration.The ASUS PRIME B660M-K D4 supports up to 64GB of DDR4 memory across two DIMM slots. It offers a dual-channel memory architecture and supports Intel Extreme Memory Profile (XMP) for easy memory overclocking.The motherboard provides reliable networking capabilities with a Realtek 1Gb Ethernet port. It ensures stable and fast internet connectivity for your system.Storage options include two M.2 slots (Key M) and four SATA 6Gb/s ports, offering ample storage expansion possibilities. The M.2 slots support PCIe 4.0 x4 mode for faster data transfer speeds. The motherboard also supports Intel Rapid Storage Technology for efficient storage configurations.With ASUS 5X PROTECTION III, including DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, and stainless-steel back I/O, the motherboard ensures durability and protection for long-term use. It also features ASUS Q-Design for easy installation and ASUS Thermal Solution with a VRM heatsink design for effective heat dissipation.Backed by a 3-year warranty, the ASUS PRIME B660M-K D4 12th Gen Micro ATX motherboard provides a reliable and efficient foundation for your system. Its compact size, versatile features, and stable performance make it an excellent choice for various applications and computing needs.
