| Video Memory Specifications | ||
| Memory Size | 4GB | |
| Memory Type | GDDR6 | |
| Resolution | 7680 X 4320 | |
| Memory Bus (Bit) | 64-Bit | |
| Interface (PCI Express) | - PCI Express 4.0 X4 | |
| Memory Clock | 18 Gbps | |
| Stream Processors | 1024 | |
| Power Specifications | ||
| Power Connector (Pin) | 1 X 8-Pin | |
| Recommended Power Supply | 400W | |
| Display Option | ||
| Multi Display | 2 | |

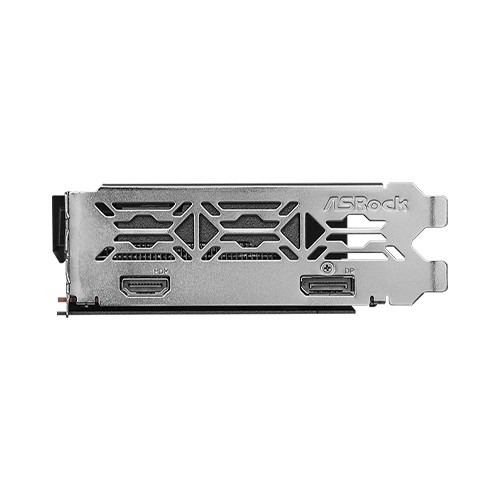

| Ports | 1 X HDMI™ 2.1 1 X DisplayPort™ 1.4a HBR3 / DSC |
|
| General | ||
| Engine Clock | - Boost Clock: Up To 2820 MHz - Game Clock: Up To 2650 MHz - Base Clock: 2365 MHz |
|
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | - 240 X 129 X 42 Mm | |
| WARRANTY INFORMATION | ||
| Warranty | 2 Years | |

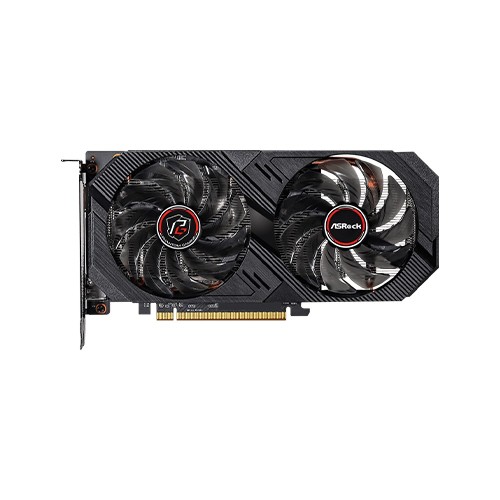

Two Fans That Provide Strong Cooling Performance And Make Your Gaming Rig Stay Cool. It’s Optimized For Delivering Excellent Gaming Experience With Stylish And Streamlined Design.
Striped Axial Fan Designed For Enhanced Airflow.
ASRock’s Custom Striped Axial Fan Delivers Enhanced Airflow To Optimize Cooling From Not Only The Stripe Structure On Each Fan Blade But Also The Polishing Surface On The Bottom Side.

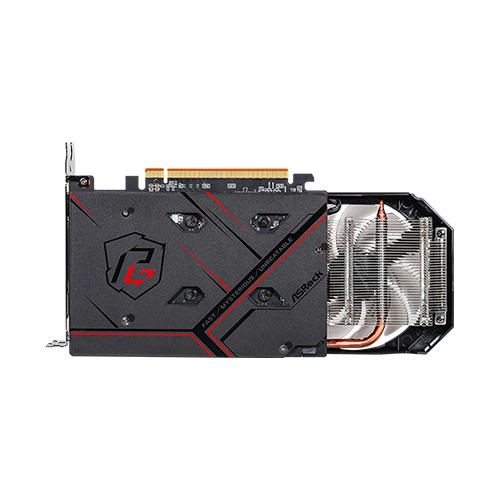

Stylish Metal Backplate
With The Phantom Gaming Look, The Stylish Metal Backplate On The Phantom Gaming Graphics Cards Makes It More Fancy In Visual And Solid In Construction. Otherwise, The Thermal Pad At The Backside Also Helps To Enhance The Thermal Efficiency.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
The Fan Spins When The Temperature Goes High For The Optimal Cooling, And Stops When The Temperature Goes Low For The Complete Silence.
Nano Thermal Paste Perfect Thermal Teamwork.
Eliminate The Gaps In The Contact Area To Maximize Heat Transfer And Thermal Efficiency.
Step Up To Better 1080p Performance

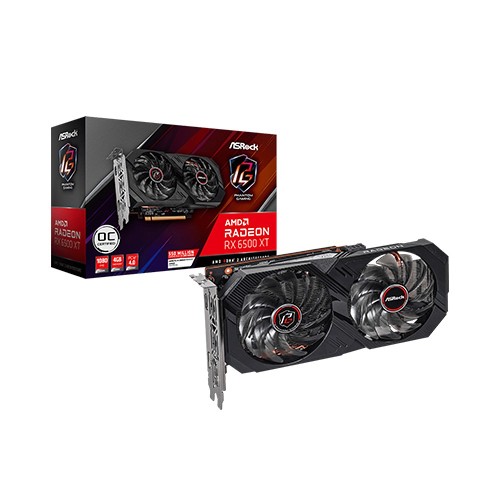

The Radeon™ RX 6500 XT Graphics Card, Built On The Revolutionary AMD RDNA™ 2 Architecture, Delivers Impressive 1080p Performance In Both AAA And Esports Titles.
AMD RDNA 2
AMD RDNA™ 2 Architecture Introduces Significant Architecture Advancements In The Form Of An Enhanced Compute Unit, New Visual Pipeline, And AMD Infinity Cache™ Technology, Enabling High Resolution Gaming Performance With Vivid Visuals.
AMD FidelityFX Super Resolution
Get A Boost In Frames In AMD FidelityFX™ Super Resolution1 Supported Games For A High-Quality, High-Resolution Gaming Experience.
Vivid Visuals
Get Pulled Into The Action With The Latest Visual Technologies, Powered By AMD FidelityFX™2 And DirectX® 12 Ultimate With DirectX® Raytracing.
Premium Thermal Pad Better Heat Transfer.
The Premium Thermal Pad Helps To Transfer The Heat Of The Components To The Heatsink, Improving Heat Dissipation.
Precise Screw Torque Optimized Mounting Pressure.
ASRock Adopts Precise Screw Torque When Assembling Its Graphics Cards To Optimize The Cooler Mounting Pressure To Improve Thermal Efficiency While Avoiding Damage To GPU Die.
