| BASIC INFORMATION | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
|
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm, Solid Capacitor design |
|
| Basic Information | ||
| Chipset | AMD A520 | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection |
|
| CPU | Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors); 6 Power Phase design |
|
| Memory | ||
| Memory | Type: Dual Channel Memory Architecture, Slots: 2 x DIMM slots, Supported Memory: AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, Maximum Memory: 64GB |
|
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
|
| Graphics | ||
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, DirectX 12, Pixel Shader 5.0, Shared memory default 2GB. Max Shared memory supports up to 16GB., Three graphics output options: D-Sub, DVI-D and HDMI, Supports Triple Monitor, Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz, Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz, Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI, 2.1 Port (Compliant HDMI monitor is required), Supports HDR (High Dynamic Range) with HDMI 2.1, Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports, Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port, Supports Microsoft PlayReady |
|
| Connector & Ports | ||

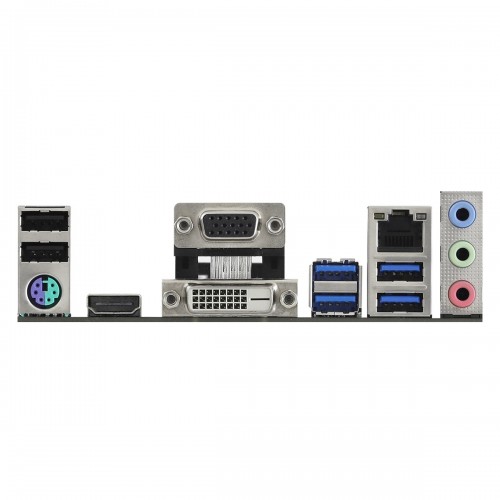

| HDMI | 1 x HDMI | |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE |
|
| Internal I/O Ports | 1 x COM Port Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin)*, 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**, 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| USB Port | 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

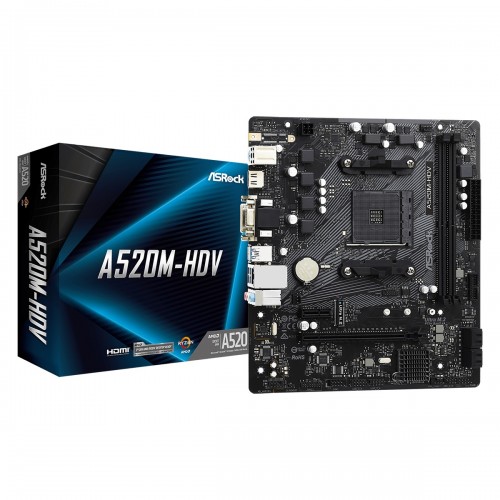

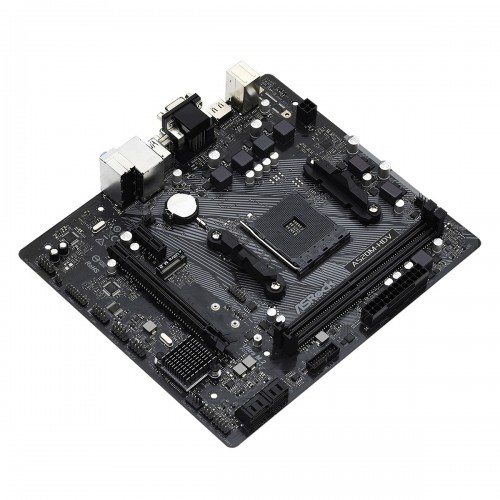

ASRock A520M-HDV Micro ATX AM4 Motherboard Has PCIe Gen3 X4 Ultra M.2 Interface That Pushes Data Transfer Speeds Up To 32Gb/S. In Addition, It Also Supports SATA3 6Gb/S M.2 Modules. ASRock A520M-HDV Supports The Most Recent HDMI 4K 60Hz Graphics Output Specification. With The Larger Bandwidth And Increased Frame Rate, The Motion On Your Screen Becomes More Fluid And Less Blurry. Complete With All Three Types Of Most Used Connectors! Packed With A D-Sub + DVI-D + HDMI Combo. Plus The HDMI Port Supports 4K Resolution. Compared To Traditional Chokes, ASRock’s Premium 50A Power Chokes Effectively Make The Saturation Current Up To Three Times Better, Thus Providing Enhanced And Improved Vcore Voltage To The Motherboard. High-Density Glass Fabric PCB Design That Reduces The Gaps Between The PCB Layers To Protect The Motherboard Against Electrical Shorts Caused By Humidity. Pure Black PCB Appearance. The New Sapphire Black PCB Represents Rock-Solid Quality And Gives The Motherboard A More Mysterious Touch. Some Sensitive Digital Components On The Motherboard Are Vulnerable To Power Surges, The Excessive Current May Cause Your System To Malfunction Immediately. ASRock Full Spike Protection Includes Various Technologies To Prevent Your Motherboard’s Components From Being Damaged By These Unexpected Voltage Spikes. ASRock Live Update & APP Shop Is Designed For Your Convenience. We Provide Various Apps And Support Software For Users To Download. You Can Also Easily Optimize Your System And Keep Your Motherboard Up To Date With ASRock Live Update & APP Shop.
