| Key Feature | ||
| Certification | 80 Plus Platinum | |
| Efficiency (Approx.) | At 20% / 50% / 100% Load AC 115V Internal, The Power Efficiency Should Be At Least 90% / 92% / 89%. | |
| Fan Size | 135 X 135 X 25(Mm) | |
| Fan | FDB Silent Fan | |
| Frequency | 47Hz ~ 63Hz | |
| Modular Type | Fully Modular | |
| Output | ||
| Output | 2.12 Kgs | |
| PSU Form Factor | ATX 12V 2.4 | |
| Power | 100-500ms | |
| Connectors | ||
| Connector | 1 X MB 24(20+4) Pin 2 X 8(4+4) Pin EPS 12V 12 X 8(6+2) Pin PCI-E 14 X SATA 5 X Molex 1 X FDD | |
| Input | ||
| Current | 15A ~ 7.5A | |
| Input | 100-240 | |
| Others | ||
| Others | Protection: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO APFC PFC At Half / Full Load: >0.95 At AC 110v 60Hz(Typical) >0.90 At AC 230v 50Hz(Typical) | |
| Physical Specification | ||
| Dimension (L X B X H) | 150 X 170 X 86mm | |
| Weight | 2.12 Kgs | |
| WARRANTY INFORMATION | ||
| Warranty | 10 Years | |

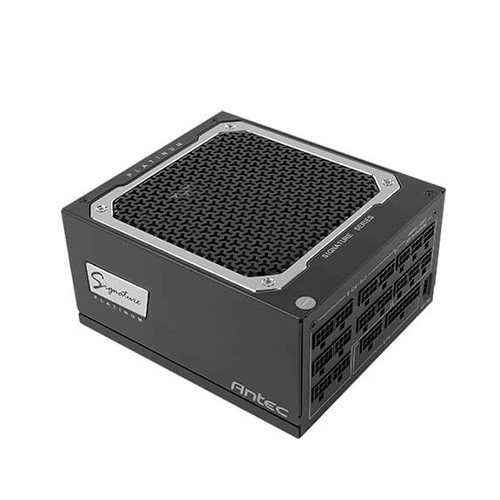

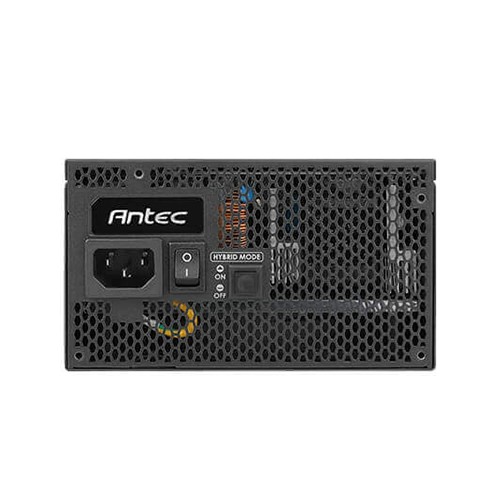

Antec Signature Platinum 1300 Power Supply
Antec Signature Platinum 1300 Power Supply Equipped With Superior Features That Ensure Peak Performance For The Enthusiast And Gaming-Oriented Segment, The Signature Power Supply Series Boasts Unparalleled Stability And 80 PLUS Platinum-Certified Efficiencies. Advanced Thermal Control With The Zero RPM Mode Enables The Optimal Balance Between Silence And Cooling. The Circuit Shield Suite Of Industrial-Grade Protections Ensures That The Power Delivered To Your System Is Safe And Reliable In Any Environment. Signature Series Are A Great Choice For A Reliable And Efficient PC System For Gamers And Professionals.
