| Basic Information | ||
| CPU | 2 x 8(4+4)pin EPS 12V | |
| Basic Information | ||
| Others | PFC: Active PFC Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, NLO Regulatory: CB / CE / BIS Fan: 120mm Silent Fan |
|
| Key Feature | ||
| Certification | 80 Plus Gold | |
| Fan Size | 120mm Silent Fan | |
| Modular Type | Semi-Modular | |
| Molex | 3 x Molex | |
| Lighting Effect | N/A | |
| Output | ||
| Total Power | 750W | |
| Connectors | ||
| Main Power | 1 x 24(20+4)pin MB | |
| PCI-E | 4 x 8(6+2) Pin PCI-E | |
| SATA | 8 x SATA | |
| Input | ||
| Current | 4A Max | |
| Frequency Range | 50Hz | |
| Voltage | 200V-230VAC | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 5 Years | |

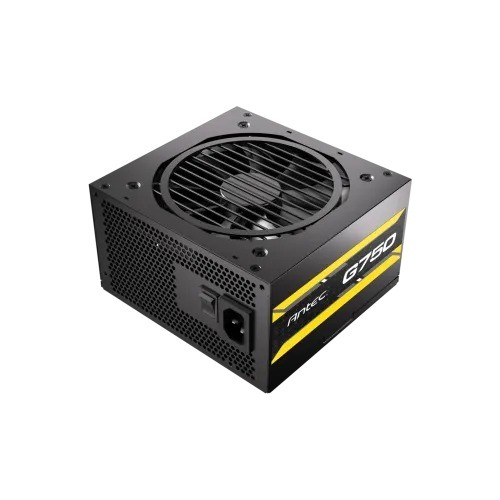

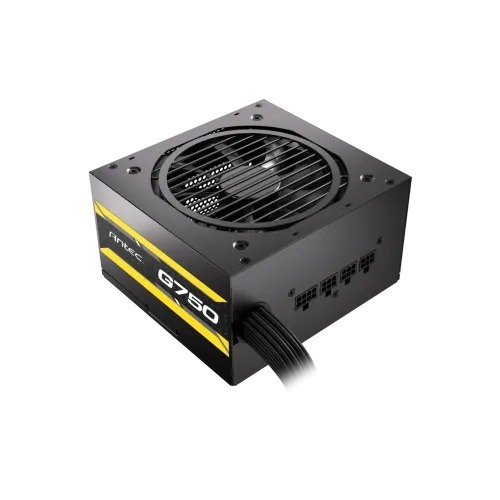

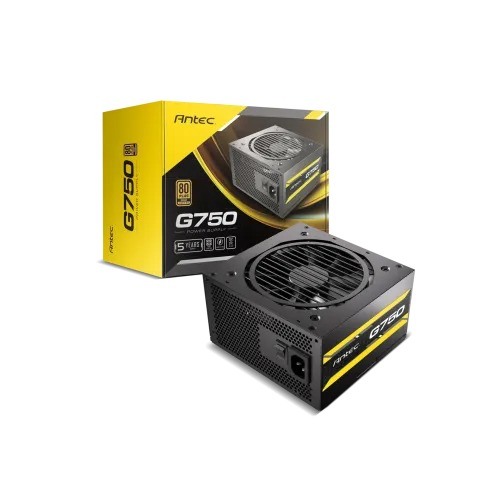

Antec G750 750W 80 Plus Gold Semi Modular Power Supply
The Antec G750 is a 750-watt, 80 Plus Gold certified, semi-modular power supply unit (PSU) designed to deliver reliable and efficient power to your system. Below are its key specifications:
Specifications:
Model: G750
Type: ATX 12V 2.53
Modularity: Semi-Modular
Dimensions: 140mm (L) x 150mm (W) x 86mm (H)
Input Voltage: 200V-230VAC
Input Current: 4.5A Max
Input Frequency Range: 50Hz
Power Factor Correction (PFC): Active PFC
Power Good Signal: 100-150ms
Efficiency: Up to 92% under typical loads
Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), No Load Operation (NLO)
Output Capacity: 750W
Operating Temperature: 0~40°C
Regulatory Compliance: CB / CE / BIS
Fan: 120mm Silent Fan
Certifications: 80 Plus Gold
Connectors:
1 x 24(20+4)-pin Motherboard Connector
2 x 8(4+4)-pin EPS 12V Connectors
4 x 8(6+2)-pin PCI-E Connectors
6 x SATA Connectors
3 x Molex Connectors
