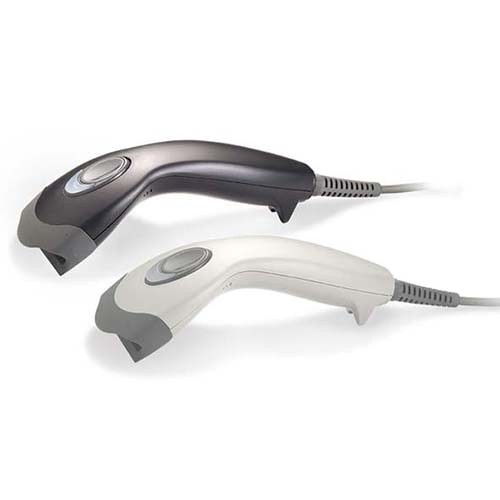

Zebex Z-3100 Barcode Scanner

Zebex Z-3100 Barcode Scanner

♦ Light Source-  617 Nm Visible Red LED

♦ Optical System-  Linear CCD Array

♦ Microprocessor-  32 Bit

♦ Depth Of Field-  0 – 300 Mm (UPC/EAN 100%, PCS=90%)

♦ Scan Angle-  42°

♦ Scan Rate-  330 Scans Per Second

♦ Minimum Bar Width-  0.1 Mm (4 Mil) (0.07 Mm Actually) (Code 39, PCS=90%); More Than 100 Mm On 0.125 Mm Barcode

♦ Print Contrast-  Min. 30% @ UPC/EAN 100%

♦ Indicators (LED)-  Blue LED

♦ Beeper Operation-  Programmable Tone & Beep Time

♦ System Interfaces-  Keyboard, RS-232, HID USB, USB Virtual COM, Wand

Advanced Middle-Range Handheld CCD Scanner

Z-3100 Is The Upgraded Version Of ZEBEX Middle-Range Handheld CCD Scanner With Faster Scan Rate, Longer Scanning Depth And Better Decoding Ability. At A Superior Rate Of 330 Scans Per Second, ZEBEX Proprietary Ultrascan Hardware Decoding Technology Empowers Z-3100 To Decode The Majority Of 1D Barcodes As Well As GS1 DataBar. It Has Working Range Up To 300 Mm And Is Able To Decode A Barcode Wider Than 102 Mm.

• Proprietary Ultrascan Decoding Technology

• Streamline Design And Large Trigger For Effortless Operation

• 32 Bit Micro Processor Unit

• Analog Image Capture Technology

• Support Presentation Scan Mode

• 0 – 100,000 Lux Light Immunity
