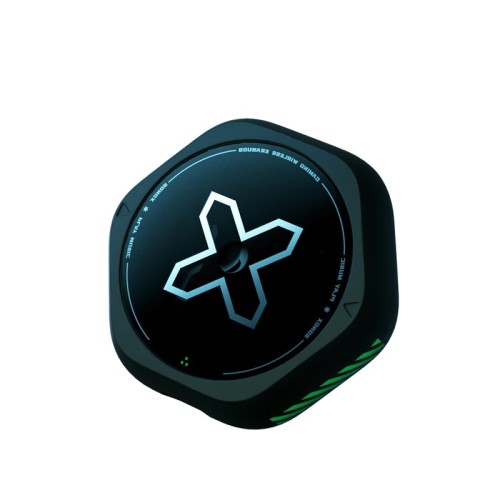

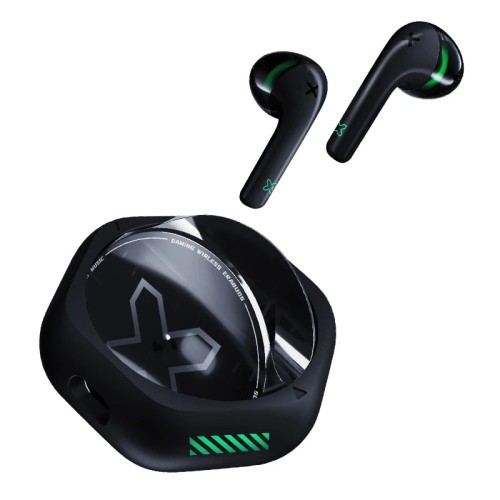

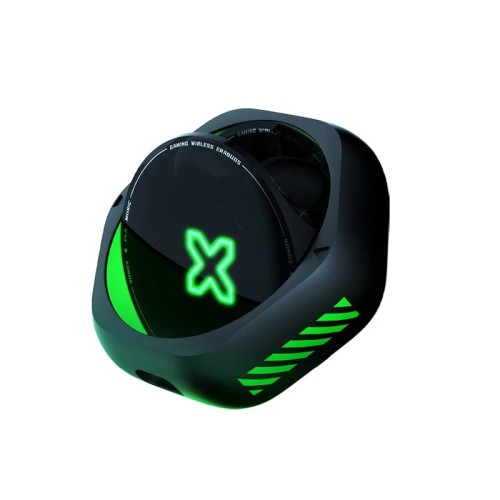

SX10 Games-Playing True Wireless TWS Earbuds

• Charging Pod Rotating Design

• Super sound quality with dynamic driver

• Fabulous looks with unique star-ring design and high quality steel housing by MIM

• Support talking in stereo mode

• Transmission range over 10 meters

• Sensor touch control

• Water proof IPX 5

• Auto power off within 3 minutes when no input

• Ultra light weight for comfortable fitting

• Initial auto pairing or earphones when taken out from charging case

Product Features:

Bluetooth version

5.2 + DER, BLE

Frequency

20Hz-20kHz

Supported Protocol

Handset, Hands-free,A2DP,AVRCP,SBC,AAC

Chipset

AB1635U

Battery capacity

Earphone:40mAh * 2 charging pod:400mAh

Charging input

5V/1A

Charging output

5V/0.5A

Music time

About 5 hours

Talking time

About 3 hours

Standby time(double earphone)

70~100 hours

Charging time

Earphone: about 1 hour

charging pod: about 2.5 hours

Waterproof

IPX4

Headphone output power

≤2.0mW

Working Distance

Over 10m (Barrier-free space)

Master-slave switch

A. When the master earphone in the pod and the cover closed for about 5s, master-slave switch will be performed

B. When the left and right earphone are worn at the same time, when the power of the master earphone is less than 20% and the

power of the slave earphone is 10% larger than the power of the master ear, the master-slave switch will be performed;

Button

G-SENSOR button

Microphone S.P.L

-42±1dB

Speaker

Φ6.0MM, 32Ω

Speaker Sensitivity

105+/-3dB

LED

Earphone: 1* white LED

Charging pod: 3* LED, red, green and white

Red: 0-30% power

White: 30-70% power

Green: 70-100% Auto-off after 5s green lights on

Interface

Charging pod: TYPE-C

Antenna

FPC antenna

Earphone Materials

Silicone earplugs

SUS/PC+ABS shell material

Charging pod materials

PC+ABS shell material, Aluminum alloy

Earphone size

13mm Diameter

Support

SBC, AAC

Weight

Single earphone weight: 4g * 2 charging pod: 42.6g
