| BASIC INFORMATION | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Form Factor | M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
|
| Basic Information | ||
| Chipset | AMD B520 | |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Memory | ||
| Slots | 2x DDR4 memory slots | |
| Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
|

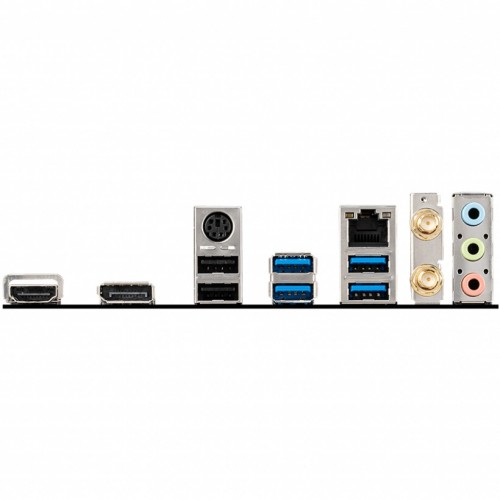

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz | |
| Supported Storage | AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper |
|
| USB Port | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 year | |
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. This next-generation Intel Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
