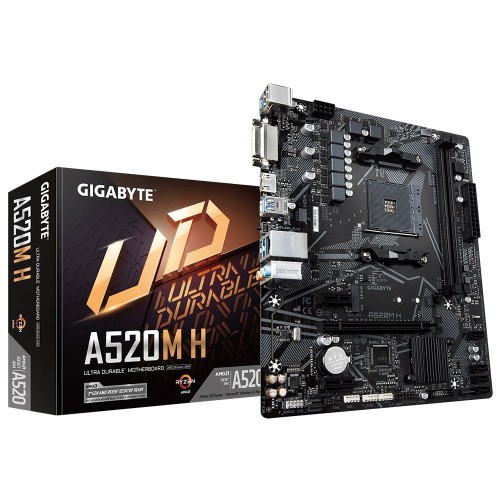

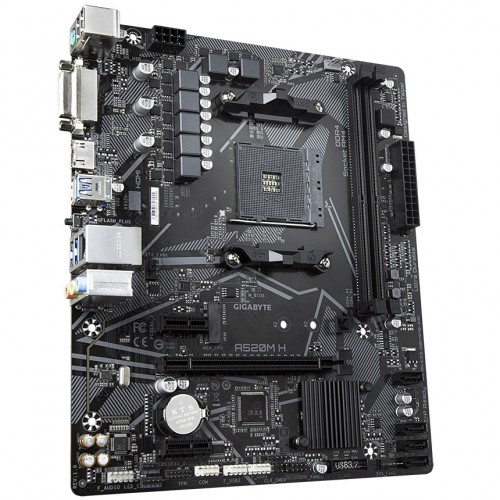

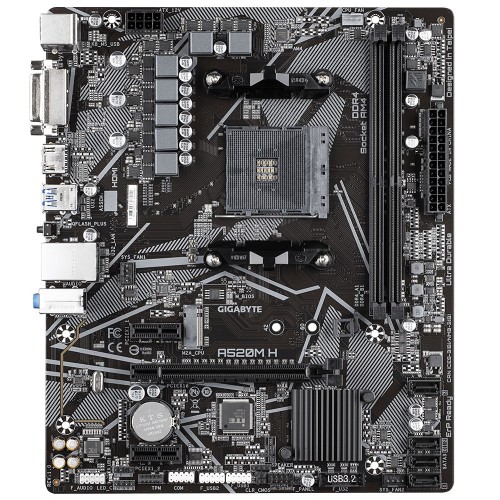

Gigabyte A520M H AM4 Micro ATX Motherboard

Gigabyte A520M H AM4 Micro ATX Motherboard

The Gigabyte A520M H AM4 Micro ATX Motherboard is a reliable and cost-effective solution designed to support AMD Ryzen processors. With its AMD A520 chipset, this motherboard provides a stable platform for building a powerful yet compact system for a variety of computing needs.The motherboard's Micro ATX form factor (24.4cm x 20.5cm) makes it suitable for smaller cases, making it an excellent choice for space-constrained setups without compromising on performance and functionality.The A520M H motherboard supports a wide range of AMD Ryzen processors, including the Ryzen 5000 Series and 3rd Generation Ryzen processors, as well as the 3rd Generation Ryzen processors with Radeon Graphics. This versatility allows users to choose the processor that best fits their requirements, whether it's for gaming, content creation, or everyday computing tasks.For memory, the motherboard features two DIMM slots that support DDR4 RAM with varying frequencies. The supported memory modules range from standard frequencies of 2133MHz to impressive overclocked speeds like 5100MHz (OC) for 3rd Gen AMD Ryzen processors. The dual-channel memory architecture enhances data access speeds and overall system performance, and users can take advantage of Extreme Memory Profile (XMP) memory modules for easy overclocking.In terms of graphics, the A520M H motherboard is equipped with integrated graphics capabilities for 3rd Generation AMD Ryzen processors with Radeon Graphics. It provides connectivity options for DVI-D and HDMI ports, allowing for high-resolution displays up to 4096 x 2160 @60Hz, making it suitable for multimedia and casual gaming needs.For storage, the motherboard offers several options, including a CPU M.2 connector that supports SATA and PCIe 3.0 x4/x2 SSDs, enabling lightning-fast data access and transfer speeds. Additionally, the chipset provides four SATA 6Gb/s connectors, supporting RAID 0, RAID 1, and RAID 10 configurations for data redundancy and performance optimization.On the connectivity front, the A520M H motherboard offers a variety of internal I/O ports, including USB headers, system fan headers, and front panel headers, ensuring seamless integration with other components and peripherals. The onboard Realtek GbE LAN chip provides reliable and fast Ethernet connectivity for smooth online experiences.Audio quality is not compromised, as the motherboard incorporates a Realtek Audio CODEC, delivering High Definition Audio with support for 2/4/5.1/7.1-channel configurations, ensuring immersive and clear sound output.Gigabyte also includes a 128 Mbit flash BIOS with licensed AMI UEFI BIOS, providing a user-friendly interface for system configuration and updates.With a 3-year manufacturing warranty, the Gigabyte A520M H AM4 Micro ATX Motherboard offers peace of mind and assurance of its quality and reliability.

Features:

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
• 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Anti-Sulfur Resistors Design
