| Basic Information | ||
| Special Features | 4x EZ Debug LED | |
| Basic Information | ||
| Type | DDR5 | |
| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors |
|
| Chipset | AMD B650 | |
| Form Factor | ATX |
|
| Audio | Audio Connectors | |
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot |
|
| Memory | ||
| Slots | 4 DIMMs | |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| Wireless Communication module | AMD Wi-Fi 6E |
|
| LAN Port (s) | Realtek 8125BG 2.5G LAN | |
| USB (s) | 4x USB 2.0 (Front) |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
|
| Supported Storage | 2x M.2 |
|
| Internal I/O Ports | INTERNAL IO: |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

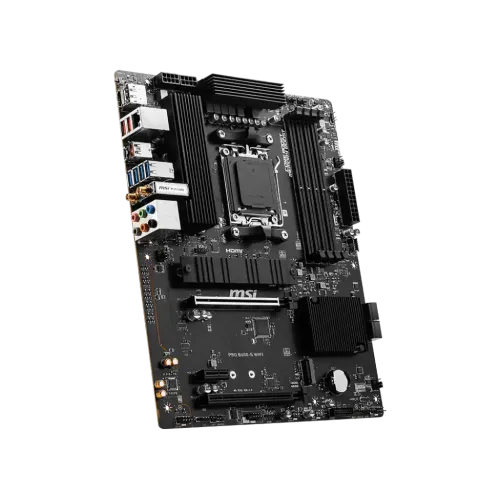

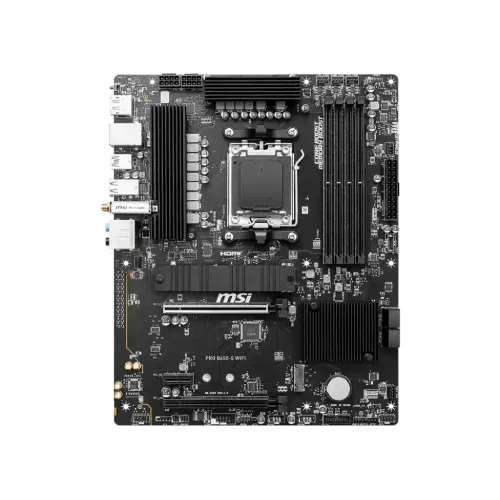

The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a powerhouse built to handle AMD Ryzen 7000 Series Desktop Processors, providing compatibility with the most recent and powerful CPUs on the market. DDR5 memory compatibility, providing high-speed data transmission with dual-channel DDR5 7200+MHz (OC), is one of its cutting-edge characteristics. With a 12+2 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost, the Motherboard has an upgraded power architecture that ensures reliable and efficient power supply for best performance. Its premium thermal solution includes 7W/mK MOSFET thermal pads and M.2 Shield Frozr, resulting in a high-performance system with efficient heat dissipation. The motherboard's high-quality 6-layer PCB, constructed of 2oz thicker copper, improves longevity and stability, laying the groundwork for heavy workloads. The MSI PRO B650-S WIFI Motherboard has PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 connections to meet the needs of current gaming and data-intensive applications. The motherboard provides an improved network solution with 2.5G LAN and Wi-Fi 6E, giving a secure, reliable, and fast network connection suited for both professional and multimedia applications. The introduction of AUDIO BOOST offers a greater gaming experience with studio-grade sound quality, boosting total immersion for players. In conclusion, the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a feature-rich option that delivers a strong, dependable foundation for gamers and professionals looking for top-tier performance and functionality.
