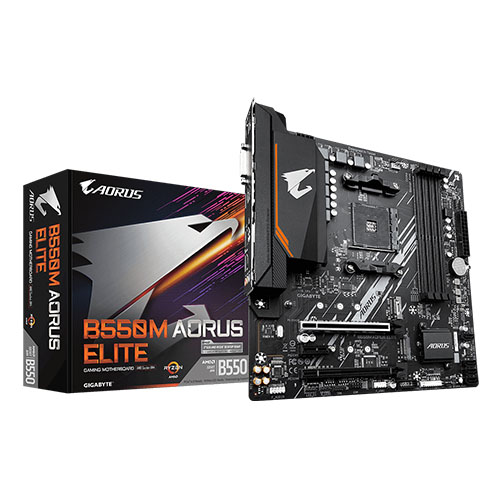

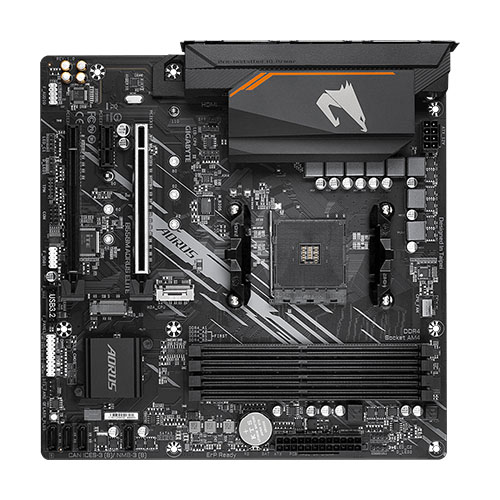

GIGABYTE B550M AORUS ELITE AMD MOTHERBOARD
  • GIGABYTE B550M AORUS ELITE AMD MOTHERBOARD
  • GIGABYTE B550M AORUS ELITE AMD MOTHERBOARD

GIGABYTE B550M AORUS ELITE AMD MOTHERBOARD

Price: Out Of Stock
Status: Out Of Stock
Product Code: 1353
Brand: Gigabyte
Key Features
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Blazing Fast 2.5GbE LAN
  • Q-Flash Plus Update BIOS
  • Ultra Durable PCIe 4.0 x16 Slot
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Basic Information
Chipset AMD B550
Audio Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel
CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd
Generation AMD Ryzen™ with Radeon™ Graphics processors
Memory
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of
system memory

3rd Gen AMD Ryzen™ Processors:

Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/3200/2933/2667/2400/2133 MHz memory modules

New Generation AMD Ryzen™ with Radeon™ Graphics processors:

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) /
3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules
Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key,
type 2242/2260/2280/22110 SSDs:

3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA
and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M
key, type 2242/2260/2280 SSDs:

Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10
Graphics
Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics
processors:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB
Connector & Ports
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

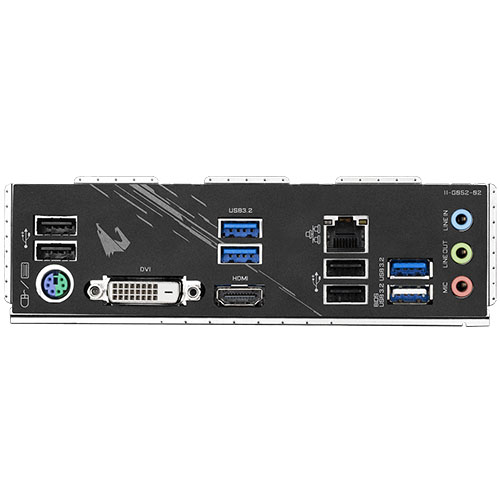

USB Port CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the
internal USB header)
WARRANTY INFORMATION
Manufacturing Warranty 03 years

Description :

GIGABYTE B550M AORUS ELITE AMD MOTHERBOARD

Get ready for those intense gaming marathons with GIGABYTE B550M AORUS ELITE MOTHERBOARD. Designed for Supports 3rd Gen AMD Ryzen™ Processors, this motherboard features the AMD B550 chipset to power gaming, content creation, entertainment, and other intense computing tasks. The Gigabyte AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution. this GIGABYTE B550M Gaming Motherboard also featured PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP,  RGB FUSION 2.0, Q-Flash Plus.

Features:

  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Exclusive 8118 Gaming GbE LAN
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Performance:

GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability

The benefits of AMD StoreMI:

    •  Making the PC experience fast, smooth and easy
    •  Optimizing computer responsiveness from system boot to application launch
    •  Offering SSD performance with HDD capacity at an affordable cost
    • Quickly accessing key files by automatically learning users' computing behaviors
