Gigabyte A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard

Gigabyte A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard

The motherboard features the AMD A520 chipset, providing excellent stability and compatibility with the latest AMD Ryzen processors, including the Ryzen 5000 series and 3rd generation Ryzen processors with Radeon Graphics. This ensures that you can take advantage of powerful CPU performance for gaming, content creation, and productivity tasks.For graphics, the motherboard offers integrated graphics support for the 3rd generation AMD Ryzen processors with Radeon Graphics. It features multiple display outputs, including a DVI-D port, a DisplayPort, and an HDMI port, allowing you to connect up to three displays simultaneously. This provides flexibility for multitasking and immersive visual experiences.The Gigabyte A520M DS3H AC motherboard supports DDR4 memory with four DIMM slots, allowing a maximum capacity of up to 128GB. It supports various memory frequencies, including high-speed overclocked modules, giving you the flexibility to customize your system's memory configuration to suit your needs.

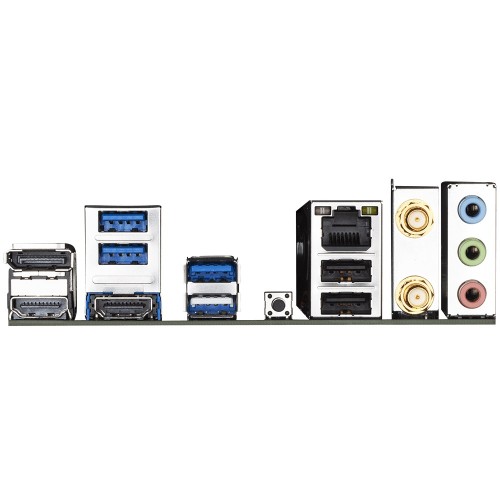

Get gaming-level performance and DisplayPort connectivity with the A520M DS3H AM4 Micro-ATX Motherboard from Gigabyte. Utilizing the AMD A520 chipset, this motherboard is designed for use with CPUs that support the AM4 socket. Install up to 128GB of dual-channel DDR4 RAM across four slots, with speeds up to 4733 MHz supported when overclocking. Storage drives can be installed using four SATA III connectors or an M.2 slot. A graphics card can be installed using the PCIe 3.0 x16 slot, while two PCIe 3.0 x1 slots offer room for further expansion.A rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, as well as a PS/2 combo port for connecting legacy mice or keyboards. DisplayPort, HDMI, and DVI-D outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports are also present on the rear panel. The Gigabyte A520M DS3H AM4 Micro-ATX Motherboard utilizes the Realtek ALC887 audio codec and supports Windows 10 64-bit operating systems.

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

RGB FUSION 2.0

With A520 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.With A520 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Features:

Here are some of the key features of the GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard:

• AMD AM4 Socket: The motherboard is designed to work with the latest AMD Ryzen processors, including the Ryzen 5000 series.
• Ultra Durable Technology: The motherboard features GIGABYTE's Ultra Durable technology, which includes high-quality components such as solid capacitors, low RDS(on) MOSFETs, and overvoltage protection to ensure stable and reliable performance.
• PCIe 3.0 x16 Slot: The motherboard features an ultra-fast PCIe 3.0 x16 slot for high-speed graphics cards.
• Dual M.2 Slots: The motherboard includes dual M.2 slots for high-speed NVMe SSDs, allowing for fast boot and load times.
• AMD StoreMI: The motherboard supports AMD StoreMI technology, which combines the speed of an SSD with the capacity of a traditional hard drive to deliver faster boot times, improved system responsiveness, and quicker application load times.
• High-Quality Audio: The motherboard features high-quality audio with support for 7.1-channel surround sound, providing a rich and immersive audio experience.
• Realtek 8118 LAN Chip: The motherboard includes a built-in Realtek 8118 LAN chip for reliable, high-speed internet connectivity.
• Connectivity Options: The motherboard has a range of connectivity options, including USB 3.2 Gen 1 and Gen 2 ports, HDMI and DVI video outputs, and PS/2 ports for legacy peripherals.
• Dual DDR4 DIMM Slots: The motherboard includes two DDR4 DIMM slots for up to 64GB of system memory, allowing for fast and efficient multitasking.
