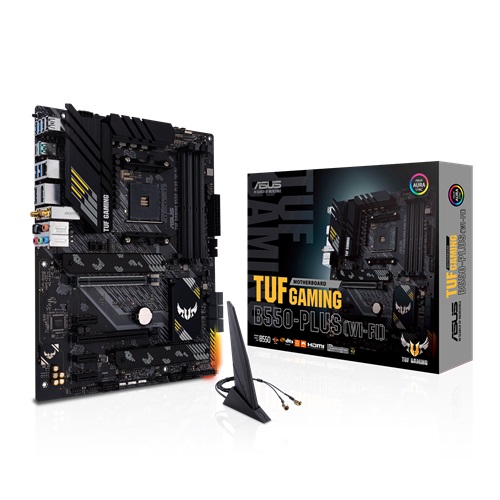

Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard

Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash - 01973167989 / Nagad - 01912167988) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন। প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন । প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদের কে কল করুন (01973167985 / 01673991833) অথবা আমাদের ফেইসবুক পেজে মেসেজ করুন।
Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard
Product code
4553
Brand
ASUS
Product model Asus TUF Gaming B550 Plus
Warranty 03 years
Total Reviews

TBA

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset AMD B550
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking,
up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit
CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
BASIC INFORMATION
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX
Memory
Memory Type:
Dual Channel Memory Architecture
Slots:
4 x DIMM DDR4
Supported Memory:
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/
3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/
2133 MHz Un-buffered Memory *
AMD RyzenT 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/
4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/
3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Maximum Memory:
128GB
Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD RyzenT 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support*2 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Graphics
Graphics 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
Graphics specifications may vary between CPU types.
Connector & Ports
HDMI 1 x HDMI 2.1(4K@60HZ)
LAN Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard
1 x LAN (2.5G) port(s)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices
support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices
support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

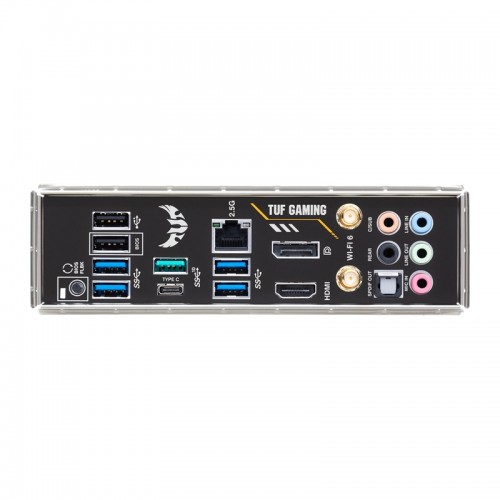

USB Port Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
4 x USB 3.2 Gen 1 port(s)( x Type-A)
2 x USB 2.0 port(s)( x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
WARRANTY INFORMATION
Manufacturing Warranty 3 years

Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard

The ASUS TUF Gaming B550-Plus (Wi-Fi) distils essential elements of the latest AMD platform and combines them with game-ready features and proven durability. It is engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. It comes with upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage. The onboard VRM of TUF Gaming B550-Plus (Wi-Fi) utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package. 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures. The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability. High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink. It supports PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. It comes with an integrated Thunderbolt 3 header that supports up to 40 Gbps of the aggregate interface bandwidth. It features pristine audio with positional cues for FPS gaming and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.



Quick Compare

Product Details
Product Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard Gigabyte X299 AORUS Gaming 3 Motherboard MSI MAG B550M MORTAR WiFi MOTHERBOARD
Image Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard Gigabyte X299 AORUS Gaming 3 Motherboard MSI MAG B550M MORTAR WiFi MOTHERBOARD
Price 18,300৳ 20,020৳ 18,200৳ 27,500৳ 18,800৳ 19,900৳ 18,950৳
Model Asus TUF Gaming B550 Plus B650M-P DDR5 Gigabyte X299 AORUS MAG B550M MORTAR WiFi
Brand ASUS MSI Gigabyte NZXT
Availability Out Of Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.

Write a review

Note: HTML is not translated!
Bad Good

What is the Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard price in bd 2024?
