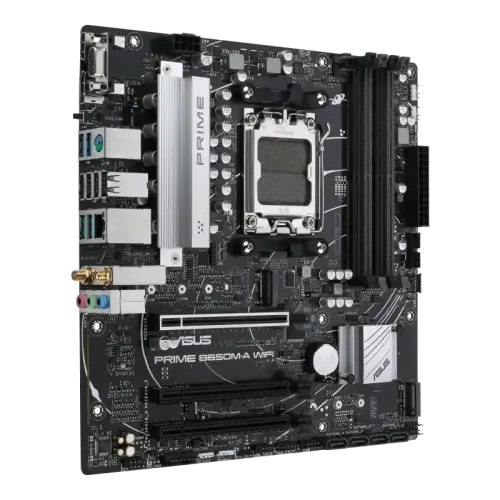

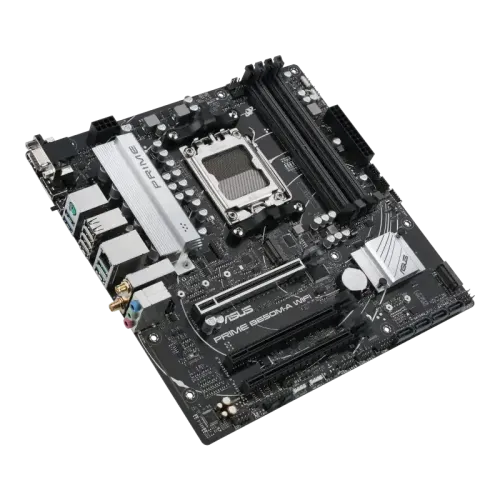

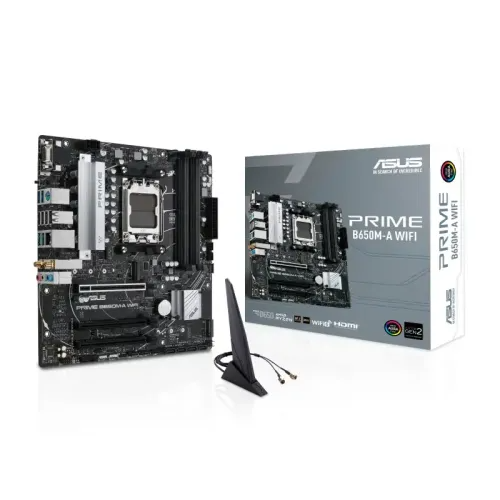

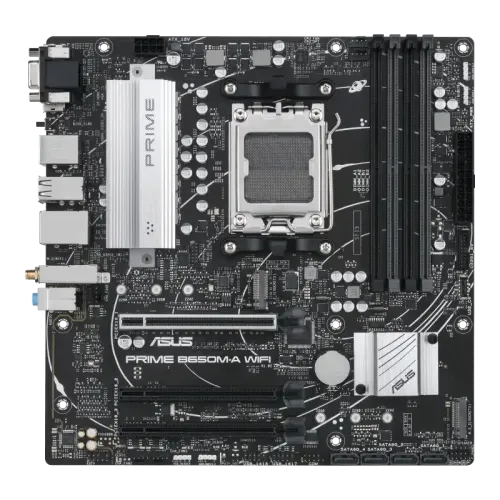

Asus PRIME B650M-A WIFI DDR5 AMD AM5 Micro-ATX Motherboard

Asus PRIME B650M-A WIFI DDR5 AMD AM5 Micro-ATX Motherboard
Product code
11267
Brand
ASUS
Product model PRIME B650M-A WIFI
Warranty 3 Years
Total Reviews

Upcomming

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
BASIC INFORMATION
Supported CPU AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset AMD B650 Chipset
Graphics

1 x DisplayPort**
1 x VGA port
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Audio Audio Connectors
Basic Information
Type DDR5
Expansion Slots
PCI

AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)

Memory
Slots 4 DIMMs
Supported Memory

DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

Maximum Memory 128GB
Connector & Ports
HDMI 1x HDMI
Display Port 1x DisplayPort
Wireless Communication module

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

LAN Port (s) 1 x Realtek 2.5Gb Ethernet
USB (s)

Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Supported Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Internal I/O Ports

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
VGA 1 x VGA port
Others
Bundled Software

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

WARRANTY INFORMATION
Warranty 3 Years

Asus PRIME B650M-A WIFI DDR5 AMD AM5 Micro-ATX Motherboard

The Asus PRIME B650M-A WIFI supports AMD Ryzen 7000-series processors for socket AM5. It has been expertly engineered to unleash the full potential of Ryzen 7000 series CPUs. It comes with a robust power design, comprehensive cooling solutions, and intelligent tuning options. Asus PRIME B650M-A WIFI Motherboard is packed with flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. The motherboard is equipped with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. It has a 6-layer PCB Design. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. It features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. PRIME B650M-A WIFI offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0. It also offers Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C. Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers. The Asus PRIME B650M-A WIFI Motherboard comes with 3 years of warranty.


Quick Compare

Product Details
Product Asus PRIME B650M-A WIFI DDR5 AMD AM5 Micro-ATX Motherboard ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor GIGABYTE H310M S2H ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD
Image Asus PRIME B650M-A WIFI DDR5 AMD AM5 Micro-ATX Motherboard ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor GIGABYTE H310M S2H ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD
Price 0৳ 6,500৳ 5,100৳ 7,490৳ 6,500৳ 7,500৳ 7,000৳
Model PRIME B650M-A WIFI AK-H81M EL 4th GIGABYTE GA-J1800M-D3P H310M S2H
Brand ASUS Arktek Gigabyte Gigabyte
Availability Upcoming In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 2 reviews.

Based on 0 reviews.

Write a review

Note: HTML is not translated!
Bad Good

What is the Asus PRIME B650M-A WIFI DDR5 AMD AM5 Micro-ATX Motherboard price in bd 2024?

The ASUS PRIME B650M-A WIFI Motherboard price in BD is 0৳. In today's market on 12-04-2024. The ASUS PRIME B650M-A WIFI Motherboard is Upcoming now in our store (Call us to know about details of this product). 6 customer buy this product From 1246 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order ASUS PRIME B650M-A WIFI online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
