| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit |
|
| CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
|
| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Memory | ||
| Slots | 4 x DDR4 memory slots | |
| Memory | Type: Dual Channel Memory Architecture, Slots: 4 x DDR4 memory slots, Supported Memory: 3rd Gen AMD Ryzen Processors, 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/ 2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory, 3rd Gen AMD Ryzen with Radeon Graphics Processors, 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/ 4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/ 2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory, Maximum Memory: 128GB |
|
| Storage | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports, 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2, 1 x HDMI 2.1(4K@60HZ), Supports AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| LAN | Realtek RTL8111H, ASUS LANGuard |
|
| Internal I/O Ports | 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 header(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s connector(s), 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header |
|

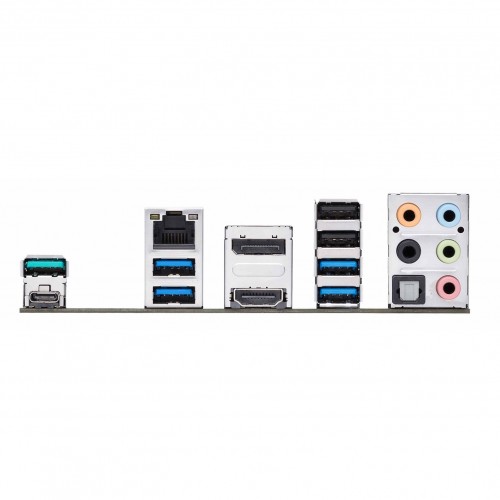

| USB Port | Rear USB Port ( Total 8 ), 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C), 4 x USB 3.2 Gen 1 port(s)(4 x Type-A), 2 x USB 2.0 port(s)(2 x Type-A), Front USB Port ( Total 6 ), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), 4 x USB 2.0 port(s)(4 x Type-A) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

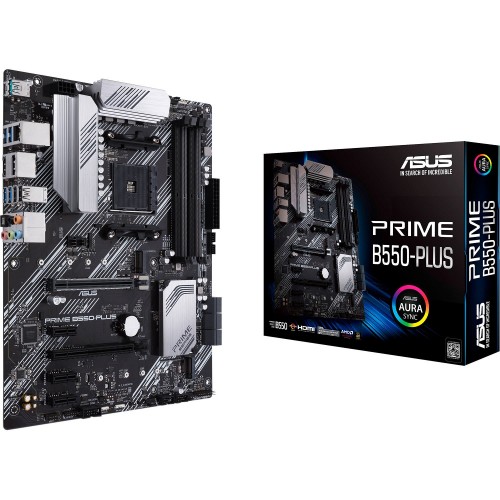

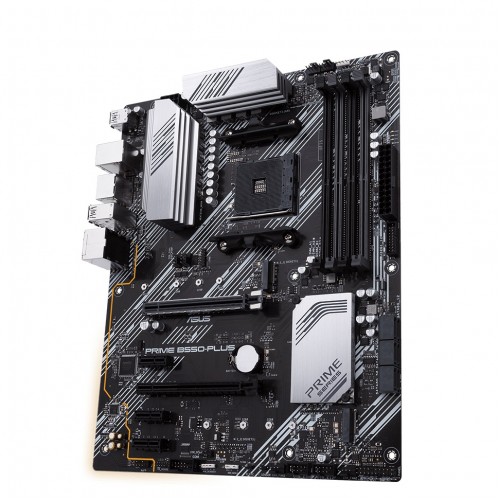

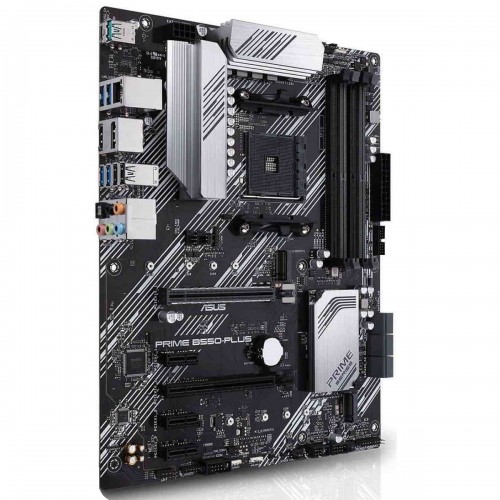

ASUS Prime series is expertly engineered to unleash the full potential of the 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. PCIe 4.0 M.2 Slot supports up to 22110 and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.
