| Basic Information | ||
| Chipset | Intel H610 | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) - Supports Surge Protection |
|
| BASIC INFORMATION | ||
| Supported CPU | - Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design |
|
| Memory | ||
| Slots | - 2 x DDR4 DIMM Slots - 1 x PCIe Gen4x16 Slot - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| Memory | 64GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
|
| Internal I/O Ports | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| Others | ||
| Special Features | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

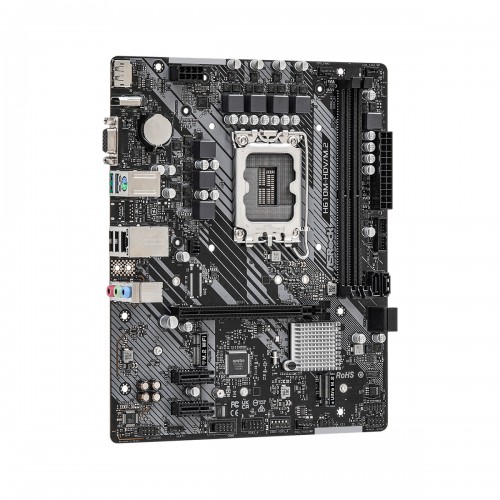

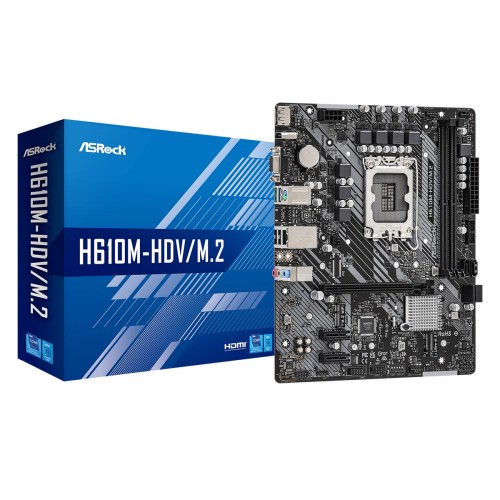

The ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard is a reliable and feature-packed motherboard designed for the latest 12th generation Intel Core processors. With its compact Micro ATX form factor measuring 9.6 inches by 7.9 inches (24.4 cm x 20.1 cm), it is suitable for space-constrained PC builds without compromising on performance.One of the notable features of this motherboard is its support for the Intel Xe Graphics Architecture (Gen 12), providing excellent graphics capabilities for multimedia and gaming applications. It offers three graphics output options: D-Sub, HDMI, and DisplayPort 1.4. You can enjoy high-resolution visuals with support for up to 4K x 2K resolution at 60Hz through HDMI 2.1 and up to 8K resolution at 60Hz or 5K resolution at 120Hz through DisplayPort 1.4 with DSC (compressed). Additionally, it supports HDCP 2.3, ensuring compatibility with protected content.In terms of audio, the motherboard features 7.1 channel HD audio powered by the Realtek ALC897/887 Audio Codec, delivering immersive sound quality. Surge protection is also included to safeguard against power fluctuations and ensure stable audio output.The ASRock H610M-HDV/M.2 motherboard offers multiple connectivity options. It includes four SATA3 6.0 Gb/s connectors for traditional storage devices and supports Ultra M.2 sockets for high-speed PCIe Gen3x4 and SATA3 M.2 SSDs, allowing for fast data transfer rates of up to 32 Gb/s. The motherboard is equipped with various internal I/O ports, including USB headers, COM port header, TPM header, fan connectors, and more, providing flexibility for connecting peripherals and expanding your system.With ASRock's Super Alloy components such as premium power chokes and a high-density glass fabric PCB, the motherboard ensures durability and stability for long-term use. It also features ASRock Full Spike Protection, which safeguards all USB, audio, and LAN ports against potential voltage spikes.To keep the system up to date, the ASRock H610M-HDV/M.2 motherboard supports ASRock Live Update & APP Shop, allowing users to easily update drivers, BIOS, and software with a few clicks.ASRock provides a 3-year warranty for the H610M-HDV/M.2 motherboard, ensuring peace of mind and customer support in case of any issues.
