| Basic Information | ||
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 Strong Performance IceStorm 3.0 Advanced Cooling Larger Vapor Chamber BladeLink Fans Reinforced Metal Mid-Frame FREEZE Fan Stop, Active Fan Control, Dual BIOS SPECTRA 2.0 RGB Lighting SPECTRA LINK Lighting Sync port Metal die-cast Backplate Bundled with GPU Support Bracket |
|
| Basic Information | ||
| Resolution | up to 15360×8460 @ 60Hz | |
| Video Memory Specifications | ||
| Core Clock | 2640 MHz | |
| BUS Type | 256-bit | |
| CUDA Cores (Nvidia) | 10752 | |
| Memory Clock | 30 Gbps | |
| Features | ||
| Dimension | 329.7mm x 137.8mm x 67.8mm / 13" x 5.4" x 2.7 | |
| Interface | ||
| Display Port | 3 x DisplayPort 2.1b with UHBR20 | |
| HDMI | 1 x HDMI | |
| HDCP | 2.3 | |
| Connectivity | ||
| Connectors | 1 x 12v-2x6 power input | |
| Power Specifications | ||
| Consumption | 360W *High power consumption, please carefully read your PSU manual before installation. | |
| Display Option | ||
| Multi Display | Quad Display | |
| General | ||
| Size | 16GB | |
| Type | GDDR7 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | Microsoft DirectX 12 Ultimate | |
| Physical Specification | ||
| Recommended PSU | 850W | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

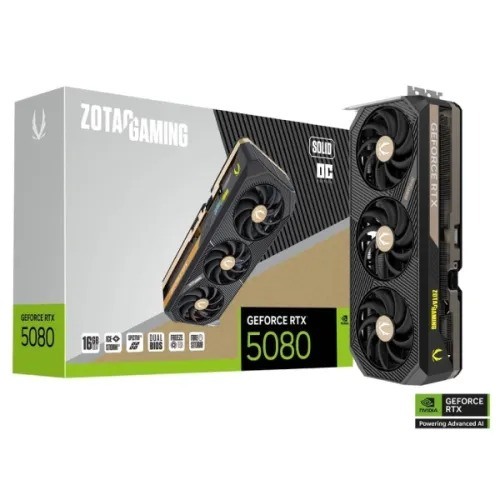

ZOTAC GAMING GeForce RTX 5080 SOLID OC 16GB GDDR7 Graphics Card
The ZOTAC GAMING GeForce RTX 5080 SOLID OC 16GB GDDR7 Graphics Card is an advanced GPU designed for high-performance gaming and professional applications. Building upon the specifications of the standard SOLID model, the OC (Overclocked) version offers enhanced performance.
Key Specifications:
CUDA Cores: 10,752
Core Clock Speed: 2640 MHz
Memory: 16GB GDDR7
Memory Bus: 256-bit
Memory Clock Speed: 30 Gbps
Power Consumption: 360W
Recommended Power Supply: 850W
Dimensions: 329.7mm (L) x 137.8mm (W) x 67.8mm (H)

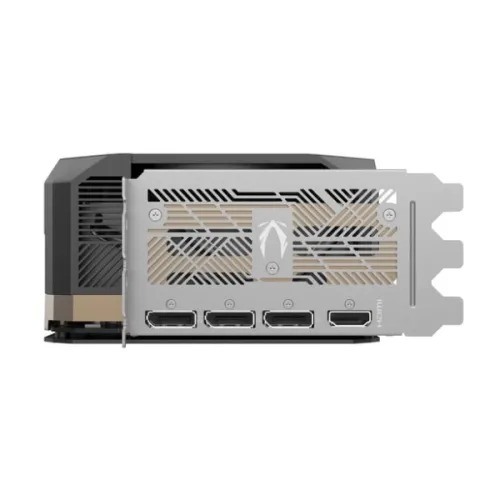

Display Outputs:
3 x DisplayPort 2.1a
1 x HDMI 2.1b
These outputs support up to 8K resolution at 60Hz and 4K at 120Hz HDR, providing flexibility for various display configurations.

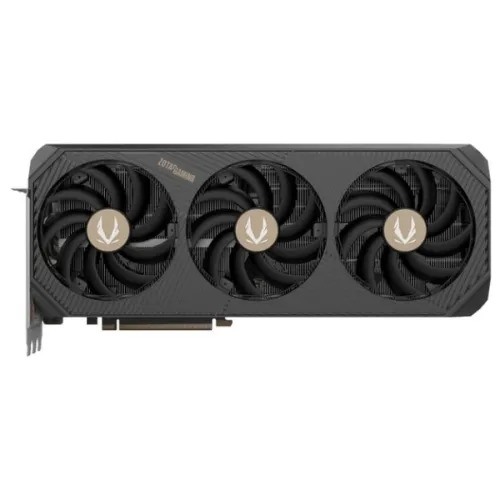

Cooling System:
The card utilizes ZOTAC's IceStorm 3.0 cooling technology, featuring a larger vapor chamber and BladeLink fans to maintain optimal temperatures during intensive tasks.
Additional Features:
Ray Tracing Cores: 84
Tensor Cores: 336
DirectX 12 Ultimate Support
OpenGL 4.6 Support
Quad Display Capability
