| Video Memory Specifications | ||
| Memory Size | 8GB | |
| Memory Type | GDDR6 |
|
| Resolution | HDMI: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz |
|
| Core Clock | Boost Clock: Up to 1925 MHz Game Clock: Up to 1815 MHz Base Clock: 1670 MHz |
|
| Memory Bus (Bit) | 256 bit |
|
| INTERFACE | PCI-Express 4.0 |
|
| Memory Clock | 14 Gbps Effective | |
| Stream Processors | 2560 |
|
| Interface | ||
| Display Port | 3x DisplayPort |
|
| HDMI | 1x HDMI |
|
| Power Specifications | ||
| Power Consumption | 241W | |
| Power Connector (Pin) | 1 x 8-pin Power Connector 1 x 6-pin Power Connector |
|
| Recommended Power Supply | Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply) |
|
| Display Option | ||
| Multi Display | Maximum 4 Displays |
|
| General | ||
| Graphics Chipset | PULSE RX 5700XT | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 | |
| Physical Specifications | ||
| Dimensions | 254 x 135 x 46.5 (mm) |
|
| Others | Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control IV Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon Software Radeon Boost Radeon Image Sharpening Radeon Anti-Lag AMD FidelityFx Async Compute Radeon Rays Audio + True Audio Next Radeon FreeSync 2 HDR Radeon VR Ready Premium |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 2 Years Warranty | |

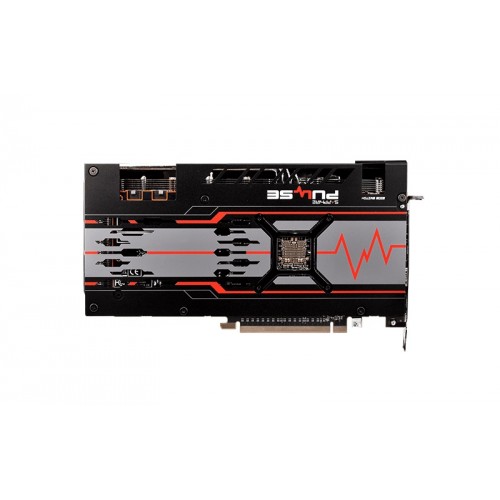

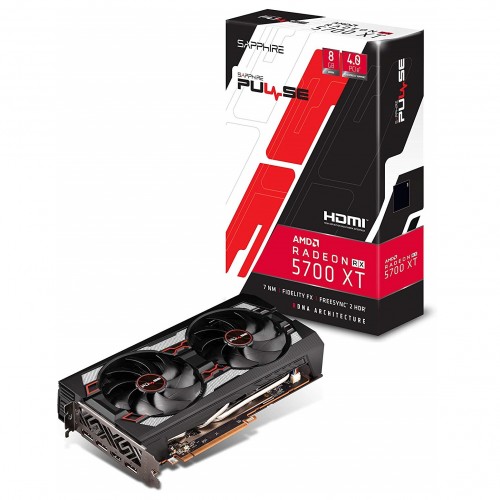

The SAPPHIRE PULSE RX 5700 XT offers great performance at the affordable price point that every gamer needs. With quality components and a robust digital power design, the PULSE RX 5700 XT delivers exceptional 1440p performance and high-fidelity gaming powered by AMD’s new extreme RDNA architecture. Its finely-tuned Dual-X Cooling Technology not only keeps the GPU, memory, and VRM components cool but also at a very low noise level. The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out, and it also helps cool your card by increasing heat dissipation. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support, and Power Fuse are all readily available to keep your GPU running smooth and silent. Get ready to experience next-level gaming performance and welcome the PULSE RX 5700 XT as the new integral heart of your PC! Explore all the incredible features that come with the SAPPHIRE PULSE RX 5700 XT Graphic Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you.
