| BASIC INFORMATION | ||
| Supported CPU | Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL Z790 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output 7.1-Channel High Definition Audio |
|
| Others | Type: DDR5 | |
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 3x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Memory | ||
| Slots | 4 | |
| Supported Memory | 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz |
|
| Connector & Ports | ||
| Display Port | 1x DisplayPort 1.4 | |
| LAN Port (s) | Realtek® RTL8125BG 2.5Gbps LAN | |
| Wireless | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports |
|

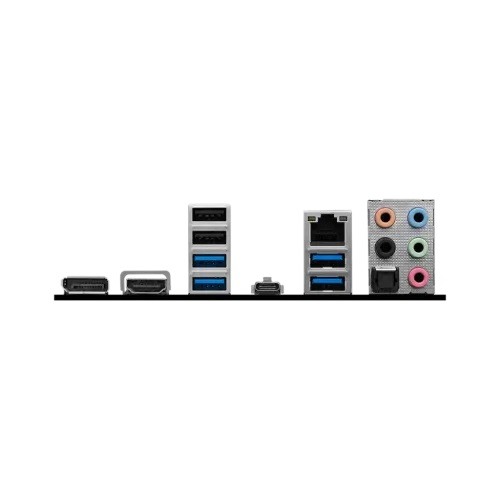

| USB Port | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

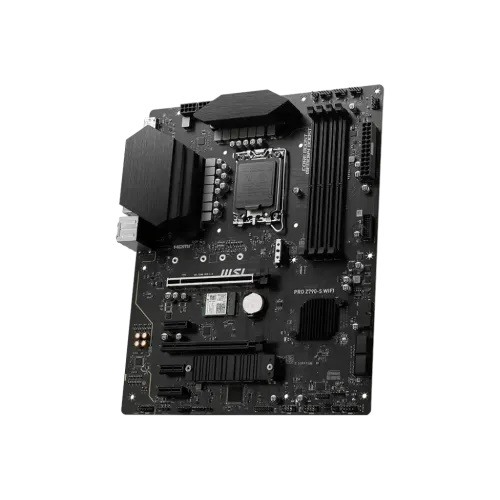

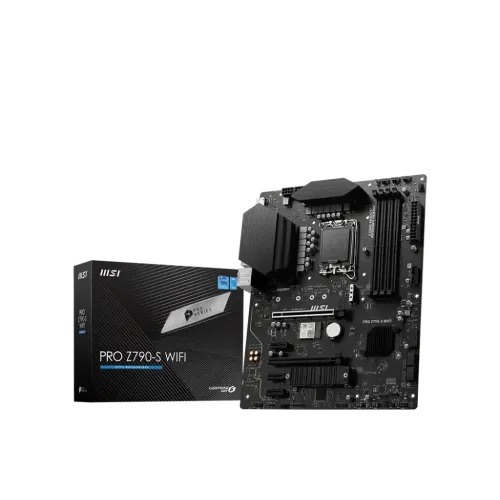

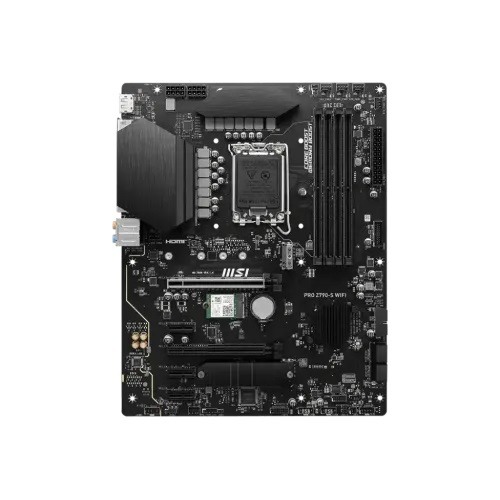

The MSI PRO Z790-S WiFi DDR5 ATX Motherboard is a powerful platform with cutting-edge technologies for high-performance computing. This motherboard, designed to handle 14th, 13th, and 12th Generation Intel Core, Pentium, and Celeron processors via the LGA 1700 socket, provides a strong foundation for a wide range of computer applications. The presence of four DDR5 RAM slots, each with a maximum capacity of 192GB and an overclocking potential of 6600+MHz (OC), provides not only abundant memory resources, but also the ability to improve performance and multitasking efficiency. The motherboard has 1x HDMI1.4 for graphics output, giving a dependable and diverse display solution with support for high-definition pictures. Dual 2.5Gbps LAN ensures lightning-fast and robust cable connections, and Wi-Fi 6E technology for high-speed wireless connectivity are among the sophisticated networking capabilities. Furthermore, the motherboard supports DisplayPort, which adds flexibility to the display arrangement and allows for high-resolution graphics for immersive computing experiences. Aside from its processor and memory capabilities, the MSI PRO Z790-S motherboard includes a number of features that improve overall system functioning. This motherboard delivers a feature-rich platform for demanding activities, whether for gaming aficionados, content makers, or professionals. The MSI PRO Z790-S WiFi DDR5 ATX Motherboard is a dependable and high-performance alternative for consumers looking for top-tier performance and adaptability in their computing systems, thanks to its powerful CPU compatibility, amazing RAM capacity and speed, and sophisticated networking and display capabilities.
