| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold And Celeron Processors Processor Socket LGA1700 |
|
| Basic Information | ||
| Chipset | Intel® Z690 Chipset | |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF Output |
|
| Memory | ||
| Memory | 4x DDR4 Memory Slots, Support Up To 128GB 1 Supports 2133/ 2666/ 3200 MHz (By JEDEC & POR) Max Overclocking Frequency: 1DPC 1R Max Speed Up To 5000+ MHz 1DPC 2R Max Speed Up To 4600+ MHz 2DPC 1R Max Speed Up To 4400+ MHz 2DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 1.4b With HDR Port, Supports A Maximum Resolution Of 4K 30Hz12 1x DisplayPort 1.4 Port, Supports A Maximum Resolution Of 4K 60Hz1 Available Only On Processors Featuring Integrated Graphics.Graphics Specifications May Vary Depending On The CPU Installed |
|
| Connector & Ports | ||
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN Controller | |
| Supported Storage | 4x SATA 6Gb/S Ports (From Z690 Chipset) 2x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports PCIe 4.0 X4 Supports 2242/ 2260/ 2280/ 22110 Storage Devices M2_2 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices Supports Intel Optane Memory Supports RAID 0, RAID 1, RAID 5 And RAID 10 For SATA Storage Devices Supports RAID 0 And RAID 1 For M.2 NVMe Storage Devices |
|
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 1x 8-Pin ATX 12V Power Connector 1x 4-Pin ATX 12V Power Connector 4x SATA 6Gb/S Connectors 2x M.2 Slots (M-Key) 2x USB 3.2 Gen 1 5Gbps Connectors (Supports Additional 4 USB 3.2 Gen 1 5Gbps Ports) 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Fan Connector 4x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1x TPM Module Connector 1x Clear CMOS Jumper 1x TBT Connector (Supports RTD3) |
|

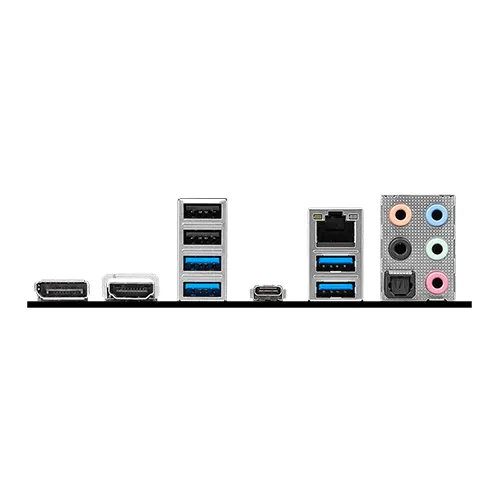

| USB Port | Intel® Z690 Chipset 8x USB 3.2 Gen 1 5Gbps Ports (4 Type-A Port On The Back Panel And 4 Ports Available Through The Internal USB Connectors) 6x USB 2.0 Ports (2 Type-A Port On The Back Panel And 4 Ports Available Through The Internal USB Connectors) 1x USB 3.2 Gen 2x2 20Gbps Type-C Port On The Back Panel |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

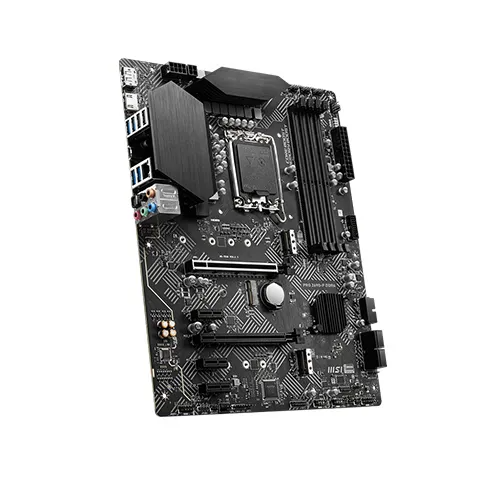

PRO Series Helps Users Work Smarter By Delivering An Efficient And Productive Experience. Featuring Stable Functionality And High-Quality Assembly, PRO Series Motherboards Provide Not Only Optimized Professional Workflows But Also Less Troubleshooting And Longevity.
With More Cores’ Processors, Thermal And Power Design Is More Important To Make Sure The Temperature Keeps Lower. MSI Extended PWM Heatsink With 7W/MK Thermal Pad Ensures Even High-End Processors To Run In Full Speed With MSI Motherboard
The Most Important Thing Of DIY Is Expandability. MSI PRO Series Motherboards Feature Plenty Possibility For Prosumers' Need. Stable LAN, Faster Storage And USB Transfer Speed And Other Expandable Connectors Are Ready To Enlarge Your Flexibility.
2.5Gbps LAN Provides Incredible Data Transfer Speed Faster Than General Gigabit LAN. This Is A Premium Solution For Demanding Users.
MSI PRO Series Motherboards Are Designed To Satisfy Any Professional Workflow. Elevate Your Listening Pleasure And Enjoy Extreme Sound Quality. Moreover, With Years Of Experience In Creating Performance Enhancing Tools That Are Easy To Use, Only The Highest Quality Applications Are At Your Disposal. The Extensive Features Let You Fine-Tune Your System To Deliver Reliable Maximum Performance.
MSI OC LAB Does Not Merely Work Hard On Extreme Overclocking. The XMP Memory Profile Has Great Improvement On Performance And Efficiency For Z690 . Easy To Enable XMP Profile With Auto Power Settings To Get The Best Memory Speed And Stability.

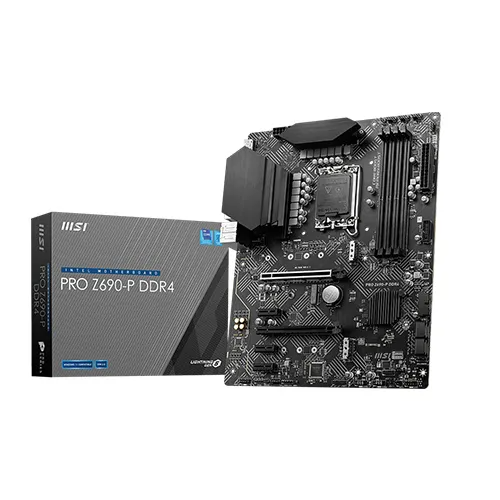

Supports 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors For LGA 1700 Socket, Supports DDR4 Memory, Up To 5000+(OC) MHz, Core Boost : With Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance. Memory Boost: Advanced Technology To Deliver Pure Data Signals For The Best Performance, Stability And Compatibility. Lightning Fast Experience: PCIe 5.0 Slots, Lightning Gen4 X4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design And MOSFET Thermal Pads Rated For 7W/Mk Are Built For High Performance System And Non-Stop Works 2.5G LAN: Upgraded Network Solution For Professional And Multimedia Use. Delivers A Secure, Stable And Fast Network Connection Audio Boost: Reward Your Ears With Studio Grade Sound Quality High Quality PCB: 6-Layer PCB And Server Grade Level Material Multi-GPU: With Steel Armor PCI-E Slots. Supports AMD Crossfire™
