| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700 |
|
| Chipset | Intel Z690 Chipset |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 192GB |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Intel 2.5Gbps LAN | |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| Display Port (s) | 1x DisplayPort 1.4 | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
|
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Warranty | 3 years |
|

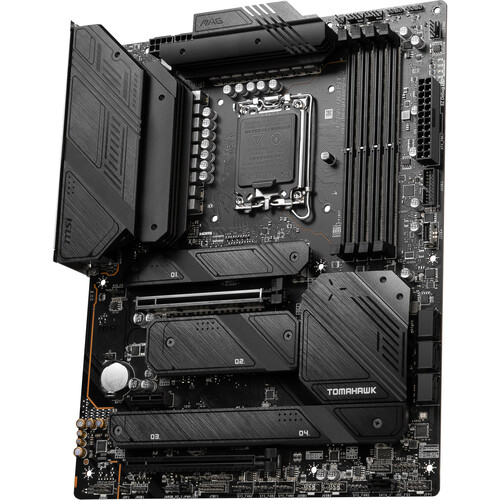

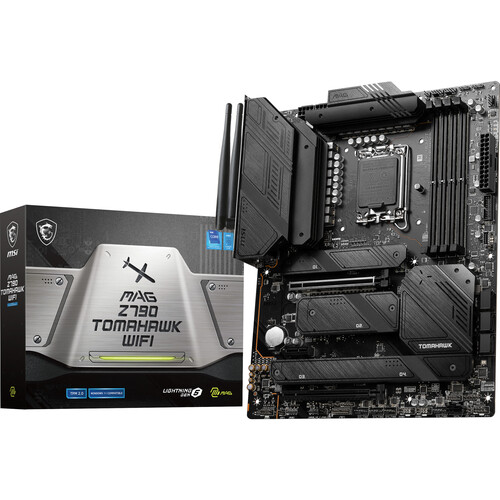

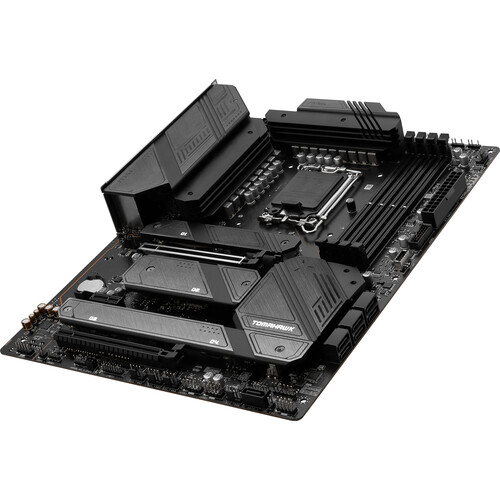

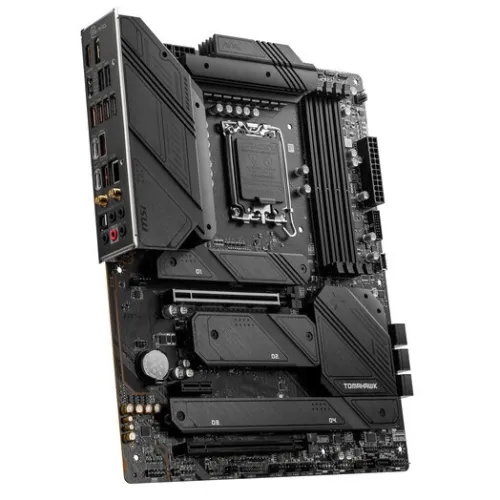

The MSI MAG Z790 TOMAHAWK WIFI DDR4 is a high-performance ATX motherboard designed to support 12th and 13th Gen Intel Core processors, Pentium Gold, and Celeron processors. It comes with a wide range of features and advanced technologies, making it a reliable and powerful option for gamers, content creators, and PC enthusiasts alike.At the heart of the motherboard lies the Intel Z690 chipset, which ensures optimal performance and stability for your system. The motherboard supports up to 128GB of DDR4 memory across four DIMM slots, allowing for smooth multitasking and efficient data handling. It also supports Intel® Extreme Memory Profile, which enables automatic overclocking to maximize memory performance.In terms of graphics and display options, the motherboard features an HDMI 2.1 port and a DisplayPort 1.4, capable of delivering stunning visuals at resolutions of up to 4K at 60Hz and 8K at 60Hz, respectively. This is perfect for gamers and content creators who require high-quality graphics performance for their work or entertainment.For storage options, the motherboard offers four M.2 slots and seven SATA 6G ports. The M.2 slots support PCIe 4.0 x4 and SATA devices, allowing for super-fast data transfer speeds and supporting various storage configurations. This enables you to build a system with ample storage space for your games, applications, and multimedia files.

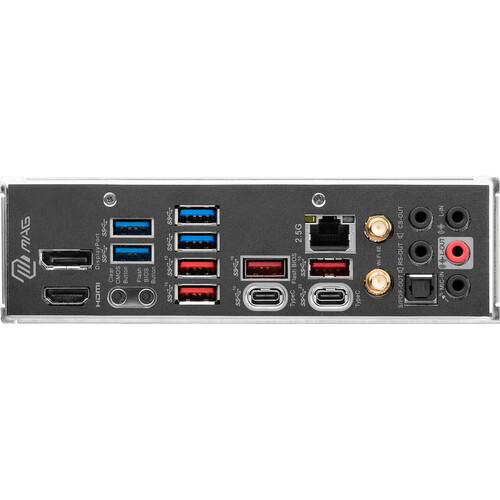

MSI MAG Z790 TOMAHAWK WIFI DDR4 LGA 1700 ATX Motherboard provides seamless connectivity to your system. This ATX motherboard, which uses the Intel Z790 chipset and LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 5333 MHz when overclocked. Storage is abundant with seven SATA III and four M.2 connections that enable RAID 0, 1, 5, and 10. GPUs and other adaptor cards can be installed using PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots. Benefit from quick networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; easily connect to wireless peripherals with Bluetooth 5.2. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals to four USB 3.2 Gen 1 and four USB 3.2 Gen 2 Type-A ports, or to two USB 3.2 Gen 2 and two Type-C ports. DisplayPort and HDMI are used to output video. There are also Clear CMOS and Flash BIOS buttons on the back I/O panel. Front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features are supported through internal headers.
