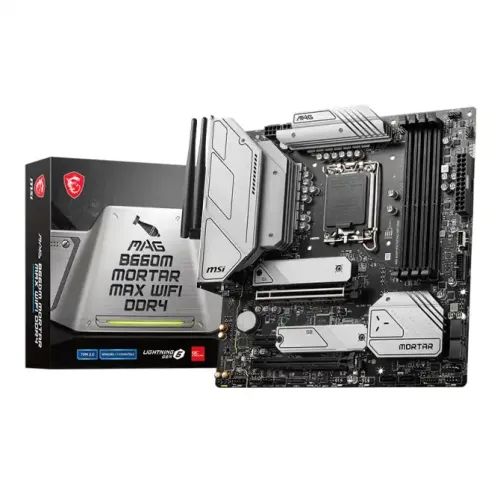

/MAG B660M MORTAR MAX WIFI DDR4/mag-b660m-mortar-max-wifi-ddr4-01-500x500.png "MSI MAG B660M MORTAR MAX WIFI DDR4 12th Gen Micro-ATX Motherboard")

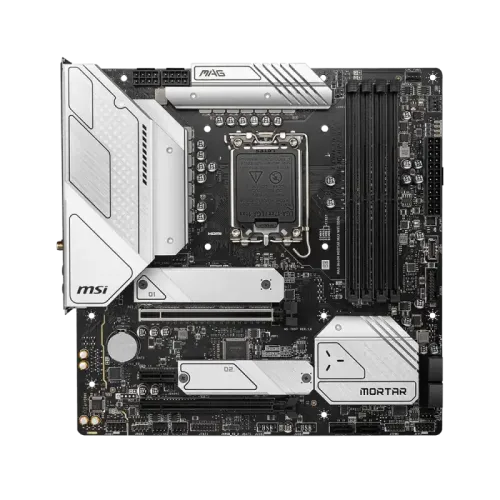

/MAG B660M MORTAR MAX WIFI DDR4/mag-b660m-mortar-max-wifi-ddr4-02--500x500.png "MSI MAG B660M MORTAR MAX WIFI DDR4 12th Gen Micro-ATX Motherboard")

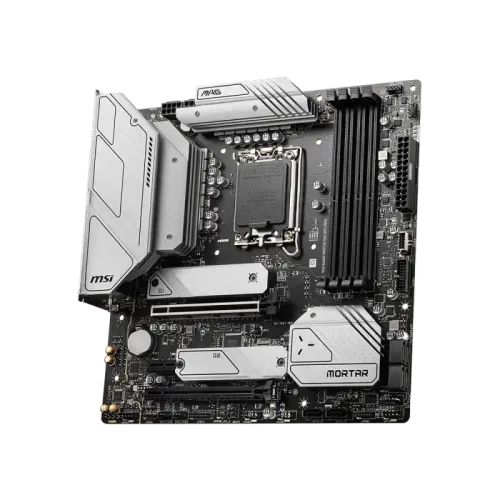

/MAG B660M MORTAR MAX WIFI DDR4/mag-b660m-mortar-max-wifi-ddr4-03--500x500.png "MSI MAG B660M MORTAR MAX WIFI DDR4 12th Gen Micro-ATX Motherboard")

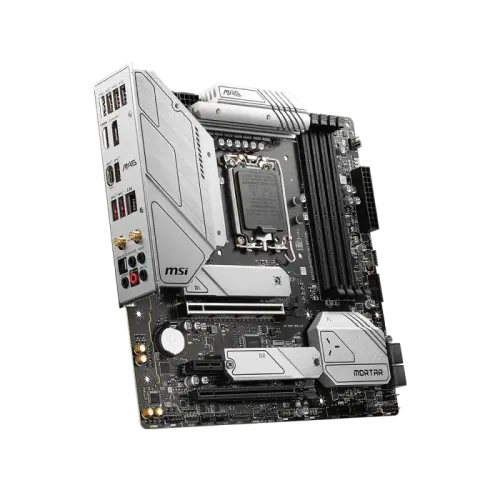

/MAG B660M MORTAR MAX WIFI DDR4/mag-b660m-mortar-max-wifi-ddr4-04--500x500.png "MSI MAG B660M MORTAR MAX WIFI DDR4 12th Gen Micro-ATX Motherboard")
/MAG B660M MORTAR MAX WIFI DDR4/mag-b660m-mortar-max-wifi-ddr4-05-500x500.png "MSI MAG B660M MORTAR MAX WIFI DDR4 12th Gen Micro-ATX Motherboard")
| BASIC INFORMATION | ||
| Supported CPU | Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700 |
|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 4 | |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Up to 128GB | |
| Graphics | ||
| Graphics | Supports AMD CrossFire Technology 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|

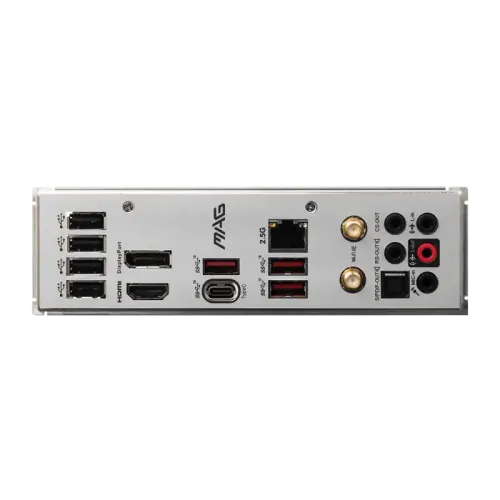

| USB (s) | Intel B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
|
| LAN | 1x Realtek 8125BG 2.5Gbps LAN controller | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |
The MSI MAG B660M MORTAR MAX WIFI DDR4 12th Gen Micro-ATX Motherboard is a high-performance motherboard designed for gamers and PC enthusiasts. Featuring an Intel B660 chipset and support for 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, this motherboard offers exceptional performance and versatility.With its Micro-ATX form factor, the MSI MAG B660M MORTAR MAX WIFI motherboard strikes a balance between compactness and functionality. It measures 9.6 inches by 9.6 inches (24.4 cm by 24.4 cm), making it suitable for smaller PC cases without sacrificing essential features.One of the notable features of this motherboard is its audio capabilities. It incorporates the Realtek ALC897 Codec, providing 7.1-channel high-definition audio for an immersive gaming and multimedia experience. It also supports S/PDIF output for high-quality digital audio connectivity.When it comes to graphics, the motherboard offers extensive support. It features an HDMI 2.1 port and a DisplayPort 1.4 port, both capable of supporting a maximum resolution of 4K at 60Hz. It also supports AMD CrossFire Technology, allowing for multiple graphics card configurations and enhanced gaming performance.
The MSI MAG B660M MORTAR MAX WIFI motherboard boasts a range of internal I/O ports to connect various components. It includes multiple power connectors, SATA 6Gb/s connectors for storage devices, M.2 slots for high-speed SSDs, USB connectors, fan connectors, and more. These ports and connectors provide ample connectivity options for your PC build.With its support for up to 128GB of DDR4 memory across four slots, this motherboard ensures smooth multitasking and efficient memory performance. It supports a wide range of memory frequencies, including overclocking options, and features Intel Extreme Memory Profile (XMP) support for easy memory configuration.
The MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard impresses with its performance, efficiency, and value, making it an excellent choice for users looking to build a powerful and compact system. Equipped with the Intel B660 chipset and supporting 12th Gen Intel Core, Pentium Gold, and Celeron processors, this motherboard offers exceptional processing capabilities.When it comes to memory, the MSI MAG B660M MORTAR MAX WIFI supports up to 128GB of DDR4 memory, allowing for smooth multitasking and efficient data processing. With support for various memory speeds and Intel Extreme Memory Profile (XMP), users can easily optimize their system for maximum performance.In terms of connectivity, this motherboard goes above and beyond. It features Intel Wi-Fi 6, offering high-speed wireless connectivity with MU-MIMO support and compatibility with multiple Wi-Fi standards. The pre-installed wireless module ensures a hassle-free setup. Additionally, the inclusion of a 2.5G LAN port ensures fast and reliable wired networking.The MSI MAG B660M MORTAR MAX WIFI provides an array of connectors, including USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-A, USB 3.2 Gen1, and USB 2.0 ports, enabling seamless connectivity for various devices. The HDMI 2.1 and DisplayPort 1.4 ports allow for high-quality video output, meeting the demands of modern display technologies.The motherboard also offers a range of internal connectors, including M.2 slots for high-speed storage options, SATA connectors for traditional drives, and fan connectors for efficient cooling. These features contribute to the overall performance and flexibility of the system.In terms of value, the MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard shines with its feature-packed design at an affordable price point. The three-year warranty adds peace of mind, ensuring long-term reliability and support.
