| BASIC INFORMATION | ||
| Form Factor | Micro-ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF Output | |
| CPU | Supports 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors Processor Socket LGA1700 | |
| Memory | ||
| Slots | 2x PCIe X16 Slots PCI_E1 Slot (From CPU) Supports PCIe 4.0 X16 PCI_E3 Slot (From B660 Chipset) Supports PCIe 3.0 X4 1x PCIe 3.0 X1 Slot | |
| Memory | 4x DDR5 Memory Slots, Support Up To 128GB1 Supports 1R 4800 MHz (By JEDEC & POR) Max Overclocking Frequency: 1DPC 1R Max Speed Up To 6200+ MHz 1DPC 2R Max Speed Up To 5200+ MHz 2DPC 1R Max Speed Up To 4000+ MHz 2DPC 2R Max Speed Up To 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz 1x DisplayPort 1.4 Port With HBR3, Supports A Maximum Resolution Of 4K 60Hz | |
| Connector & Ports | ||
| LAN | 1X Realtek 8125BG 2.5G LAN Port | |
| Supported Storage | 4x SATA 6Gb/S Ports (SATA5~8, From B660 Chipset)1 2x SATA 6Gb/S Ports (SATA_A & SATA_B, From ASMedia ASM1061) 2x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports PCIe 4.0 X4 Supports 2242/ 2260/ 2280 Storage Devices M2_2 Slot (From B660 Chipset)1 Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices Supports Intel® Optane™ Memory | |
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 2x 8-Pin ATX 12V Power Connectors 6x SATA 6Gb/S Connectors 2x M.2 Slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C Connector 1x USB 3.2 Gen 1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports) 2x USB 2.0 Type-A Connectors (Supports Additional 4 USB 2.0 Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Fan Connector 2x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1x Clear CMOS Jumper 1x TPM Module Connector 1x TBT Connector (Supports RTD3) 1x Tuning Controller Connector | |
| USB Port | Intel® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C Port On The Back Panel 1x USB 3.2 Gen 2 10Gbps Type-C Port Available Through The Internal Connector 2x USB 3.2 Gen 1 5Gbps Ports Available Through The Internal Connector 4x USB 2.0 Ports On The Back Panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A Ports On The Back Panel USB Hub-GL850G 4x USB 2.0 Ports Available Through Internal Connectors | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

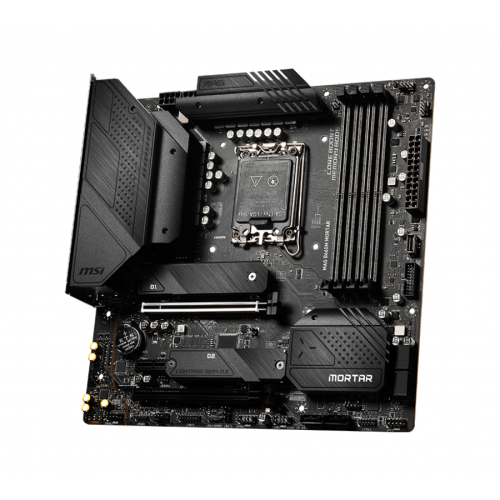

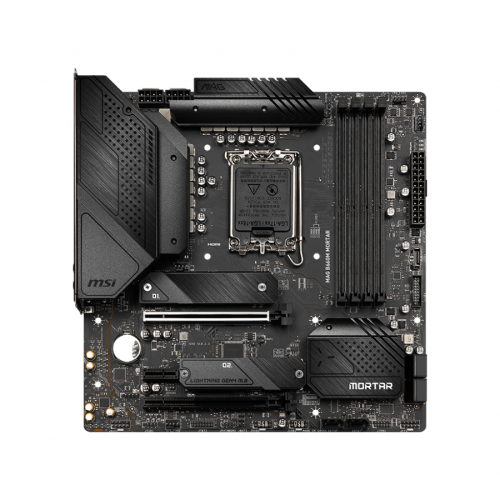

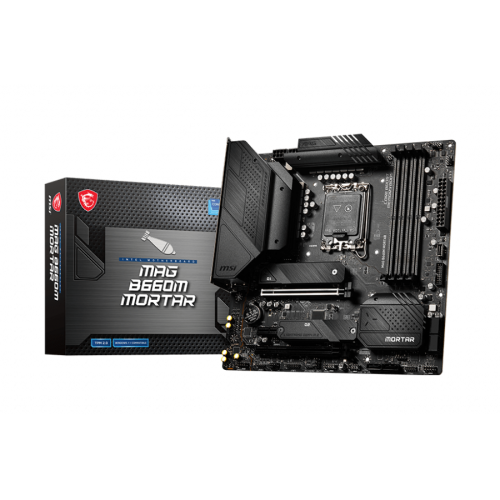

MSI MAG B660M Mortar DDR4 Motherboard supports 12th Generation Intel Core, Pentium Gold, and Celeron CPUs for the LGA 1700 socket,DDR4 Memory up to 4800+(OC) rate. This motherboard has Premium Thermal resolution,which includes Extended Heatsink style and M.2 protect Frozr forhigh-performance systems and non-stop operation, in addition as two.5G LAN forupgraded network solutions for skilled and transmission applications.Provides a network association that's safe, dependable, and speedy. The MSI B660 motherboards provide the latest Lightning info four M.2, the quickest aboardstorage possibility on the market with up to sixty four Gb/s transfer speed, and square measure hopped-upby twelfth info Intel processors. This motherboard options Lightning M.2, whichhelps to maximise performance for NVMe-based SSDs once running at PCIe info four.It additionally options a inbuilt USB three.2 info twox2 port with a transmission speed of20Gbps, that is 4X quicker than USB three.2 info one and Steel armor PCIe slots. AMDCrossfire is supported. The MSI MAG B660M Mortar DDR4 Motherboard is roofed bya three-year guaranty.
PREMIUM HARDWARE DESIGN With Years Of Experience, MSI Is No Stranger To Building High-Performance Motherboards. Our R&D And Engineering Teams Have Reviewed Countless Designs Evaluated A Wide Selection Of High-Quality Components And Developed Products For Reliability Even Under Extreme Conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE With More Cores’ Processors, Thermal And Power Design Is More Important To Make Sure The Temperature Keeps Lower. MSI Extended PWM Heatsink And Enhanced Circuit Design Ensure Even High-End Intel CPU To Run In Full Speed With MSI Motherboards.
MSI Motherboards Are Built With A Variety Of Connectors To Satisfy Gamers. Enhanced Audio, Advanced LAN Networking Capabilities, USB, And Mystic Light Turn Any Gaming Experience Into An Immerse One.
MSI LAN Manager Automatically Classifies And Prioritizes The Latency-Sensitive Applications For Online Games, Giving You The Best Online Gaming Experience With Low Latency.
