| BASIC INFORMATION | ||
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
|
| Form Factor | mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) |
|
| Basic Information | ||
| Chipset | Intel B560 chipset | |
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio |
|
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 2x DDR4 memory slots Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: Up to 64GB |
|
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Realtek 8125B 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)1 Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector |
|

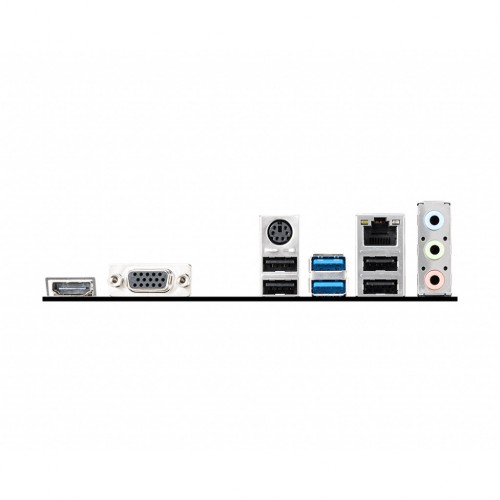

| USB Port | 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

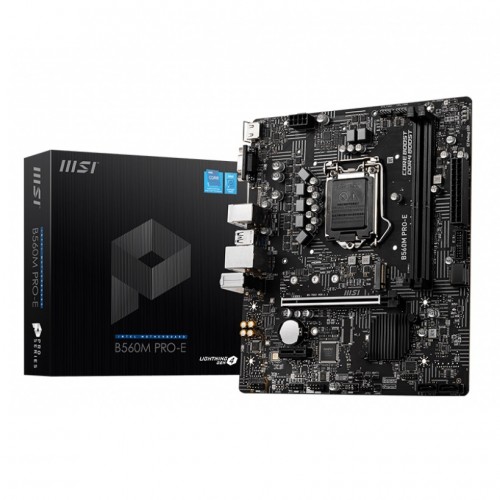

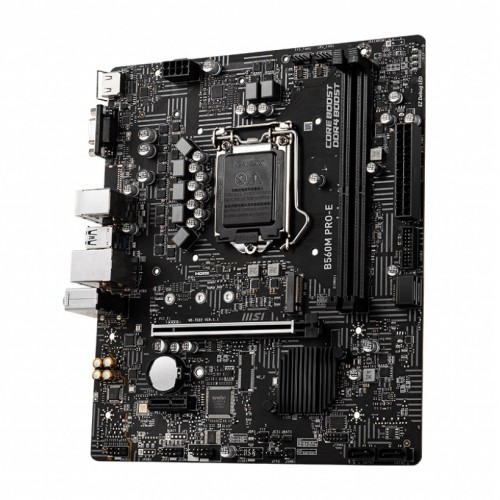

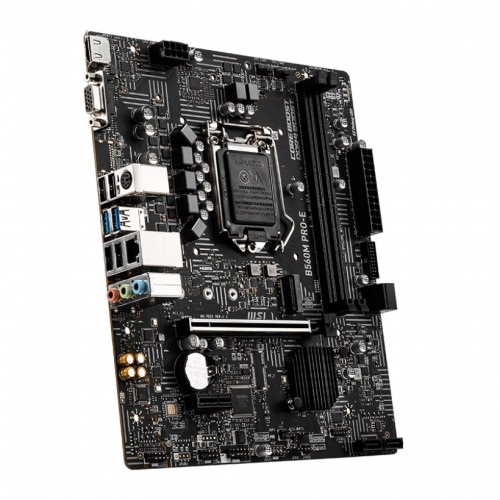

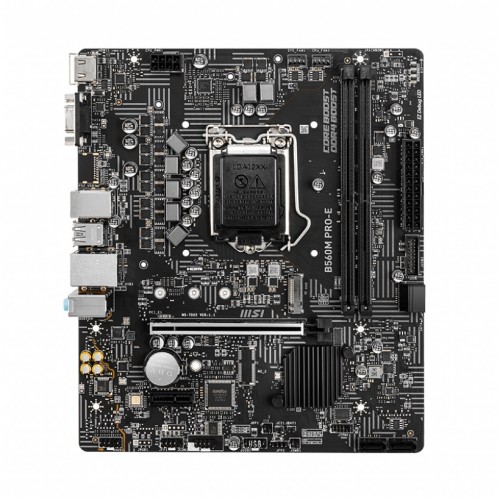

The MSI B560M PRO-E is a high-quality micro ATX motherboard designed to support both 10th and 11th generation Intel Core processors, as well as Pentium Gold and Celeron processors. It features an Intel B560 chipset and supports a range of powerful components and technologies for a smooth computing experience.One of the notable features of this motherboard is its audio capabilities. It is equipped with a Realtek AL897 Codec, providing 7.1-channel high-definition audio. This ensures immersive sound quality for gaming, movies, and music.The motherboard comes with a UEFI AMI BIOS with a 256 Mb flash memory, supporting ACPI 6.2 and SMBIOS 3.0. The BIOS is user-friendly and supports multi-language options, making it convenient for a diverse range of users.In terms of connectivity, the MSI B560M PRO-E offers various options.
The MSI B560M PRO-E is a versatile and reliable Micro ATX motherboard designed to support 10th and 11th Gen Intel Core processors, as well as Pentium Gold and Celeron processors. It is built with the Intel B560 chipset, offering excellent performance and a wide range of features suitable for various computing needs.With its Micro ATX form factor measuring 9.3 inches x 8.0 inches (23.6 cm x 20.2 cm), this motherboard is compact, making it a great choice for small form factor builds without sacrificing functionality.The motherboard's memory support is robust, with two DDR4 memory slots capable of accommodating up to 64GB of RAM. It supports memory speeds of 2133, 2666, 2933 MHz for 10th Gen Intel CPUs and 2133, 2666, 2933, 3200 MHz for 11th Gen Intel CPUs, allowing users to take advantage of high-performance memory modules.For graphics capabilities, the MSI B560M PRO-E provides multiple display options, including a VGA port supporting resolutions of up to 2048x1536 at 50Hz, a DisplayPort 1.4 port supporting a maximum resolution of 4K at 60Hz, and an HDMI 2.0b port with HDR support, also capable of handling 4K at 60Hz. These options make it suitable for both work and multimedia-related tasks.In terms of storage, the motherboard offers six SATA 6Gb/s ports from the B560 chipset, providing plenty of connections for traditional hard drives and SSDs. Additionally, it has an M.2 slot (Key M) that supports PCIe 4.0 x4 for 11th Gen Intel CPUs and PCIe 3.0 x4 and SATA 6Gb/s for 10th Gen Intel CPUs. This M.2 slot allows for high-speed NVMe SSDs, enhancing overall system responsiveness. The board also supports Intel Smart Response Technology, which allows for intelligent caching of frequently used data for faster access.
MSI B560M PRO-E Motherboard Provides Many Thermal Solutions! Frozr AI Cooling Detects CPU & GPU Temperatures And Automatically Adjusts System Fans To Make Sure Your System Is Kept Cool. Choose Between Performance Mode, Silent Mode, And Manual Mode!
MSI B560M PRO-E Motherboards Features Many Options For Your Needs. Stable LAN, Faster Storage And USB Transfer Speeds, And Other Connectors Are Ready For You To Enlarge Your Flexibility. Stay Connected With Intel LAN, Optimized For Stable Internet Throughput Ideal For Championship Level Online Plays.
MSI B560M PRO-E Motherboard Designed To Satisfy Any Professional Workflow, MSI Motherboards Allow You To Enjoy Enhancing Tools That Are Easy To Use. MSI Lightning Gen 4 PCI-E Is That The Latest And Therefore The Fastest PCI-E Data Transfer Solution With 64GB/S Of Transfer Bandwidth That Has Doubled Compared To Its Previous Generation. MSI B560M PRO E Motherboard DDR4 Boost Provides Extreme Stability And Compatibility, While Core Boost Combines MSI's Premium Layout And Optimized Power Design Which Allows For Faster And Undistorted Current Delivery To The CPU At Pin-Point Precision.
