| Basic Information | ||
| Type | Dual-Channel Architecture | |
| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors |
|
| Chipset | AMD B550 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
|
| M.2 Socket | 1 x M.2 | |
| Memory | ||
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules |
|
| Maximum Memory | support up to 128GB | |
| Graphics | ||
| Graphics | Integrated in the AMD Ryzen 5000 G-Series/4000 G-Series Processors: | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| USB (s) | 4 x USB 3.2 Gen 1 ports on the back panel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Bundled Software | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Special Features | Support for APP Center |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |

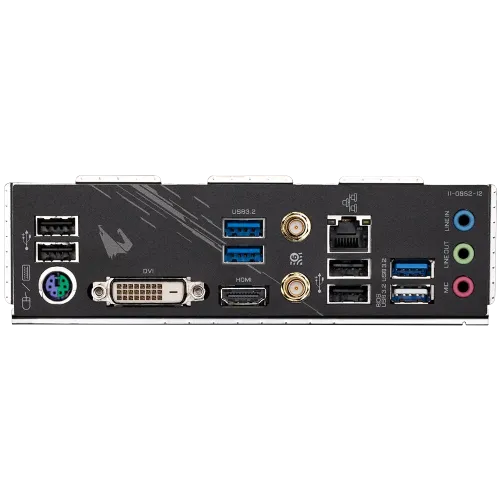

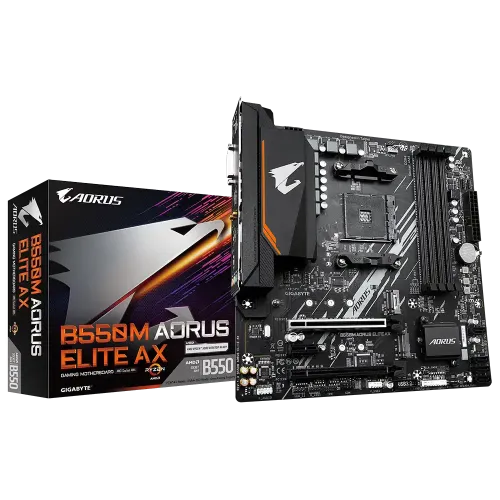

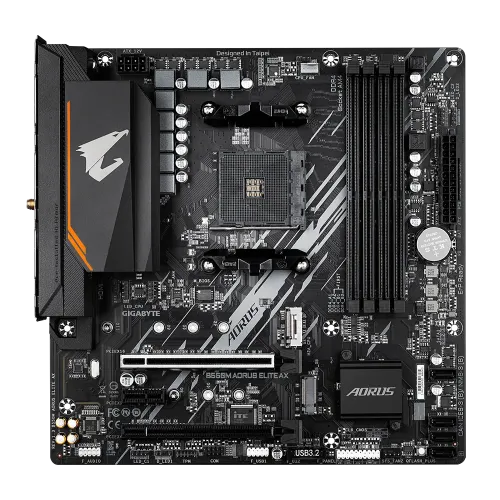

The GIGABYTE B550M AORUS ELITE AX is a versatile micro ATX AMD motherboard designed to support an array of AMD processors, including Ryzen 3000, 4000 G-Series, 5000, and 5000 G-Series, making it adaptable to various system requirements. It boasts four Dual Channel ECC/Non-ECC Unbuffered DDR4 DIMM slots for optimized memory configurations. With its 5+3 Phases Pure Digital VRM Solution featuring Low RDS(on) MOSFETs, the Motherboard ensures reliable power delivery, particularly during overclocking sessions. The inclusion of an Ultra Durable PCIe 4.0 Ready x16 Slot allows users to harness the full potential of the latest graphics cards and storage devices. Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 connectors offer high-speed storage options. On the connectivity front, this motherboard excels with onboard Wi-Fi 6E (802.11ax) and Bluetooth 5.3. Moreover, it provides a top-notch audio experience thanks to high-quality audio capacitors and Audio Noise Guard technology. Realtek GbE LAN with bandwidth management ensures a stable network connection, essential for online gaming and content streaming. Video output options are flexible, with both HDMI and DVI support on the rear I/O panel. For those looking to add a touch of personalization to their system, RGB FUSION 2.0 supports addressable LED and RGB LED strips. Smart Fan 5 takes care of system cooling with multiple temperature sensors and hybrid fan headers featuring a fan stop function. In addition, the motherboard simplifies the BIOS update process through Q-Flash Plus, which allows updating without installing the CPU, memory, or graphics card. The inclusion of an Anti-Sulfur resistor design enhances component longevity and system reliability, ensuring your PC remains stable over time. The GIGABYTE B550M AORUS ELITE AX is a highly adaptable and feature-rich motherboard suitable for gamers, content creators, and PC enthusiasts, offering excellent performance, connectivity options, and customization features.
