| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
|
| Chipset | A520 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM |
|
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|

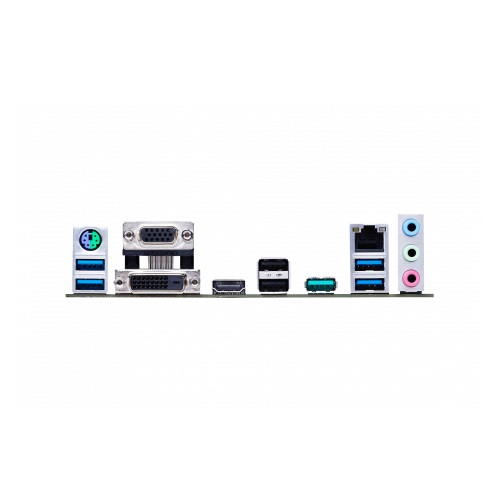

| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Audio | 3 x Audio jacks |
|
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Display Port (s) | 1 x DisplayPort | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Warranty | 3 Years | |

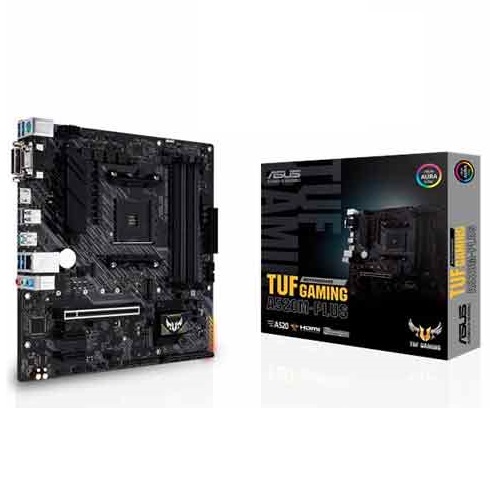

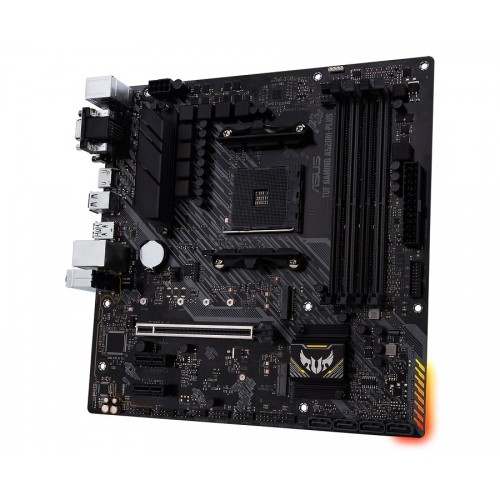

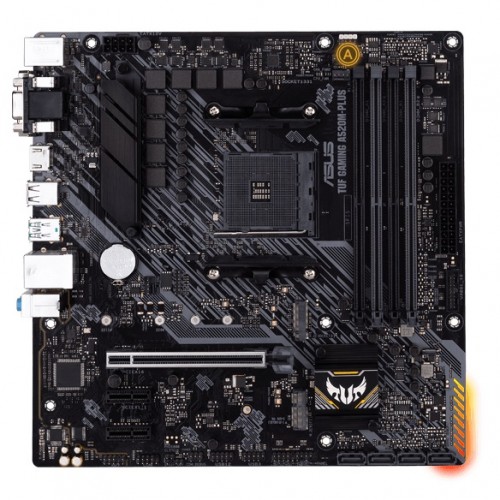

Asus TUF Gaming A520M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus is the perfect foundation for your next high-core-count battle rig. Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and a 5X-longer lifespan. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Get specific details about this product from customers who own it.
