| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX: 30.5cm x 24.4cm | |
| Basic Information | ||
| Chipset | B550 | |
| Audio | - Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), - Supports up to 32-Bit/192 kHz playback, Audio Features: - Power pre-regulator reduces power input noise to ensure consistent performance, - Rear optical S/PDIF out port, - Premium Japanese audio capacitors, - Dedicated audio PCB layers, - Audio cover, - Unique de-pop circuit |
|
| CPU | AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Memory | ||
| Memory | Type: DDR4, Slots: 4 x DIMM, Supported Memory: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors, 4866(O.C)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory, AMD Ryzen 4000 G-Series Processors, 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory. OptiMem II Dual Channel Memory Architecture. ECC Memory (ECC mode) support varies by CPU. Maximum Memory: 128GB |
|
| Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes), AMD Ryzen 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes), AMD B550 Chipset, M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, Supports RAID 0, 1, 10 |
|
| Graphics | ||
| Graphics | 1 x HDMI 2.1 (4K@60Hz), 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI™ 2.1 (4K@60Hz) | |
| LAN | 2 x Intel I225-V 2.5Gb Ethernet ports | |
| Internal I/O Ports | 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support, Fan and Cooling related, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 4 x 4-pin Chassis Fan header(s), Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Miscellaneous: 2 x AURA Addressable Gen 2 header(s), 2 x AURA RGB header(s), 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x Speaker header, 1 x 20-5 pin System Panel header, 1 x Thermal Sensor header |
|
| USB Port | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs, 4 x USB 3.2 Gen 2 port(s) (4 x Type-A), 2 x USB 2.0 port(s) (2 x Type-A) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

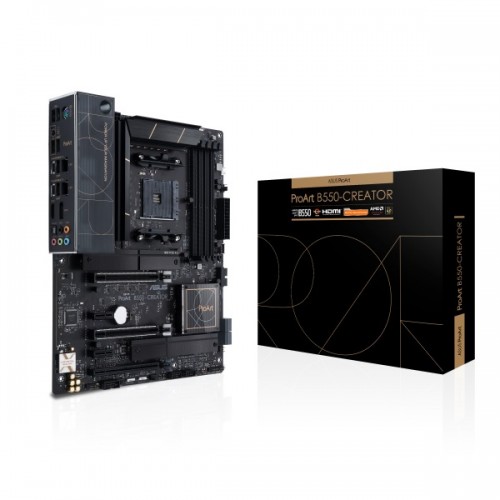

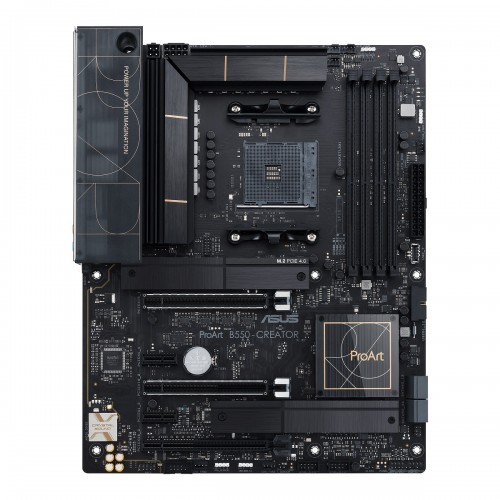

ASUS ProArt B550-Creator Motherboard Featuring robust power delivery and PCI 4.0 support, ProArt B550-Creator maximizes the computing power of the newest AMD Ryzen processors to hurry up tasks like 3D rendering and video post-production also as working with and sharing large files. the huge performance demands of those next-generation processors are balanced with a comprehensive and efficient thermal solution, leading to the rock-solid system stability and reliability ASUS ProArt B550-Creator Motherboards are known for and professional content creators demand.
Lightning-speed connectivity

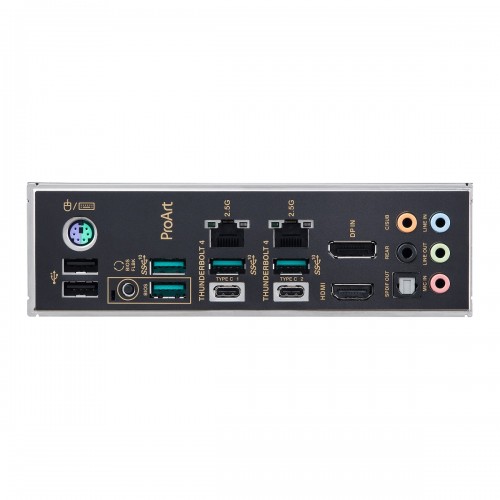

The ProArt B550-Creator motherboard comes with a comprehensive array of powerful I/O ports — including two Thunderbolt 4 ports, two Intel 2.5G Ethernet, and 4 USB 3.2 Gen 2 ports — enabling quick data transfers and extensive storage options with flexible, hassle-free connectivity. ASUS ProArt B550-Creator Motherboard Each Thunderbolt 4 port delivers up to 40 Gbps of bidirectional bandwidth for the newest high-speed devices and drives. Thunderbolt 4 also supports up to 2 external 4K UHD displays or one 8K display.
The two Intel 2.5G Ethernet (I225-V) ports enable faster transfers of huge files across local networks — ideal for copying large files to network-attached storage (NAS) devices, streaming high-res video, and sharing assets with colleagues. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to hurry up essential apps for creative work.
Unthrottled performance
ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the newest AMD Ryzen 5000 Series desktop processors, ensuring incredible performance for even the foremost demanding creative tasks. Its 12+2 power stage VRM is prepared for the highest Ryzen chips, and 8pin ProCool auxiliary power connectors with solid pins ensure steady and stable power delivery to those stages.
To keep thermals in check, high-mass heatsinks with extensive surface areas also as high-quality thermal pads transfer heat from the VRM and choke areas. alongside an efficient M.2 heatsink design, ProArt B550-Creator effectively cools both the CPU and SSD for rock-solid system stability and fast storage performance, delivering seamless content-creation workflows.
