| BASIC INFORMATION | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - DRAM Voltage multi-adjustment |
|
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| Basic Information | ||
| Chipset | AMD Promontory B450 | |
| Audio | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
| CPU | Supports AMD AM4 Socket Ryzen 2000, 3000 and 5000 Series Desktop Processors | |
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory. Maximum Memory: 64GB |
|
| Graphics | ||
| Graphics | -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz, - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required), - Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports, - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| LAN | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Internal I/O Ports | - 1 x COM Port Header, - 1 x Power LED and Speaker Header, - 1 x RGB LED Header*, - 1 x Addressable LED Header**, - 1 x AMD Fan LED Header***, - 1 x CPU Fan Connector (4-pin)****, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****, - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******, - 1 x 24 pin ATX Power Connector, - 1 x 8 pin 12V Power Connector, - 1 x Front Panel Audio Connector, - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|

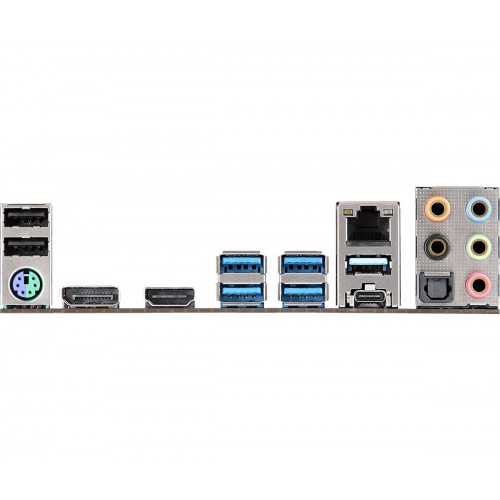

| USB Port | - 2 x USB 2.0 Ports (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

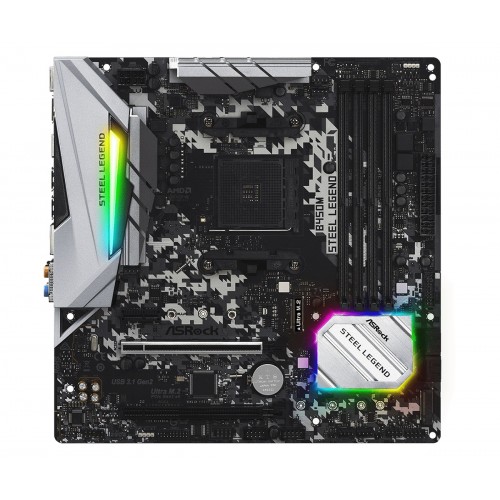

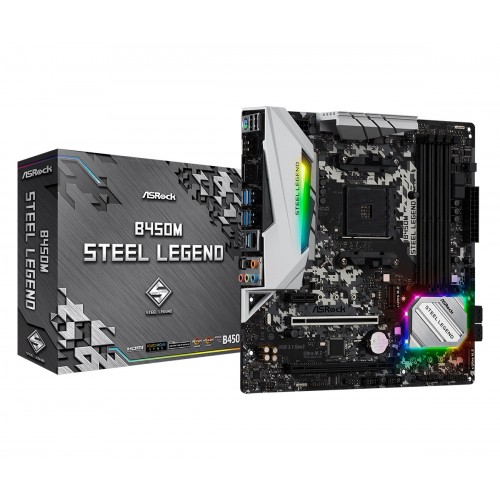

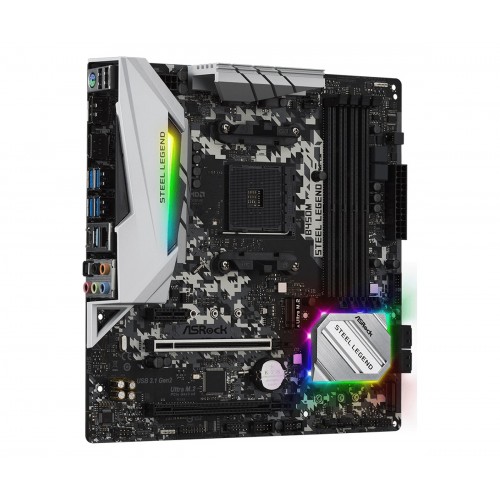

Asrock B450M Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. A motherboard that fulfills every task – with style!
RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
Asrock B450M Steel Legend deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
Dual M.2 For SSD
Two of the world’s fastest M.2 slots. One delivers up to PCIe Gen3 x4 32Gb/s transfer speed, the other one supports SATA3 6Gb/s mode.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. Asrock B450M Steel Legend Provides Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
