| Graphics Card | ||
| Type | GDDR7 | |
| Size | 12GB | |
| Resolution | up to 4K 480Hz or 8K 165Hz with DSC | |
| Core Clock | ||
| Memory Clock | 28 Gbps | |
| BUS Type | 192-bit | |
| CUDA Cores | 6144 |
|

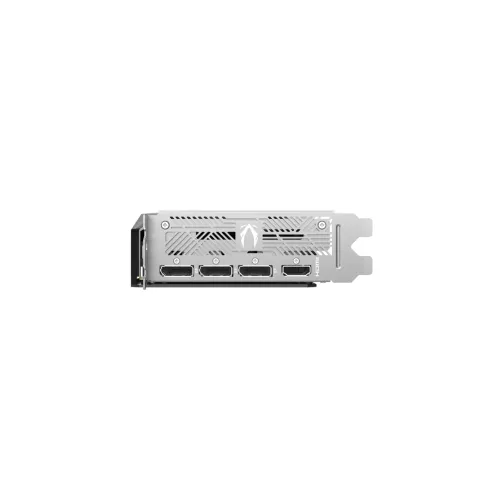

| Display Port | 3 x DisplayPort 2.1b with UHBR20 | |
| HDMI | 1 x HDMI | |
| HDCP Support | 2.3 | |
| Connectors | 1 x 12v-2x6 power input | |
| Recommended PSU | 650W | |
| Consumption | 250W *High power consumption, please carefully read your PSU manual before installation. | |
| Multi Display | Quad Display | |
| DirectX Support | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Others | Support: Windows 11 / 10 (64-bit, April 2018 update or later) Slot Size: 3.5 slot Cooling: IceStorm 3.0 Powered by the NVIDIA Blackwell architecture and DLSS 4 IceStorm 3.0 Advanced Cooling 34% Larger Vapor Chamber BladeLink Fans Reinforced Metal Mid-Frame FREEZE Fan Stop, Active Fan Control 2.0, Dual BIOS SPECTRA 2.0 RGB Lighting SPECTRA LINK Lighting Sync port Metal die-cast Backplate Bundled with GPU Support Bracket All-new FireStorm Utility |
|
| Warranty | 3 Years | |

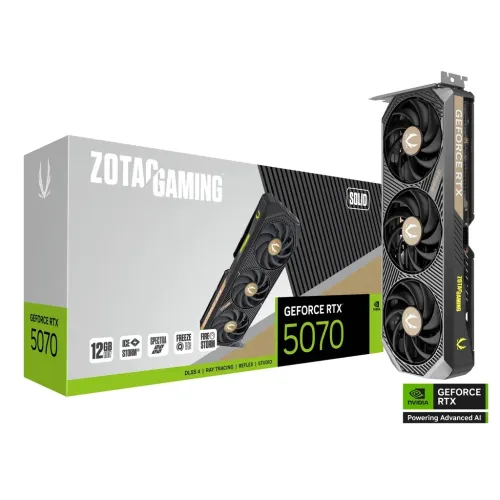

The ZOTAC GAMING GeForce RTX 5070 SOLID is a high-performance graphics card designed for users who prioritize structural durability and thermal overhead. Built on the cutting-edge NVIDIA Blackwell architecture, the SOLID series focuses on a "back-to-basics" rugged design that excels in both modern gaming and intensive professional workloads like 3D rendering and video editing.
True to its name, the SOLID edition features a reinforced physical build. It utilizes the IceStorm 2.0 (or 3.0 in some regions) cooling system, which is specifically tuned to maintain peak frequencies without thermal throttling:

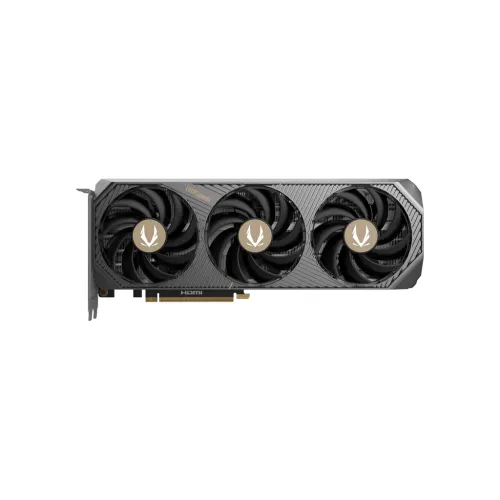

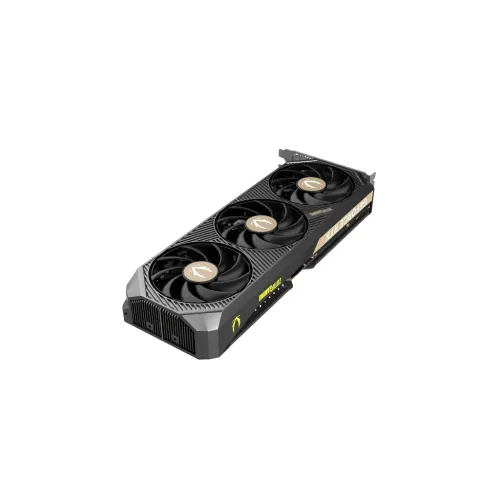

Triple-Fan Setup: Three high-pressure BladeLink fans provide significantly more airflow than the smaller Twin Edge variants.

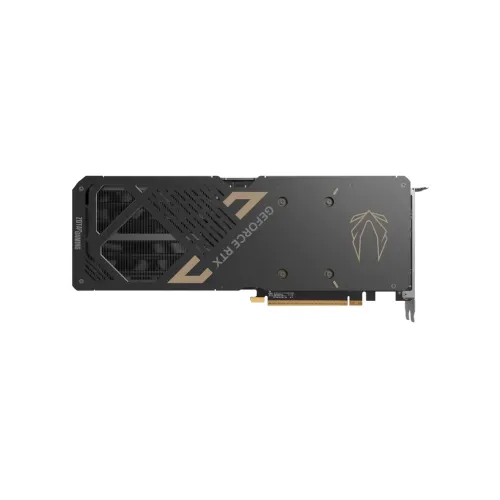

Structural Rigidity: A reinforced metal mid-frame and a full-length die-cast metal backplate ensure the card remains perfectly straight, preventing the PCB sag often seen in larger GPUs.
SFF-Ready Enthusiast Card: Despite its triple-fan array, it maintains a streamlined 304.4mm (12-inch) length and a 2-slot profile, allowing it to fit into many compact "SFF-Ready" cases.
The RTX 5070 SOLID leverages ultra-fast GDDR7 memory to eliminate bandwidth bottlenecks at 1440p and 4K:
CUDA Cores: 6,144
Boost Clock: 2512 MHz
Memory: 12GB GDDR7 on a 192-bit bus.
Bandwidth: A massive 672 GB/s (28 Gbps effective speed).
Interface: PCIe 5.0 x16, providing future-proof throughput for next-gen motherboards.
With a 250W TDP, the SOLID requires a 650W PSU and a single 12V-2x6 (16-pin) power connector. It features a Power Safety Light to alert you if the cable isn't fully seated. Supported by DLSS 4 and 4th Gen Ray Tracing cores, it delivers transformative frame rates through AI-powered neural rendering.
