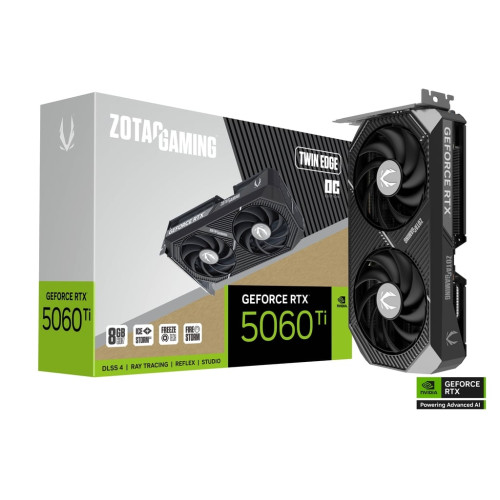

About ZOTAC GAMING GeForce RTX 5060 Ti Twin Edge OC

The ZOTAC GAMING GeForce RTX 5060 Ti Twin Edge OC is a compact, factory-overclocked powerhouse built on NVIDIA’s Blackwell architecture. Designed for high-refresh 1080p and mid-tier 1440p gaming, this card marks a significant shift for the 60 Ti series by introducing ultra-fast GDDR7 memory, significantly widening the bandwidth for complex textures and AI workloads.

The "OC" designation indicates a factory-tuned boost clock that pushes the card beyond reference speeds for better out-of-the-box performance:

CUDA Cores: 4,608

Boost Clock: Factory overclocked to 2602 MHz.

Memory: 8GB GDDR7 on a 128-bit bus.

Bandwidth: A massive 448 GB/s (utilizing 28 Gbps memory speeds), providing a much smoother experience in memory-intensive modern titles compared to previous GDDR6 models.

ZOTAC utilizes its refined IceStorm 2.0 cooling system to manage the increased thermal output of the 50-series chips while maintaining a small footprint:

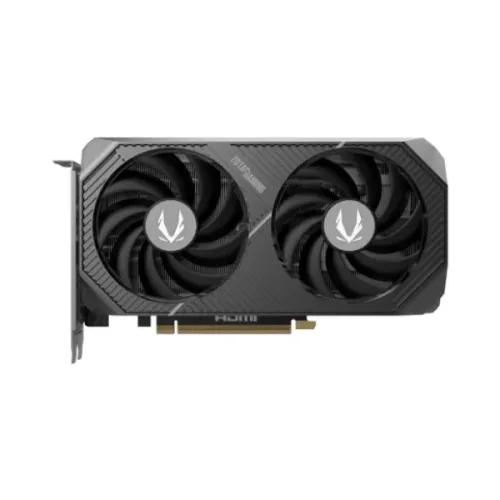

Dual 90mm BladeLink Fans: Feature an interconnected blade design that concentrates airflow and reduces noise.

FREEZE Fan Stop: Ensures total silence during low-load tasks by turning the fans off entirely.

Compact Dimensions: At 220.5mm (8.7 inches) long and a standard 2-slot thickness, it is an "SFF-Ready" card that fits into the vast majority of Mini-ITX and Micro-ATX cases.

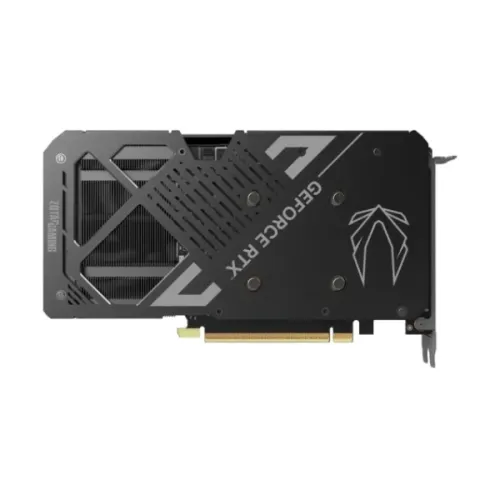

Metal Backplate: A full-length metal backplate provides structural rigidity and a premium aesthetic finish.

The card is future-proofed with the latest interface and display standards:

Interface: PCIe 5.0 x8, optimized for modern motherboard chipsets.

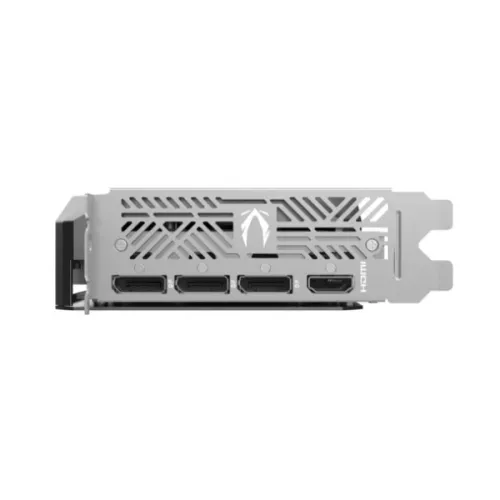

Outputs: 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting 8K at 165Hz or 4K at 480Hz.

Power: It has a 180W TDP and typically requires a single 16-pin (12V-2x6) power connector and a 600W PSU.
