| Basic Information | ||
| Chipset | Intel Z490 Express Chipset | |
| Audio | Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| BASIC INFORMATION | ||
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Slots | 4 x DDR4 DIMM | |
| Memory | Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| LAN | Intel 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper |
|

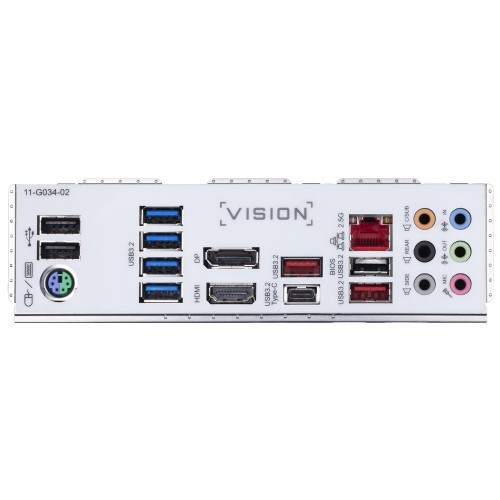

| USB Port | 3 x USB 3.2 Gen 2 ports on the back panel 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |
Maximum memory capacity on the Z490 motherboard is 128GB. After Intel updates the memory reference code, single-slot support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on the High-End Desktop (HEDT) platform. For users who always run out of memory capacity, there is more bandwidth now. Easier and smoother for those memory-intensive applications such as rendering and video editing. NVIDIA QUADRO 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA, and SOLIDWORKS, Siemens NX, PTC Creo, and many more. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest utilities and drivers version. GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one-click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most. he GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image, and backup your BIOS to an image. GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor set your preferred fan speed profile, create alerts when temperatures get too high, or record your system's behavior; these are the possibilities of the System Information Viewer.
